Carton Box Stitching Machine Manual Stitcher Upright Stitcher Mechanical Clutch

MOQ

USD500~1,000/set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Manual Stitcher/ Upright Stitcher

Clutch Type: Mechanical Clutch

Stapling Speed: 250 Times/min

Thickness Of Cardboard: 3/5/7layers

Flat Wire: 16#,17#,18#

Highlight:

Manual Carton Box Stitching Machine

Upright Carton Box Stitching Machine

Mechanical Clutch Carton Box Stitching Machine

Basic Infomation

Place of Origin: Dongguang，China

Brand Name: GERUN

Certification: ISO,CE

Model Number: DXJ

Payment & Shipping Terms

Packaging Details: Plastic film covering or wooden case packaging(choosed)

Payment Terms: T/T

Supply Ability: 300set/month

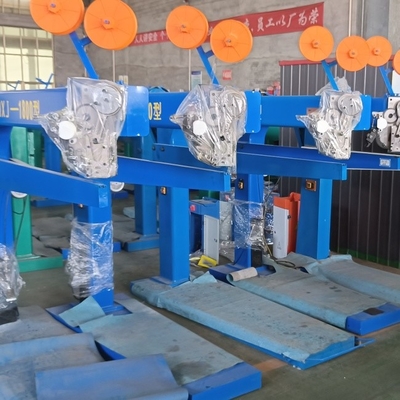

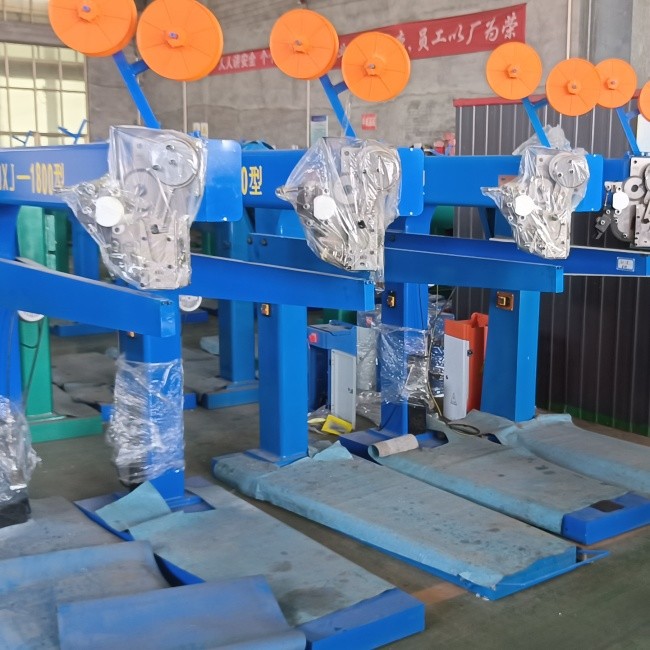

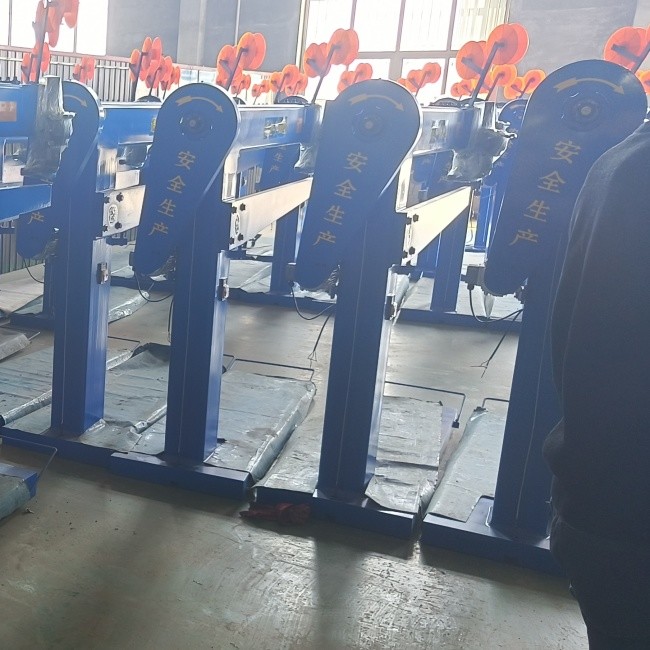

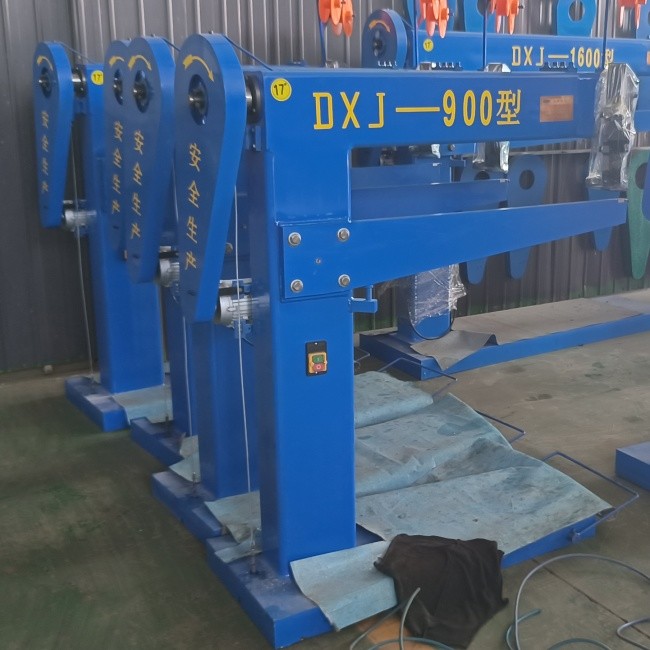

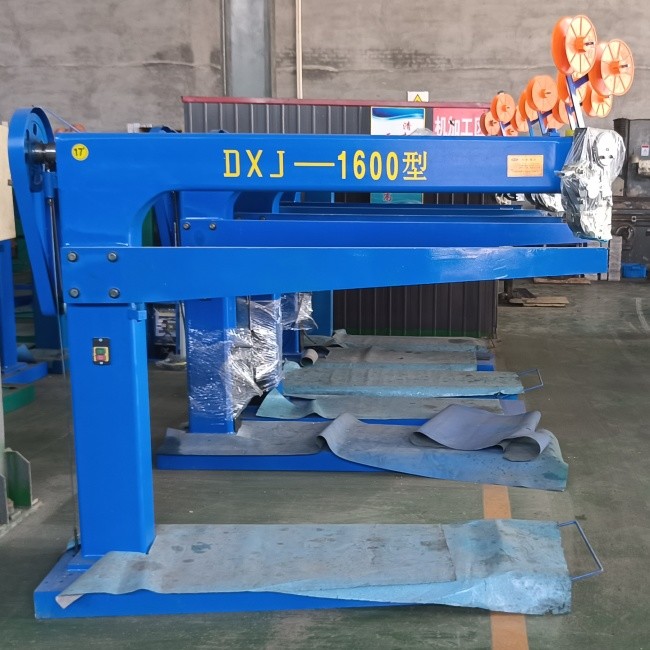

Gallery

Carton Box Stitching Machine Manual Stitcher Upright Stitcher Mechanical Clutch

Product Description

Manual stitcher/ Upright stitcher

A simple and clever machine can accomplish the task of stapling the corrugated box

This machine utilizes a patented design."Split-type movement core"

Equipped with high-quality alloy blades. And the blades can be used on both sides.

The whole machine adopts Mechanical clutch,double eccentric structure,cam transmission,replaceable die,and all connecting rods are equipped with rolling bearing.

Therefore, the whole machine has many advantages: fast speed, smooth running, firm nail bondiing, simple maintenance, low noise and long service life.

Made by careful designing, the DZX series of stapling machine adopts the advantages of the same kinds of products at home and abroad. It has the advantages such as novel appearance, high speed, steady revolving, solid stapling, adopting base mold hard alloy, long using life and so on.

Model	Stapling speed	Thickness of stapling	Length of the arm	Shape size (mm)	weight (about kg)
DZX-900	250/min	3/5/7lay	900	1400x600x1760	400
DZX-1200	250/min	3/5/7lay	1200	1700x700x1820	600
DZX-1400	250/min	3/5/7lay	1400	1900x700x1820	800
DZX-1600	250/min	3/5/7lay	1600	2100x700x1820	900
DZX-1800	250/min	3/5/7lay	1800	2300x700x1820	1000
DZX-2000	250/min	3/5/7lay	2000	2500x700x1820	1100
DZX-2200	250/min	3/5/7lay	2200	2700x700x1820	1200
Specification of the flat wire: 16#,17#,18#
