Durable Semi Automatic 3 Ply Carton Box Stitching Machine with Double Servo Motor Corrugated Box Stitcher

1 sets
MOQ
To be negotiated
Price
Durable Semi Automatic 3 Ply Carton Box Stitching Machine with Double Servo Motor Corrugated Box Stitcher
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Warranty: 1 Year
Function: Carton Box Stitching Machine
Origin: Hebei Province
Condition: NEW
Type: Nail Machine,Corrugated Box Stitching Machine/carton Packing Machine Prices
Voltage: 220/380V Or According To Customers Need
Usage: Stitching Box,For Carton Box Stapling,Cardboard Stitcher Machine,Corrugated Carton Stitching Machine
Name: Corrugated Carton Box Stitching Machine
Product Name: Stitcher Machine,Stitching Machine
Automatic Grade: Semi-Automatic
Highlight:

Semi Automatic Carton Box Stitching Machine

,

cardboard Carton Box Stitching Machine

,

cardboard stitching machine
Basic Infomation
Place of Origin: Hebei province,China
Brand Name: GERUN
Certification: CE,ISO
Model Number: 2000
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10 sets/month
Product Description

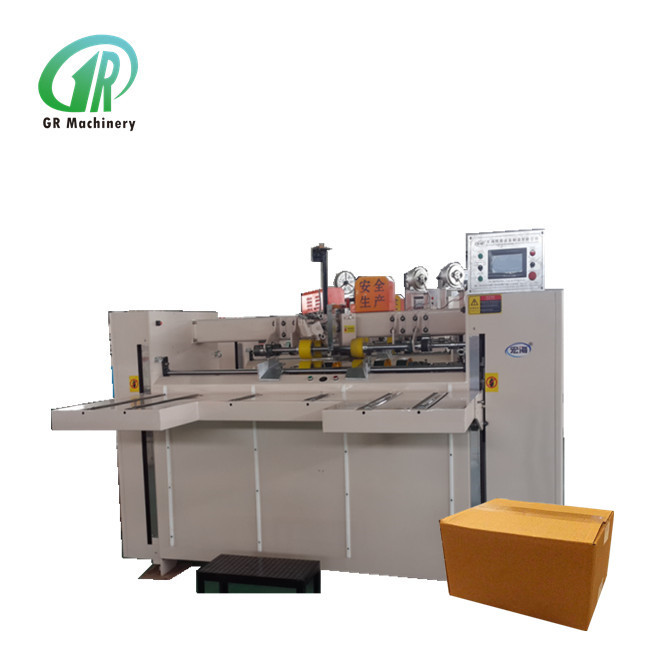

Semi-Automatic Corrugated Carton Box Stitching Machine (3-Ply)

The semi-automatic carton box staple machine uses stitching wire to assemble corrugated boxes. It features dual servo motor control and a touch screen for quick size adjustment and order changes. The machine supports single nail, double nail, and reinforced nail stitching patterns to meet the varied requirements of different clients.

Semi-automatic corrugated carton box stitching machine with touch screen control panel
Key Features
  1. One-minute quick order change.
  2. Easy operation — no experienced worker required.
  3. Single nail, double nail, and reinforced nail modes are available and can be shifted between easily.
  4. A counter in the feeding section sets the packing quantity for convenient packaging.
  5. Generally applicable to three-layer and five-layer cardboard boxes; seven-layer boxes require a customized configuration.
  6. Delivers high speed and high efficiency.
  7. Dual servo motor model with PLC controller for easy operation.
Technical Parameters
Parameter Model 4800 Model 5400 Model 6000
(A+B)*2 mm Max. Paper Size 4800 5400 6000
(A+B)*2 mm Min. Paper Size 1060 1060 1060
A mm Max. Carton Length 1200 1350 1500
A mm Min. Carton Length 350 350 350
B mm Max. Carton Width 1200 1350 1500
B mm Min. Carton Width 180 180 180
(C+D+C) mm Max. Paper Height 2500 2500 2500
(C+D+C) mm Min. Paper Height 400 400 400
C mm Max. Cover 560 560 560
C mm Min. Cover 50 50 50
D mm Max. High 3000 3000 3000
D mm Min. High 70 70 70
E mm Max. 40 40 40
Nailing Spacing (mm) 20–120 30–150 30–150
QTY of Nails (mm) 2–99 2–99 2–99
Speed (times/min) 600 600 600
Weight of Machine (T) 3 3.5 4
Detailed Images

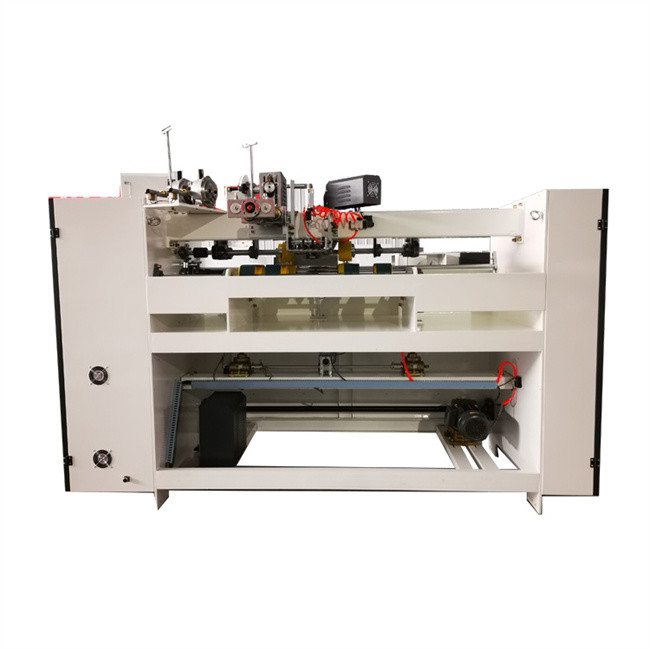

Close-up of the stitching head and wire feeding mechanism on the carton box stitching machine Touch screen control panel of the semi-automatic carton stitching machine Feeding section with counter for setting packing quantities on the carton stitching machine Dual servo motor and PLC controller assembly of the corrugated carton stitching machine

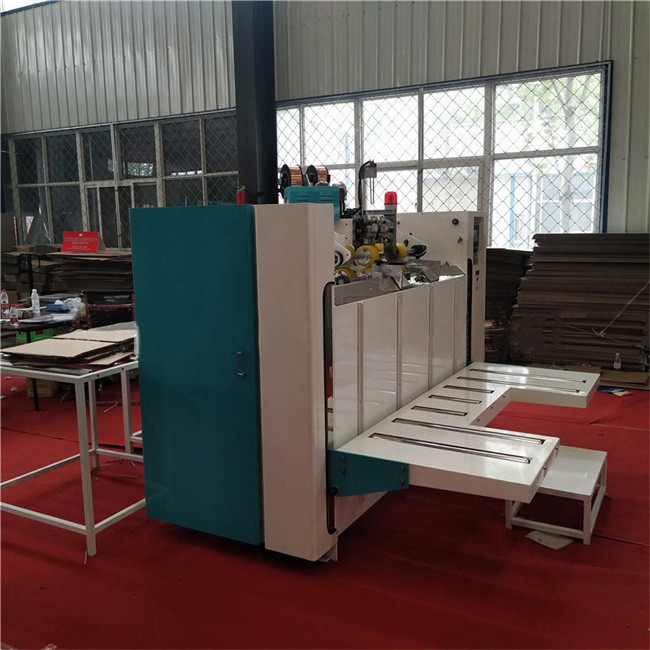

Full view of the semi-automatic corrugated carton box stitching machine in operation
Packing and Shipping

The machine is packaged with moisture-proof and shock-proof materials, making it suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.

Moisture-proof and shock-proof packaging of the carton stitching machine prepared for shipping
