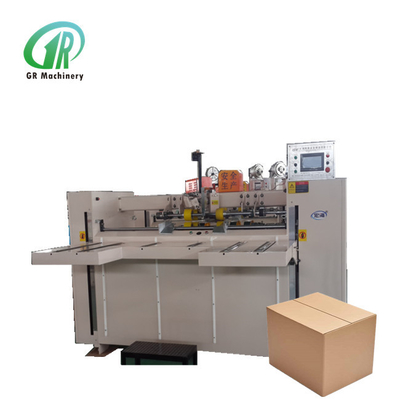

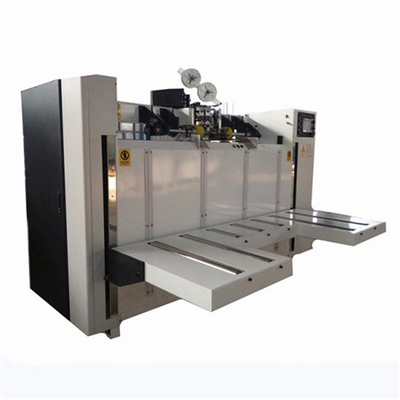

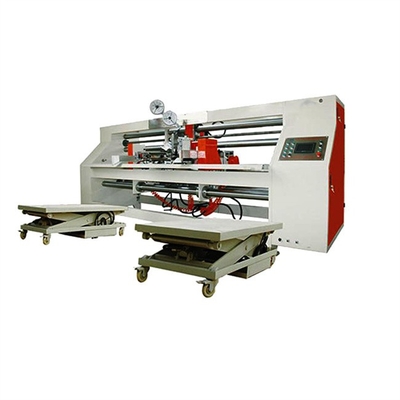

Semiauto Corrugated Sheets Stitcher Stapler Box Stitching Machinery
Semi auto carton box staple machine use the stitching wire to make corrugated box. Double servo motor control.
Touch screen adjust the size to change the order. Easy adjust and operate.The machine can make
Single nail /, double nail// and strengthen nail . it can meet the different requirements of different clients.
FEATURES:
1. One minute quick order change.
2. Easy operation , no need experience worker.
3. Single nail /, double nail// and strengthen nail // / / / // are available ,can be shifted to each stitching mode easily.
4. Counter in the feeding part can set the number of the packing, easy for packing.
5. The machine can be generally applied to the three-layer or five-layer cardboard boxes. As for the seven-layer boxes, the equipment needs to be customized
6. It takes the advantages of high speed and high efficiency.
7. Double Servo motor model, PLC controller, easy operation.
| Model |
SCS-2000 |
Max sheet size |
1515×2460mm |
| Speed |
600 Nail/min |
Min sheet size |
300×606mm |
|
Nail Span
|
30-100mm(Arbitrary adjustments) |
Power |
6HP |
| Number of nail |
1-99 |
Feeding height
|
900mm |
| Nail type |
Single, double and reinforced nail |
Machine size
|
2800mm*2600mm |
| nail line specification |
2.0mm×(0.65~0.75mm) |
Weight |
2000KGS |
Main advantage feature:
1. stitching whatever the carton have cover or not
2. nail span can set up directly in the touch screen
3. auto sdjudt paperboard thickness
4. one minute quick order change
5. easy to operation ,no trianing is necessary
6. it is a high cost-performance machine
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
