Semi Automatic 2600mm Double Servo Drive Carton Box Stitching Machine Corrugated Box Stitcher

1 sets
MOQ
To be negotiated
Price
Semi Automatic 2600mm Double Servo Drive Carton Box Stitching Machine Corrugated Box Stitcher
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Function: Carton Box Stitching Machine
Condition: NEW
Type: Nail Machine,Corrugated Box Stitching Machine/carton Packing Machine Prices
Voltage: 220/380V Or According To Customers Need
Usage: Stitching Box,For Carton Box Stapling,Cardboard Stitcher Machine,Corrugated Carton Stitching Machine
Name: Corrugated Carton Box Stitching Machine
Automatic Grade: Semi-Automatic
Application: Machinery & Hardware,Commodity
Highlight:

2600 carton box stapler machine

,

380v carton box stapler machine

,

double servo drive carton stapler machine
Basic Infomation
Place of Origin: Hebei province,China
Brand Name: GR
Certification: CE,ISO
Model Number: 2600
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10 sets/month
Product Description
Product Overview

The Semi Automatic 2600 Industrial Carton Box Stapler Machine uses stitching wire to assemble corrugated boxes. It features dual servo motor control and a touch screen interface for quick size adjustment and order changes. The machine supports single nail, double nail, and reinforced nail stitching modes to meet the diverse requirements of different clients.

Key Technical Advantages
  1. Mitsubishi dual servo drive delivers precise accuracy, reduces mechanical transmission parts, and effectively lowers the mechanical failure rate.
  2. Weilun touch screen operation allows fast and easy changes to parameters including nail distance, number of nails, nail type, and back panel.
  3. The entire control system uses the Japanese Omron PLC control system.
  4. The rear electric baffle is driven by a stepping motor for accurate sizing and more convenient, quicker size adjustment.
  5. All contactors in the control box are Simens branded.
  6. Photoelectric and proximity switches are sourced from the Omron brand.
  7. The bottom mold and blade are made of Japanese tungsten steel.
  8. The complete set of nail heads is made of special steel and precision machined by computer.
  9. Single nail, double nail, and reinforcing nail can be completed in one pass, meeting different customer requirements for nail types.
  10. Carton size changes and carton nail distance adjustments can be completed within one minute, saving time and simplifying operation.

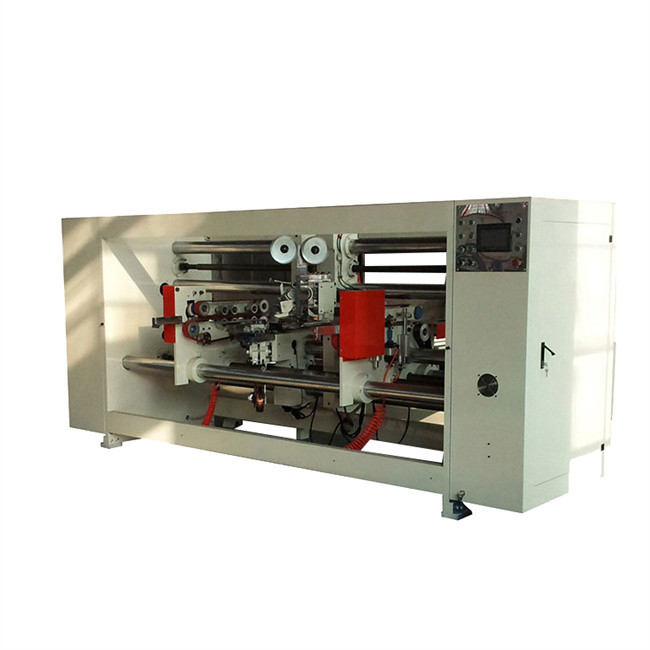

Semi Automatic 2600 carton box stapler machine with dual servo drive and touch screen control panel
Features
  • One-minute quick order change.
  • Easy operation — no experienced worker required.
  • Single nail, double nail, and reinforced nail modes are available and can be shifted easily between each stitching mode.
  • A counter in the feeding part can set the packing quantity for easy packing.
  • The machine can be generally applied to three-layer or five-layer cardboard boxes. For seven-layer boxes, the equipment needs to be customized.
  • High speed and high efficiency.
  • Dual servo motor model with PLC controller for easy operation.
Technical Parameters
Model SCS-2000 Max Sheet Size 1515 × 2460 mm
Speed 600 Nail/min Min Sheet Size 300 × 606 mm
Nail Span 30–100 mm (arbitrary adjustments) Power 6 HP
Number of Nails 1–99 Feeding Height 900 mm
Nail Type Single, double, and reinforced nail Machine Size 2800 mm × 2600 mm
Nail Line Specification 2.0 mm × (0.65–0.75 mm) Weight 2000 KGS
Detailed Images

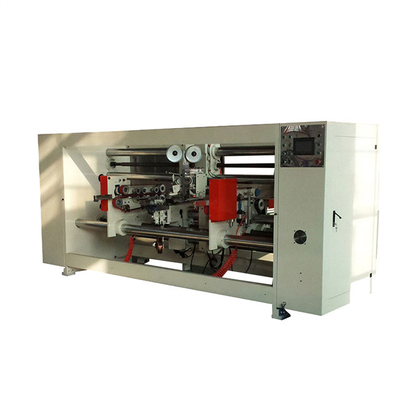

Close-up view of the carton box stapler machine stitching head and nail assembly

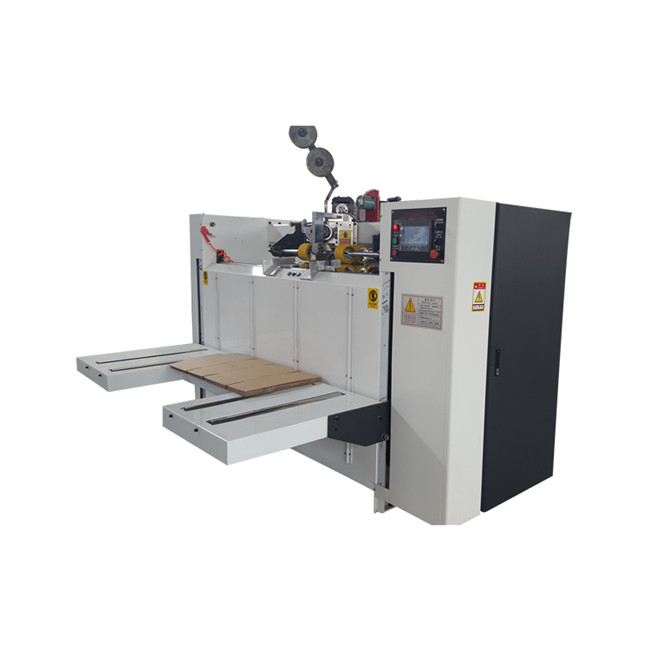

Detailed view of the stapler machine feeding section and control panel

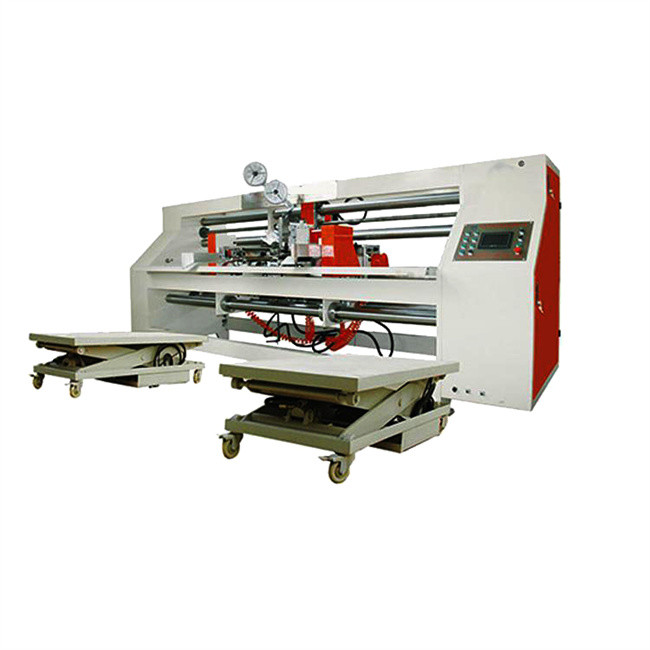

Semi automatic carton box stapler machine in operation with corrugated board feeding
Packing and Shipping

The machine adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.

Carton box stapler machine packaged with moisture-proof and shock-proof materials for shipping
Industrial carton box stapler machine loaded for long-distance transportation
