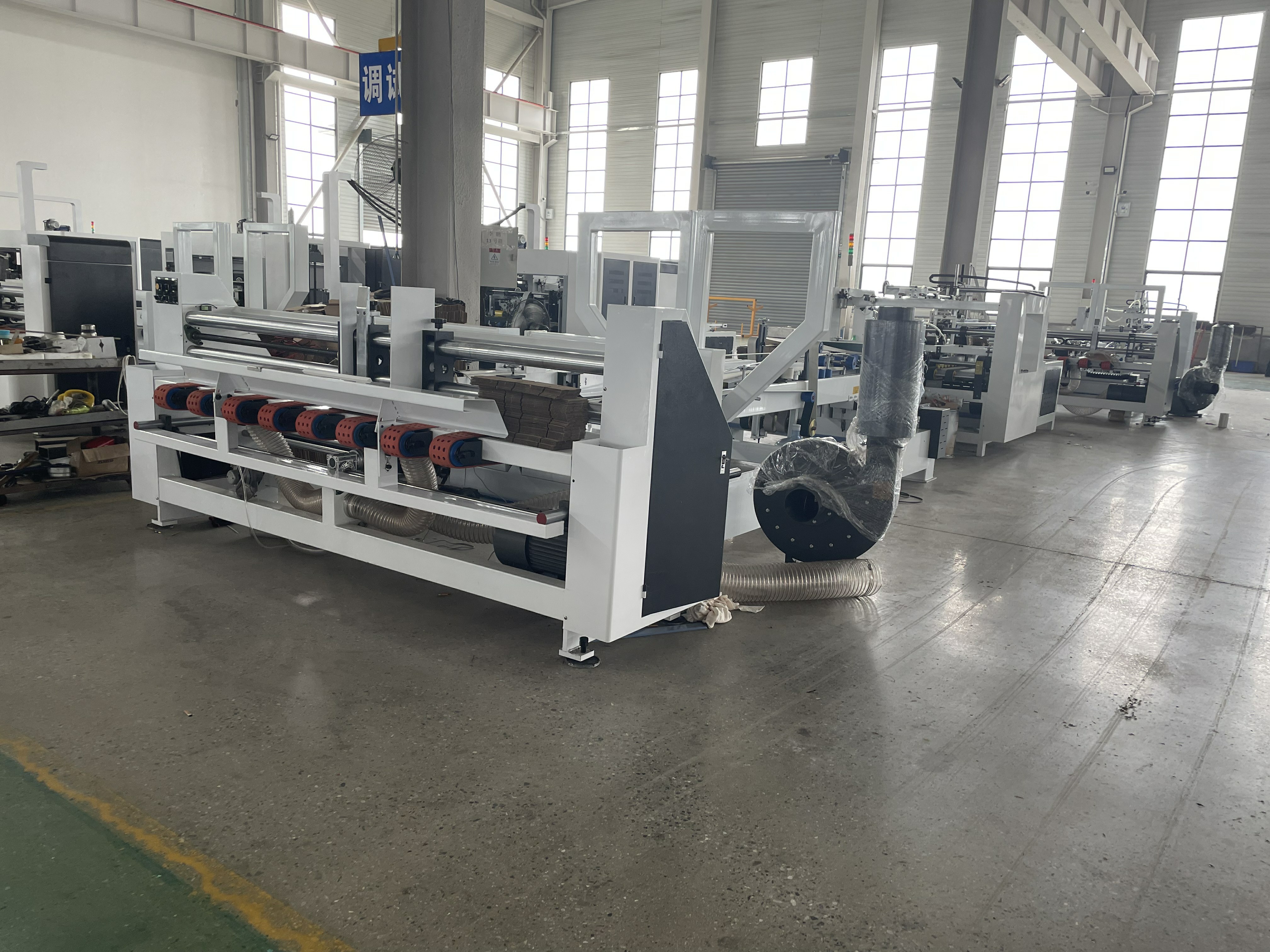

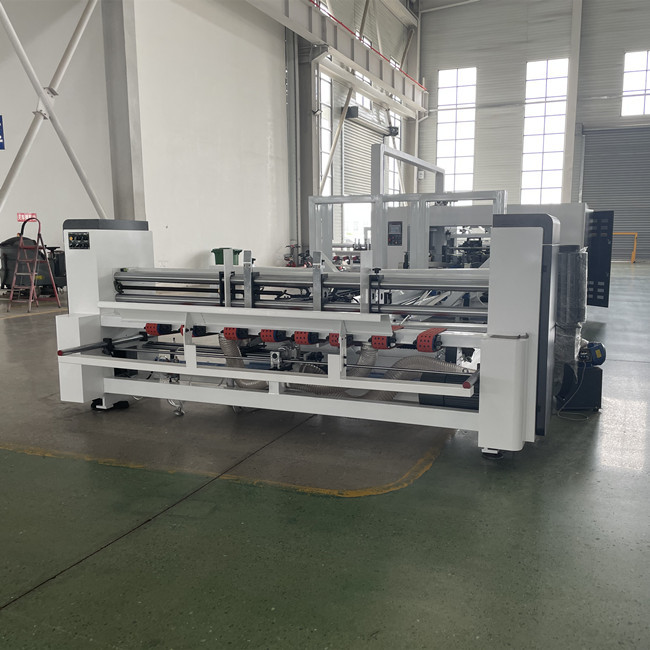

2600 Model High Speed Automatic Stitching And Gluing Machine
◆The machine full computer control automatic tuning single,easy to operate,simple;Can store 1000 nail single.
◆Screw mixer bottomleess with cover box can also be(when ordering);
◆3-5 minuters to adjust size,simple and quick;
◆Nail head power for the servo motor,mechanical speed:800 nail/minuties.
◆Pieces paper department adopts the vacuum adsorption front belt paper make sure the carton is not skewed ;
The machine front feeder belts,belt height can be adjusted separately,increase service life;
◆Pieces into the paper with side lapping device can send paper neatly smooth.
◆Mixer feeding machine adopt servo motor control,to ensure that the nail from the stable and accurate;
◆This machine design have box plastic function,ensure no scissors in nailing,neatly not skew;Before and after the
machine to ensure the scissors mouth can't more than plus or minus 2 mm.
◆In pieces the machine can be double screw, single screw, strengthen nails, double and screw and single head
screw onetime complition ;
◆The machine adopts computer screen operation,and display the fault description;
◆In pieces the machine can be nailed three layer, five layer carton(statement in advance with order)is required
for a seven layer;
◆An automatic counting stacking quantitative output in pieces the machine finally.
◆Pieces of native baling part for matching.
◆Mixer machine during normal operation appear skewed,will automatically stop.
|
maximum(A+B)*2
|
3000mm
|
the minimum length A
|
250mm
|
|
minimum(A+B)*2
|
900mm
|
the maximum height D
|
1150mm
|
|
maximum(C+D+C)
|
1200mm
|
the minimum height D
|
250mm
|
|
minimum(C+D+C)
|
350mm
|
nail tongue width E
|
35--40mm
|
|
the minimum roll cove C
|
25mm
|
Mechanical length
|
19000mm
|
|
the biggest shake cove C
|
560mm
|
Machine width
|
4450mm
|
|
the maximum width B
|
1320mm
|
Machine weight(T)
|
25
|
|
the minimum width B
|
200mm
|
speed(nail/min)
|
800
|
|
maximum length
|
1320mm
|
order
|
1--99
|
|
pitch of nails
|
30--80
|
Nailing speed
|
120m/min
|
|
sticky box speed
|
200m/min
|
power(kw)
|
60
|
|
Nail head speed
|
800 nail/min
|
|
The minimum thickness of the board
|
4mm
|
|
The maximum thickness of the board
|
12mm
|
|
U nail internal width
|
12mm
|
|
Flat wire specifications
|
17#(2.0*0.75)
|
|
Nail box inclination
|
45
|
|
The minimum distance of nailing
|
30mm
|
|
The motor power
|
12kw
|
Main Configuration
★French Schneider original imported dual servo drive, accuracy, mechanical transmission part reduction, can effectively reduce the failure rate of machinery.
★Weilan touch screen operation, parameters (nail distance, nail number, nail type, rear baffle) convenient and fast change.
★The whole control system adopts Japanese Omron PLC control system.
★Rear electric baffle, driven by stepper motor, accurate size, more convenient to change size.
★The full contactor in the control cabinet adopts Mitsubishi brand.
★The optoelectronic and proximity switches use schneider brand.
★Bottom die, blade made of Japan tungsten steel (wear - resistant).
★The whole group of nails are all made of special steel, computer gong precision machining.
★Can suit the different requirements of different customers.
★It takes only one minute to change the size of the carton and adjust the stitching distance of the carton, greatly saving time and convenient operation.
★The front feed unit counts automatically, and the feed table is equipped with photoelectric induction device, which rises automatically when feeding.
★The back section has an automatic counting function, and the finished sheets can be sent to the end of the feeding machine in stacks according to the set number (1-99), which is convenient for packing and strapping. ★Mechanical speed: 450 nails/min.
★Nail distance :200-260mm adjustable.Electric adjustment of press rubber wheel gap.
★Protection function of electrical isolating transformer of whole machine;
★Front and back baffle configuration, can order carton and small cardboard box, color box.
★Japanese special die steel forging for head punch body.
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
