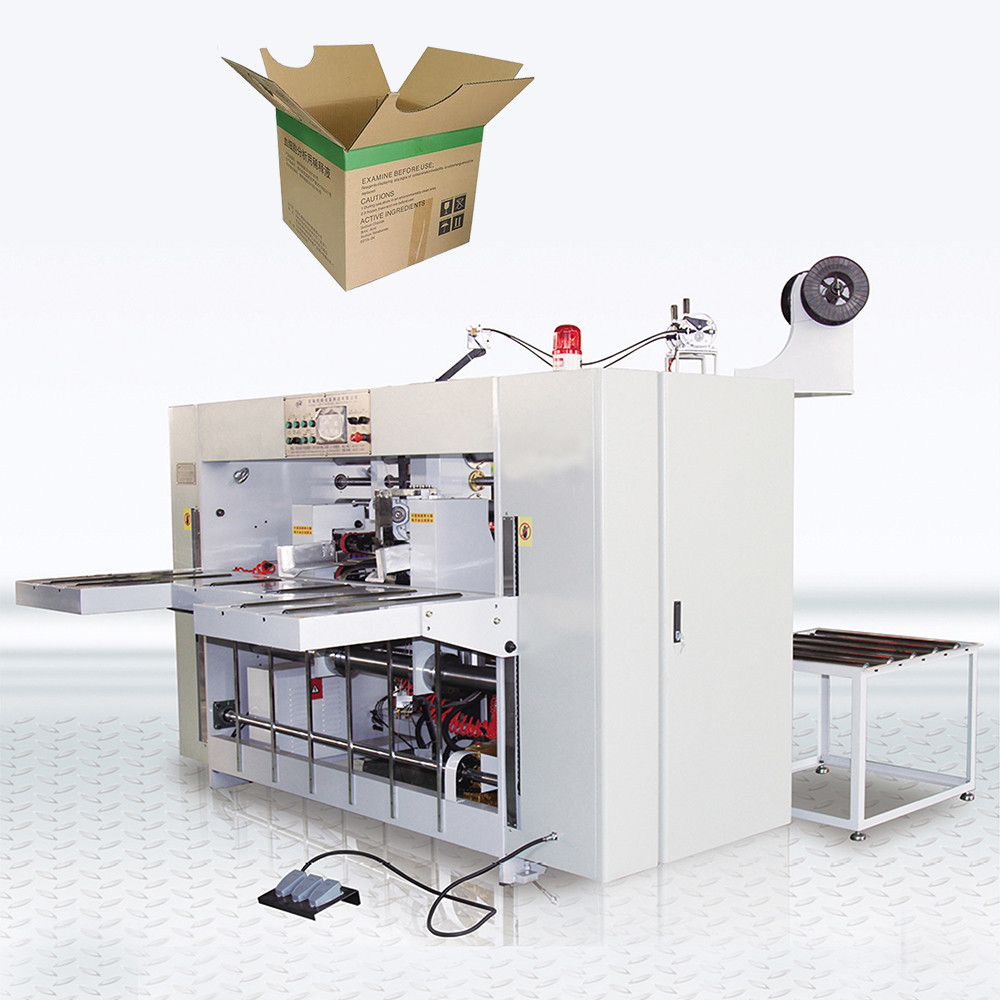

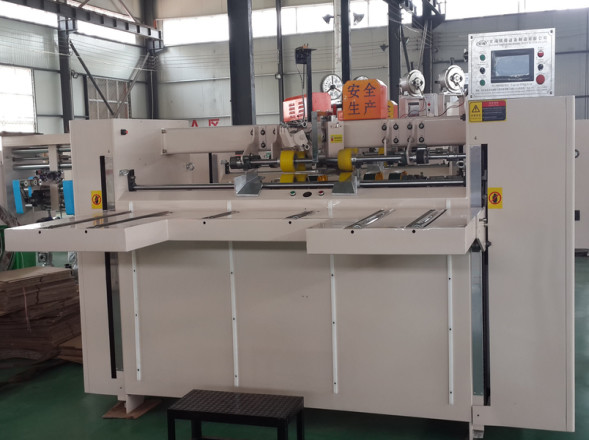

High Speed Semi Auto Stitching Machine Double Servo Bdj-2000b

BDJ-2000B High Speed Semi-Auto Stitching Machine Double Servo

Major parts and functional specification:

BDJ-2000B High Speed Semi-Auto Stitching Machine Double Servo

• Double servo motor adopt Schneider brand from France, high precision , less mechanical drive part, can decrease failure rate.
• Touch screen adopt WEINVIEW brand, It is convenient and efficient to change the parameter,such as distance of staple,number of staple, type of staple and back shield.
• The whole control system adopt OMRON PLC control system.
• Back motor-driven baffle adopt steeper motor drive, accurate size and easier to change the size.
• All the contactors in control cabinet adopt SIEMENS brand.
• Bottom die and blade are made of Japanese tungsten steel.(wearproof)
• The whole nail head adopt special steel and CNC precision machining.
• It can be used in single staple, double staples and strengthen staples(strengthen staples mean two ends are double staples and center is single staple) completed at one time.
• It only takes one minute to change size of carton box and distance of staple, easy to operate and save time greatly.
• It can stitch with or without cover carton box.( Customer should explain if need to stitch no cover carton box.)
• Front end feeding department counting automatically, equipped with photoelectric sensor in the feeding table, which will be rise when feeding paper.
• Back part has function of automatic counting, finished product will be sent to end of machinery as setting, convenient for banding.
• Mechnical speed:600nails/min
• Staple distance:30-120mm ,adjusts arbitrary.
• Adjust space of paper-press wheel automatically.
• Effective height for working table:900mm.
• Overall dimension: 2.8mx1.7mx1.8m.
• Machine weight: 2Ton
• Overall dimension: 2.8mx1.7mx1.8m.
• automatic feed wire, 20kg, save time.
• front and back double baffle, can stitch without cover carton box and small carton box as well as colorful carton box.
• This machine ordering adjusting and can store 100 orders.

1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.

2. Transportation and various types of weather conditions. A full set of maintenance and operation.

3. Manuals is included.
