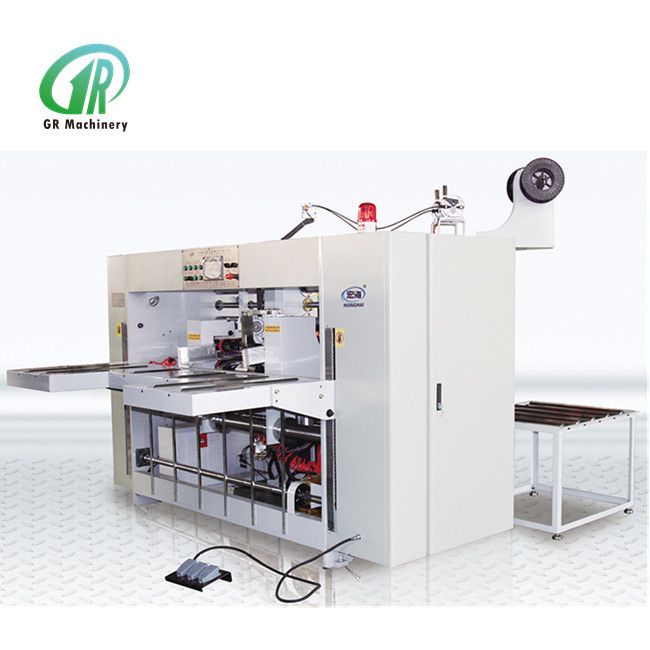

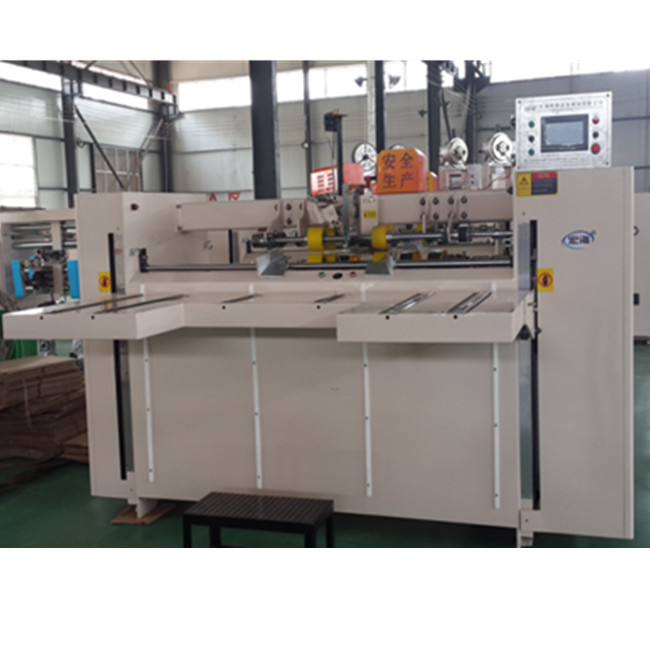

Semi Automatic Carton Box Stitching Machine 2000 Model Double Servo Single Piece
Major parts and functional specification:
1. Double servo motor adopt Schneider brand from France, high precision , less mechanical drive part, can decrease failure rate.
2. Touch screen adopt WEINVIEW brand, It is convenient and efficient to change the parameter,such as distance of staple,number of staple, type of staple and back shield.
3. The whole control system adopt OMRON PLC control system.
4. Back motor-driven baffle adopt steeper motor drive, accurate size and easier to change the size.
5. All the contactors in control cabinet adopt SIEMENS brand.
6. Bottom die and blade are made of Japanese tungsten steel.(wearproof)
7. The whole nail head adopt special steel and CNC precision machining.
8. It can be used in single staple, double staples and strengthen staples(strengthen staples mean two ends are double staples and center is single staple) completed at one time.
9. It only takes one minute to change size of carton box and distance of staple, easy to operate and save time greatly.
10. It can stitch with or without cover carton box.( Customer should explain if need to stitch no cover carton box.)
11. Front end feeding department counting automatically, equipped with photoelectric sensor in the feeding table, which will be rise when feeding paper.
12. Back part has function of automatic counting, finished product will be sent to end of machinery as setting, convenient for banding.
13. Mechnical speed:600nails/min
14. Staple distance:30-120mm ,adjusts arbitrary.
15. Adjust space of paper-press wheel automatically.
16. Effective height for working table:900mm.
17. Overall dimension: 2.8mx1.7mx1.8m.
18. Machine weight: 2Ton
19. Automatic feed wire, 20kg, save time.
20. Front and back double baffle, can stitch without cover carton box and small carton box as well as colorful carton box.
21. This machine ordering adjusting and can store 100 orders.
Product Detail:
Technical Parameter:
| Product Name |
Semi Automatic Carton Box Stitching Machine Double Servo |
| Category |
Corrugated Carton Folder Gluer Machine |
| Model |
2000 |
| Max Sheet Size |
3000x3840mm |
| Min Sheet Size |
250x740mm |
| Speed |
600times/min |
| Machine Width |
3500x15500mm |
| Machine Weight |
2Tons |
Our company
Product packaging
FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
