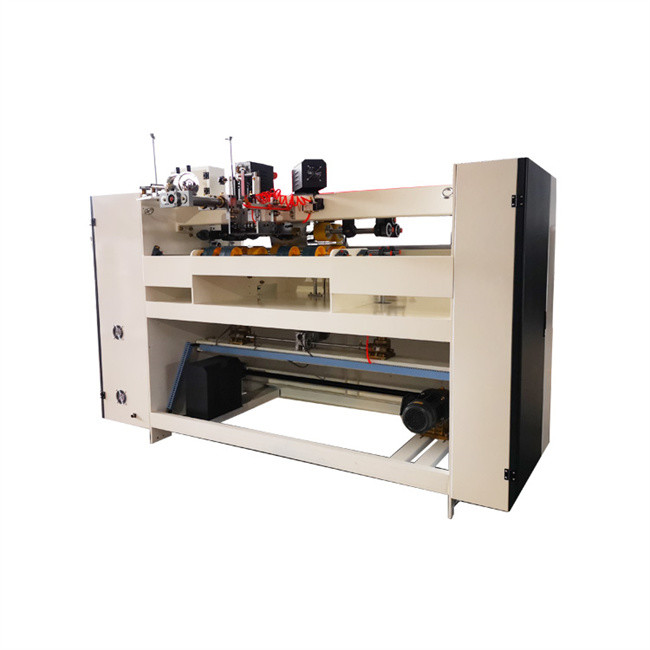

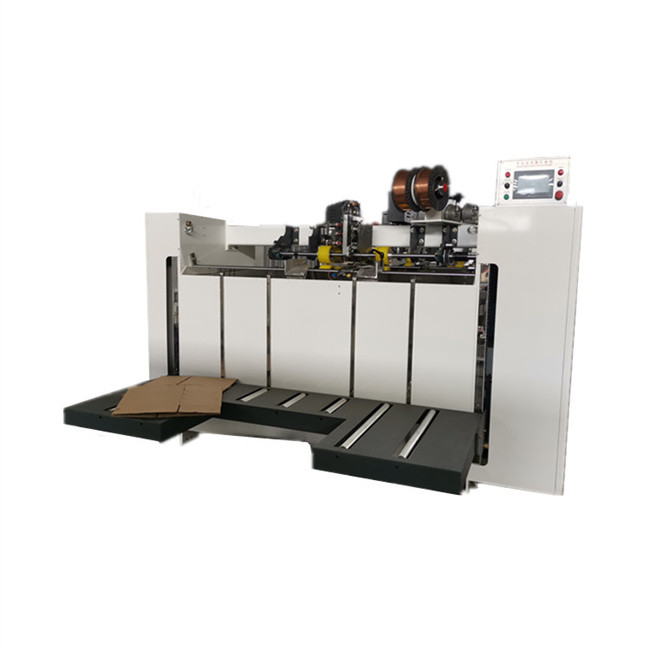

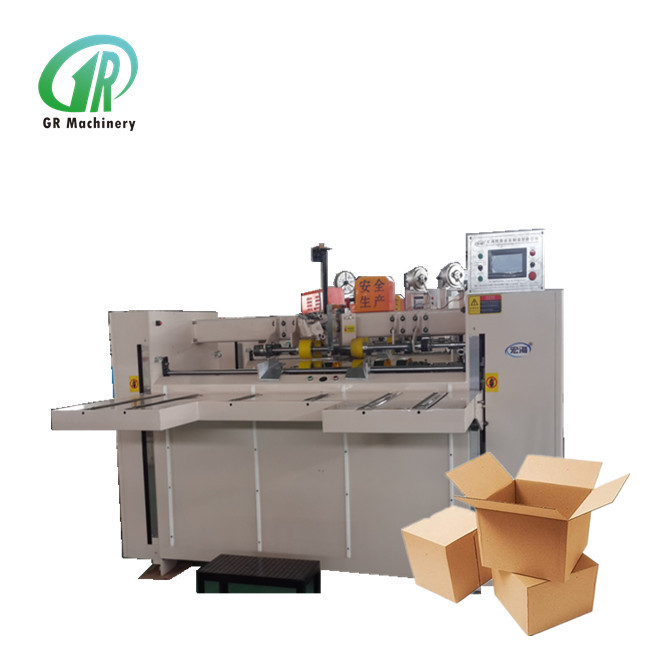

Semi Auto Cardboard Box Stapler Carton Corrugated Box Stitcher Nailing Machine
Semi auto carton box staple machine use the stitching wire to make corrugated box. Double servo motor control.
Touch screen adjust the size to change the order. Easy adjust and operate.The machine can make
Single nail /, double nail// and strengthen nail // / / / // . it can meet the different requirements of different clients.
FEATURES:
1. One minute quick order change.
2. Easy operation , no need experience worker.
3. Single nail /, double nail// and strengthen nail // / / / // are available ,can be shifted to each stitching mode easily.
4. Counter in the feeding part can set the number of the packing, easy for packing.
5. The machine can be generally applied to the three-layer or five-layer cardboard boxes. As for the seven-layer boxes, the equipment needs to be customized
6. It takes the advantages of high speed and high efficiency.
7. Double Servo motor model, PLC controller, easy operation.
| Product name |
Semi-auto Box Stitching Machine Carton Box Stitcher Machine |
| speed |
60pcs/min |
| Color |
same like in the picture |
| Motor type |
Servo motor |
| Function |
High Effieciency |
| Weight |
3T |
| Packing material |
Plastic, Paper |
| Machine name |
Box Stitching Machine |
Usage and Characteristics of corrugated stitching machine
1. Single, double and strengthened nail are available
2. Nailing from 30-120 mm, auto-calculated; serve motor controls the nailing from by Delta, Japan.
3. Touch screen control by Taiwan
4. PLC system and electrical devices by Siemens, Germany; photoelectricity switch and limit switch made in Korea, high quality assured; the motor and reducer are made in Taiwan.
5. The reamer of pinhead is made by tungsten steel of Germany. Machine is exactitude by special heat – treatment and numerical control system
6. All of the bearing is made by Brand of Germany
7. Full electrical controlled and it can be changed the size in one minute and handle easily without the relevant experience.
8. Nailing speed: 400 nails /min
9. Number of Nails: 1-99
10. Automatic counter in the latter part ; deliver paper boxes in lot as set for strapping .
11. Total power: 6.3kw
12. Paper height: 900 mm
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
