MY1500 High Speed Full Automatic Die Cutting And Creasing Machine

1 sets
MOQ
To be negotiated
Price
MY1500 High Speed Full Automatic Die Cutting And Creasing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Type: Automatic
Speed: 0-80 Pieces/min
Condition: New
After-sales Service Provided: Online Support,Video Technical Support
Usage: Die Cutting Paper
Color: White,Grey
Packaging Type: Plastic, Wood
Basic Infomation
Place of Origin: Hebei,China
Brand Name: GR
Certification: CE,ISO
Model Number: MY1500
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 40-50 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10 sets/month
Product Description
MY1500 High Speed Full Automatic Die Cutting And Creasing Machine
Product Overview

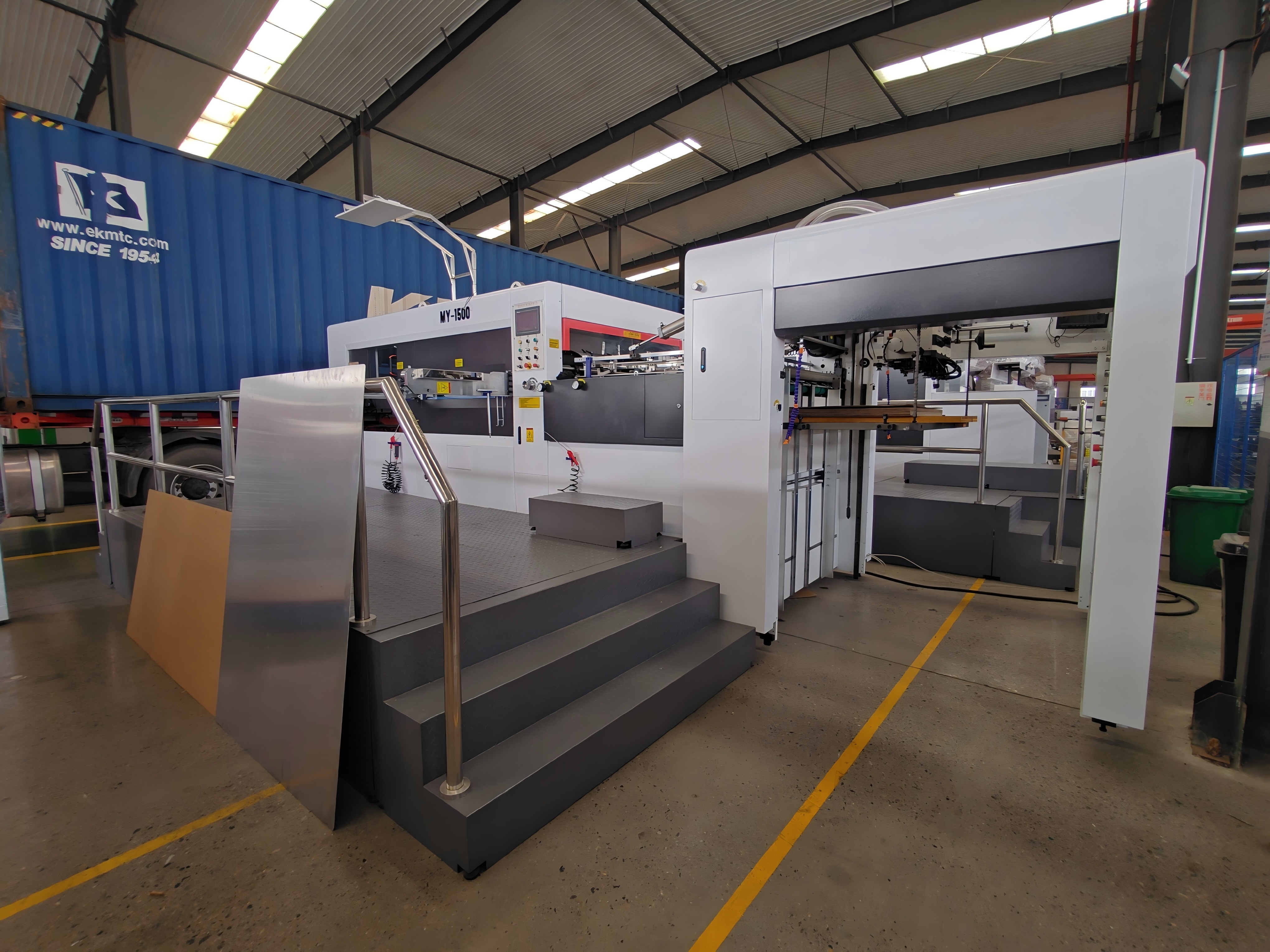

MY1500 High Speed Full Automatic Die Cutting And Creasing Machine
MY1500 High Speed Full Automatic Die Cutting And Creasing Machine 0 MY1500 High Speed Full Automatic Die Cutting And Creasing Machine 1
Key Features
A. Feeding and Collecting Part
  • The extra feeder can process paper and corrugated board, equipped with BECKER vacuum pump
  • Central monitor installation allows easy viewing of the back section
  • Pre-paper pile design and special pneumatic bench save significant time
  • Non-stop sampling system enables board accuracy checks without machine stoppage
B. Positioning Part
  • Additional brush wheels and pressing wheels for thin paper and corrugated board operation
  • Advanced push and pull lay registration ensures die cutting precision
  • Rikko light front lay detection system prevents slanted paper from entering main body
C. Main Body
  • Automatic centralized lubricating system with main chain lubrication controlled via HMI
  • Patented shock absorption system prolongs main body life and increases pressure capacity
  • Taiwan-made intermittent gearbox ensures accurate registration and reduces gripper attack
D. Die-cutting Part and Delivery System
  • Diecutting chase accurately fixed by pneumatic lock system
  • Diecutting plate insertion and removal via air floating device
  • Electric clutch system of main chain ensures steady operation during high-speed stops
  • Main chain and assist chain periodically lubricated via PLC control
  • Protection window maintains main body cleanliness
  • Lightweight aluminum alloy gripper bars with Renold UK or IWIS GERMANY chains ensure precision
E. Paper Collecting Part
  • Back and side aligning paper systems ensure orderly automatic paper feeding
  • Simple structure with quick operation capabilities
  • Electric back aligning paper adjustment - three times faster than manual operation
  • Front machine monitoring of back aligning paper
  • Double detection switch monitors paper order
  • Sampling capability during machine operation
  • Automatic alarm when paper collecting reaches capacity
  • Quantitative paper setting from 10 to 9999 sheets with automatic cutoff at set value
MY1500 High Speed Full Automatic Die Cutting And Creasing Machine 2
Technical Specifications
Model MY-1500
Die cutting type Pressed flat die cutting (Lower side movable, upper side unmovable)
Max paper transmitting size 1510×1120 mm
Min paper transmitting size 450×400 mm
Max die cutting size 1490×1100 mm
Min gripper size 6-8 mm
Max die cutting pressure 380 N/cm²
Paper processed Cardboard: 200-2000 gsm
Corrugated board: ≤ 8mm
Max die cutting speed 5000 sheets/h
Max feeding pile height 1400 mm (above the level)
Min feeding pile height 1250 mm (above the level)
Main motor power 11 kw
Total power ~19 kw
Total weight ~19 T
Overall size 7900×4320×2356 mm
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Includes full set of maintenance and operation manuals
MY1500 High Speed Full Automatic Die Cutting And Creasing Machine 3
Our Services
MY1500 High Speed Full Automatic Die Cutting And Creasing Machine 4
