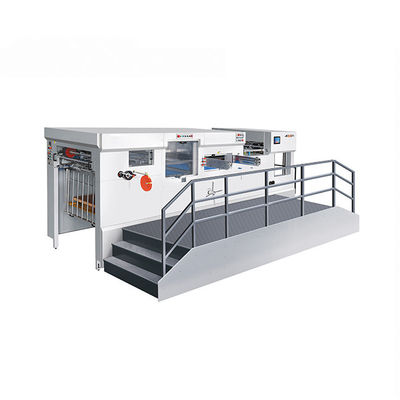

7500pcs/hour Duplex Board Die Cutting Machine 1300x980mm Die Cutter for Corrugated Carton Production

1 sets
MOQ
To be negotiated
Price
7500pcs/hour Duplex Board Die Cutting Machine 1300x980mm Die Cutter for Corrugated Carton Production
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Type:: Die-cutting Machine
Production Capacity:: 7500pcs/hour
Computerized:: YES
Warranty:: 1 Year
Size: 1300x980mm
After-sales Service Provided:: YES
Voltage: 380V
Condition: New
Warranty: 12 Months
Type: Die-cutting Machine,Punching Machine
Computerized: Yes
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
Product Name: Die Cutting Machine,carton Box Platform Die Cutting Machine/ Cardboard Platform Die-cutter
Function: Creasing And Die Cutting
Application: For Cardboard Die Cutting
Highlight:

Used united rotary die cutter

,

united rotary die cutter

,

Rotary used die cutting press

Basic Infomation
Place of Origin: Hebei province,China
Brand Name: GR
Certification: CE,ISO
Model Number: 1300
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 30-60days
Payment Terms: Western Union
Supply Ability: 10 sets/month
Product Description
Product Overview

The Duplex Board Die Cutting Machine Press Punching Corrugated Cardboard Printed Die Cut is engineered to process flat paper, cardboard, and corrugated paper. It is suitable for die cutting, indentation, and cold pressing of paper boxes, cartons, paper trademarks, and similar products. In particular, high-end and exquisitely printed materials — such as wine boxes, gift boxes, and cosmetic boxes — can be die-cut and indented on this machine to produce three-dimensional, refined, and attractive packaging.

The machine automates the paper feeding, die cutting, and paper delivery processes. A human-machine interface displays working speed, the number of processed sheets, total running time, and machine working status. It also enables dynamic monitoring of the programmable controller's input points, output points, and various faults, making troubleshooting and operation more convenient.

Duplex board die cutting machine processing printed cardboard sheets
Technical Parameters
Model SMMQ-QMY-1080 SMMQ-QMY-1200
Max. paper size 1060mm × 750mm 1200mm × 780mm
Min. paper size 400mm × 350mm 400mm × 380mm
Max. die cutting size 1050mm × 730mm 1180mm × 770mm
Paper thickness Paperboard: 0.12–2.0mm; Corrugated paper: ≤4mm Paperboard: 0.12–2.0mm; Corrugated paper: ≤4mm
Paper feeding height 1500mm 1500mm
Paper delivering height 1220mm 1220mm
Die cutting precision ≤ ±0.10mm ≤ ±0.15mm
Gripper size Min. 7mm / Max. 12mm Min. 7mm / Max. 12mm
Max. speed 7000 S/H 7000 S/H
Pressure 300T 300T
Power 13.5KW 17KW
Main motor power 11KW 11KW
Dimension (L × W × H) 7690mm × 3800mm × 2330mm 7690mm × 3900mm × 2330mm
Weight 16T 17T
Detailed Images
Feeder Feeding Unit
Feeder feeding unit of the die cutting machine
Host Machine Unit
Host machine unit of the die cutting press
German IWIS Chain & Aviation Aluminum Tooth Row
German IWIS chain and aviation aluminum tooth row components
Die Cutting Unit
Die cutting unit of the duplex board die cutting machine
Waste Remove Unit (Optional)
Optional waste removal unit for the die cutting machine
Stacking Unit
Stacking unit for finished die-cut sheets
Frequently Asked Questions
Q: Are you a factory or a trading company?

A: We are a machinery manufacturer located in Cangzhou, Hebei Province, China.

Q: How can I visit your factory?

A: We can pick you up from Beijing airport if needed. You are welcome to visit our factory.

Q: What are your products?

A: We specialize in producing 3-ply, 5-ply, and 7-ply corrugated cardboard production lines, high-speed printing machines, creasing and die cutting machines, folder gluers, flute laminators, stitching and strapping machines, and other corrugated cardboard production equipment.

Q: How does your factory control quality?

A: Over the years, our company has taken "quality first" and "integrity-based" as its corporate purpose, always meeting users' requirements as our sole purpose and providing products with excellent quality and professional technology. We attach great importance to quality control from the very beginning to the very end:

  • All spare parts we use are genuine.
  • Skillful workers care for every detail in the producing and packing processes.
  • The quality control department is specifically responsible for quality in each process.
  • The machine runs for more than 24 hours before shipping.
  • Each machine has its own manufacture serial number for long-term tracking.
Q: How is the evaluation of the products?

A: Products are distributed in the USA, Russia, Poland, Italy, England, the Middle East, Mexico, Argentina, Peru, Africa, Southeast Asia, and other countries, as well as throughout China. Product quality and enterprise reputation receive high praise at home and abroad.

Q: What is the payment term?

A: A 30% deposit is paid after the contract is signed, and the remaining 70% is paid before shipment.

Packing and Shipping

Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.

Moisture-proof and shock-proof packaging of the die cutting machine for shipping
Our Factory
