Name: Pneumatic My1300 Die Cutting And Creasing Machine Semi Automatic
Brand: Cangzhou Gerun Machinery Co.,Ltd
SKU: MY1300
Price: 500.00 USD
Availability: InStock

Pneumatic My1300 Die Cutting And Creasing Machine Semi Automatic

1 sets

MOQ

To be negotiated

Price

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Year

Type: Semi Automatic

Condition: New

After-sales Service Provided: Online Support,Video Technical Support

Usage: Cutter

Color: White,Grey

Voltage: 220/380/415 V

Driven Type: Electric And Pneumatic

Highlight:

pneumatic die cutting and creasing machine

1300 die cutting and creasing machine

semi automatic cutting and creasing machine

Basic Infomation

Place of Origin: Hebei,China

Brand Name: GR

Certification: CE,ISO

Model Number: MY1300

Payment & Shipping Terms

Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing

Delivery Time: 30-50 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 10 sets/month

Gallery

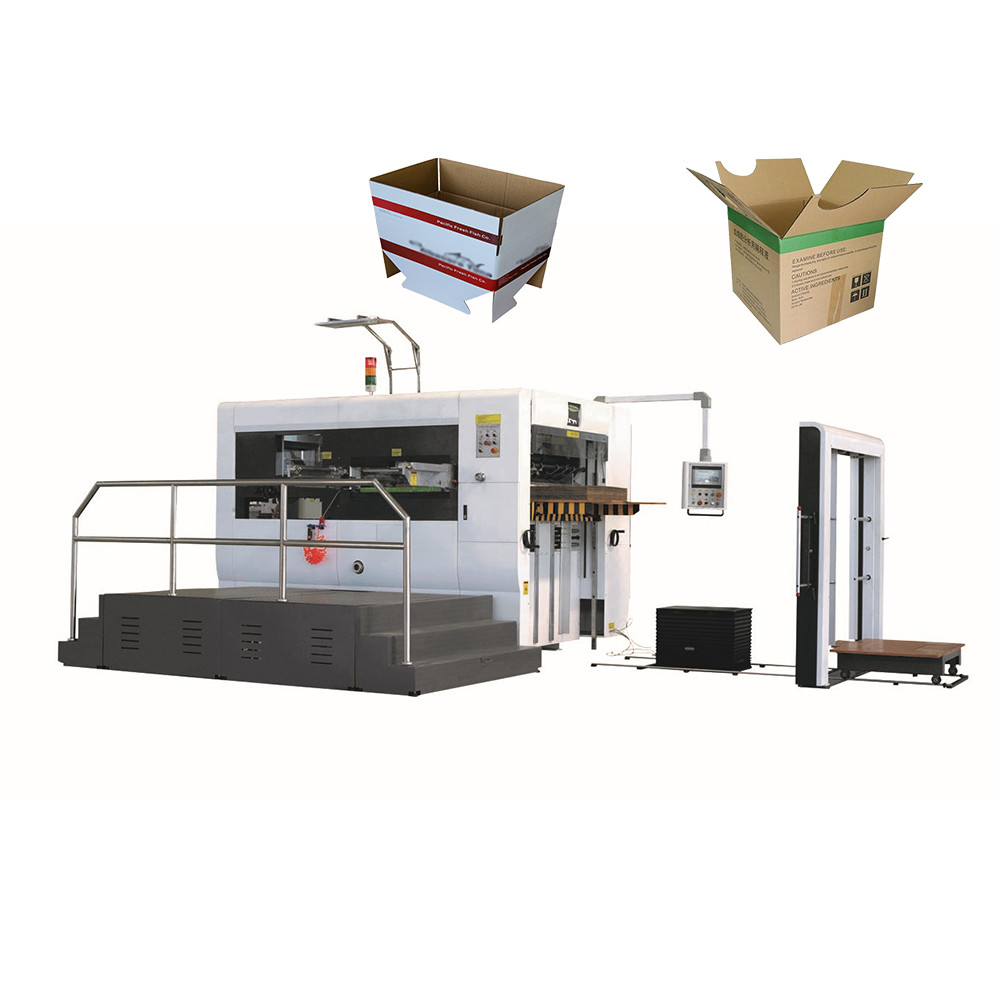

Pneumatic My1300 Die Cutting And Creasing Machine Semi Automatic

Product Description

MY1300 Semi Automatic Die Cutting And Creasing Machine

Description

The BMY-1300 Semi-Automatic Die Cutting and Creasing Machine is the main equipment for making color box, carton and paper trademark.

Our machine equip with the high intensity gripper open teeth, overall swing front guide, automatic pushing guide, high precision interval structure, pneumatic lock plate, pneumatic clutch, overload protection and automatic paper collecting, makes the paper feeding distance shorter, positioning precision high, die cutting steady, paper collecting orderliness, can also do non-gripper die cutting.

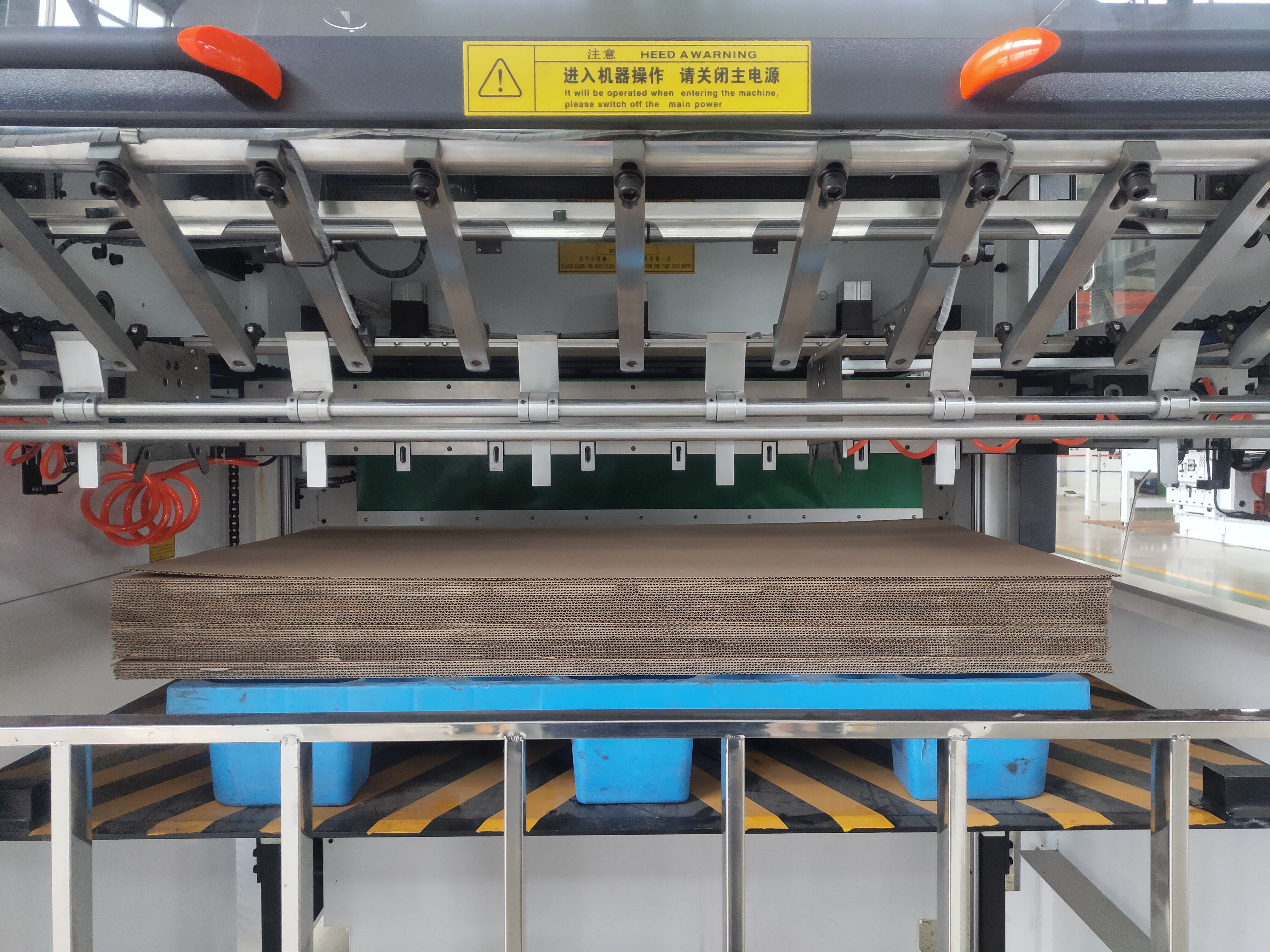

Pneumatic My1300 Die Cutting And Creasing Machine Semi Automatic 0

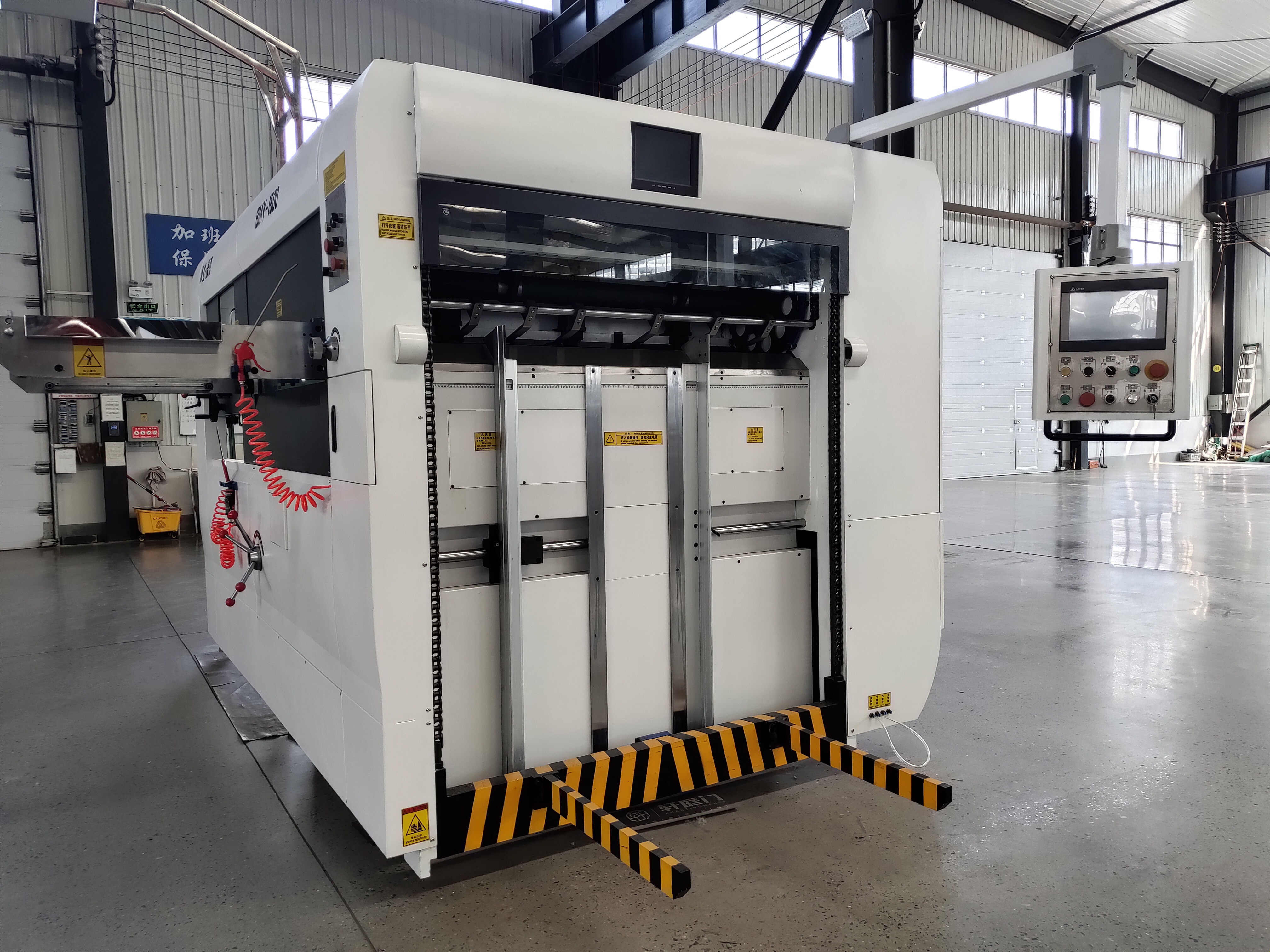

Pneumatic My1300 Die Cutting And Creasing Machine Semi Automatic 1

Parameters

Item		Parameters
Model		BMY-1300
Die cutting way		Pressed flat die cutting(Lower side is movable while upper side is unmovable)
Max paper transmitting size		1320*980mm
Min paper transmitting size		400*350mm
Max die cutting size		1300*960mm
Min gripper size		6-8mm
Max die cutting pressure		350N/cm²
Paper processed	Ivory board	200-2000g/ m²
	Corrugated board	10mm(max thickness)
Die cutting precision		±0.1mm
Max die cutting speed		5000 sheets/h
Max feeding pile height		1400mm(above the level)
Min feeding pile height		1250mm(above the level)
Total power		13.5kw
Total weight		14T
Overall size		420042502250mm(Including Pedal)

Packing and Shipping

1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.

2. Transportation and various types of weather conditions. A full set of maintenance and operation.

3. Manuals is included.

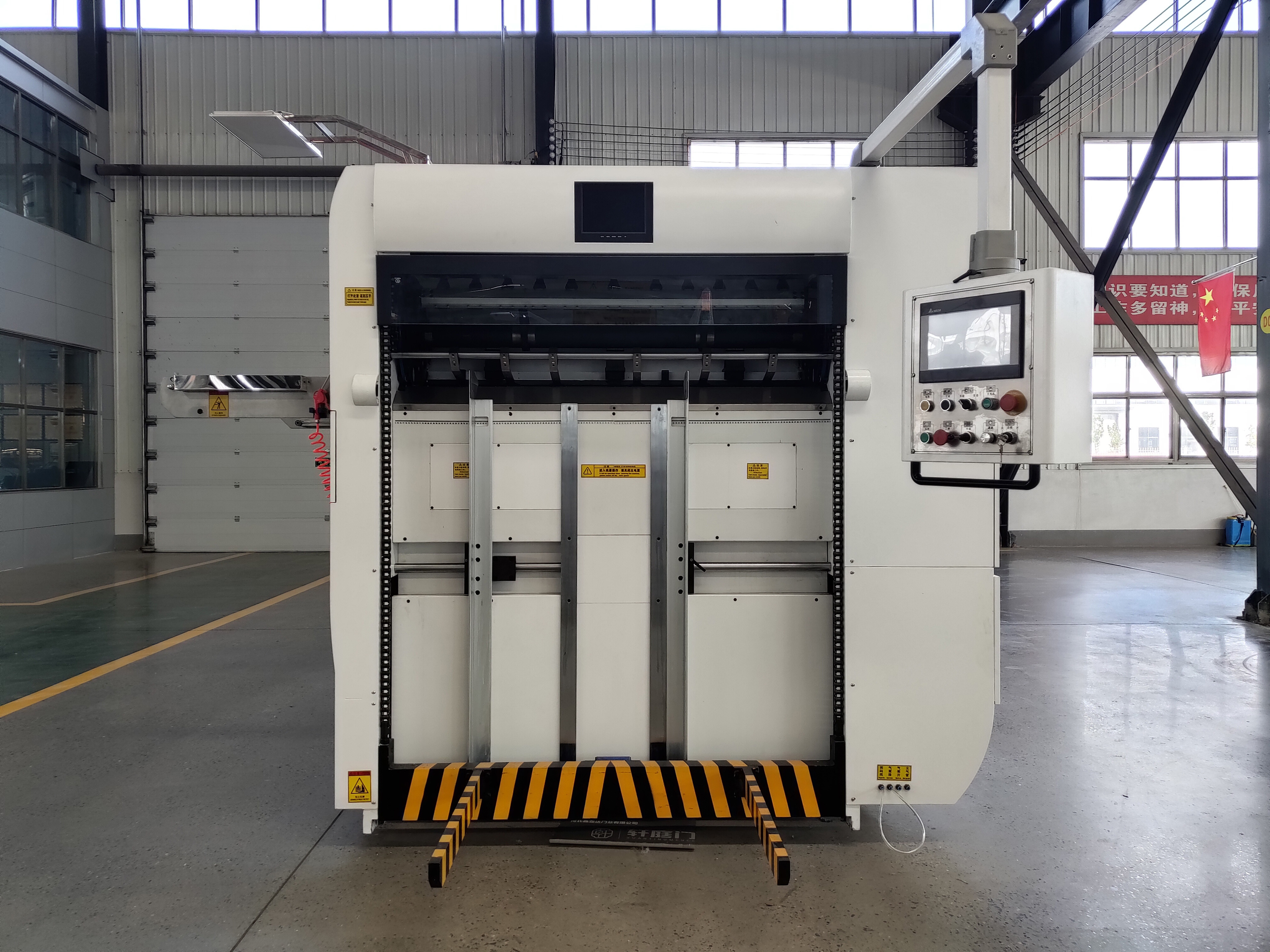

Pneumatic My1300 Die Cutting And Creasing Machine Semi Automatic 2

Our Services

Pneumatic My1300 Die Cutting And Creasing Machine Semi Automatic 3

Pneumatic My1300 Die Cutting And Creasing Machine Semi Automatic 4
