Features

Specifications

Machine Name: Automatic Partition Assembler

Model: CGJ600-4L

Dimension: 7.3*2.5*1.9m

Total Power: 7kw

Horizontal Inserting Width: 900mm

Lengthways Sheet Length: 550mm

Partition Height: 350mm

Horizontal Clapboard Distance: 75mm

Lengthways Clapboard Distance: 65mm

Lengthways Sheet No: 8 Piece

Horizontal Clapboard No.: 10 Piece

Carton Inserting Mouth Width: ＞board Thickness

Carton Thickness: 6mm

Highlight:

Automatic Partition Assembler Machine

Corrugated Carton Die Cutting Machine

Automatic Partition Assembler

Basic Infomation

Place of Origin: Dongguang，China

Brand Name: GERUN

Certification: ISO,CE

Model Number: GR

Payment & Shipping Terms

Packaging Details: Plastic film covering or wooden case packaging(choosed)

Delivery Time: 15~20 work days

Payment Terms: T/T

Supply Ability: 30set/month

Gallery

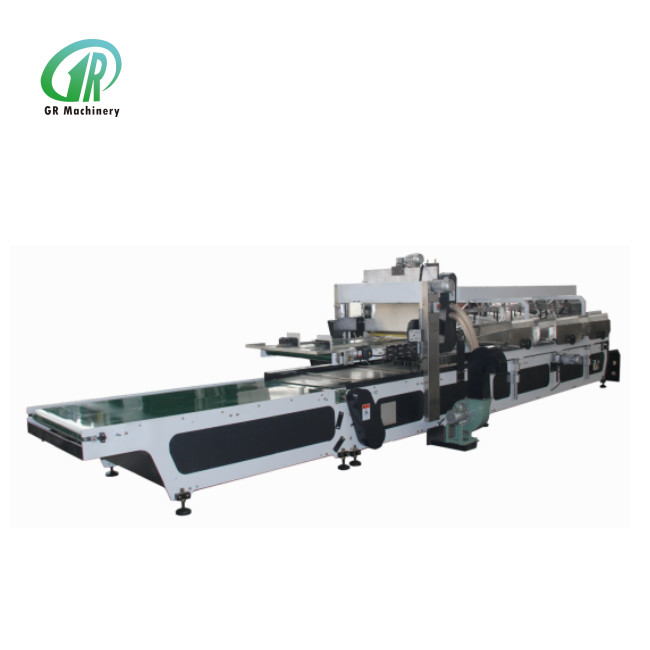

Automatic Partition Assembler After Corrugated Carton Die Cutting Machine

Product Description

Automatic Partition Assembler

Technology parameter

Model	Dimension(L x W x H m include sheet delivery )	Total power
CGJ600-4L	7.3×2.5×1.9m	7

Item	Parts name	Qty	Remarks
1	Automatic inserting machine	1 unit	Inserting : double-position; Sheets Composing: Decussation
2	Sheet Delivery	1 unit
3	Pneumatic System	1 set	Customer prepare air pump
4	Electric System	1 set	PLC,human machine interface , Servo control

Structure Character

*Lengthways and horizontal sheets do decussation inserting.

*Automatic inserting each kinds clapboard and block

*Instead of manual, two sets per time.

Automatic Partition Assembler After Corrugated Carton Die Cutting Machine 0

名称/Name	单位/Unit	数据/Data
横向插入宽度/ Horizontal inserting width: A	mm	900
纵向给纸长度/ Lengthways sheets length: B	mm	550
格板高度/Clapboard Height: C	mm	350
横向纸板间距/ Horizontal clapboard distance: D	mm	75
纵向纸板间距/Lengthways clapboard distance:E	mm	65
纵向格板数量/ Lengthways sheets No.	Piece	8
横向格板数量/ Horizontal clapboard No.	Piece	10
纸板插口宽度/ Carton inserting mouth width:F	mm	＞board thickness
纸板厚度 /Carton thickness:G	mm	6

The testing partition board should meet the following requirements

Partition board molding: die cutting molding

Customer Prepare

1.Air pressure: Work normal 0.4-0.8Mpa

2.Power Requirements: 380v 50Hz Three-phase four-wire syste

3.Electric wire need join to operate cabinet, and pneumatic pipeline need join to main pneumatic pipeline.

4.Test machine use die-cutting-clapboard

5.Machine use lubricate oil and grease

6.Foundation plane installation civil works

名称	Name	品牌Brand
伺服电机	Servo Motor	施耐德Schneider
PLC	PLC	施耐德Schneider
伺服驱动器	Servo Driver	施耐德Schneider
变频器	Inverter	施耐德Schneider
触摸屏	Touch Screen	施耐德Schneider
交流接触器	AC Contactor	施耐德Schneider
减速机	Reduction box	APEX
风机	Draught fan	九洲普惠Popula
真空泵	Vacuum pump	EURVOAC
接近开关	Proximity switch	SICK
牵引辊电机	Roller motor	上海德东Dedong Electric
插板气缸	Cylinder	亚德客AirTAC
电磁阀	Solenoid valve	爱普泰F-tec
流量控制阀	Flow control valve	神驰SNS
气源处理元件	Clean air conponent	亚德客AirTAC
油水分离器	Oil-water separator	神驰SNS
