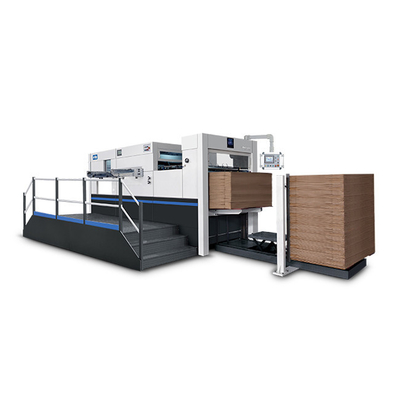

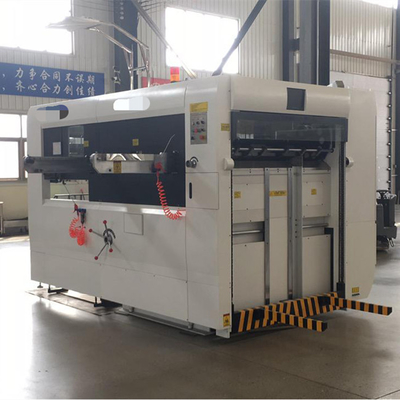

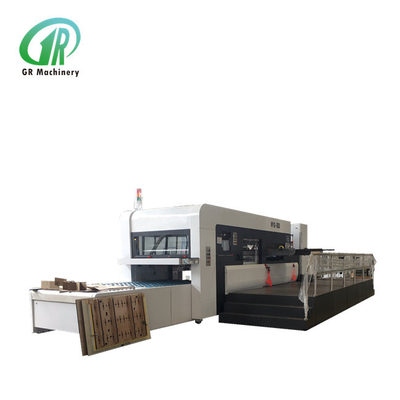

Semi Flatbed Corrugated Cardboard PP Sheet Creasing And Die Cutting Machine
Semi Flatbed Corrugated Cardboard PP Sheet Creasing And Die Cutting Machine indenting and
embossed/depressed cold-pressing of paper boxes, cartons or trademarks of package & decoration industries.
The state-of-the-art structures such as pneumatic clutch and pneumatic locking plate are used for this machine
in addition to automatization for paper feeding, die cutting, paper collection, counting, man-machine interface and
inspection. The production can be lasted continuously, improving the efficiency. This machine features easy / quick
operation, safe, high pressure, high precision and good quality etc.
| Model |
SC-1300 |
| Max feeding cardboard size |
1320×980mm |
| Min feeding cardboard size |
550×500mm |
| Max die cutting size |
1300×970mm |
| Max die cutting pressure |
300T |
| Die cutting precision |
±0.5mm |
| Cardboard thickness |
Corrugated board thickness ≤8mm (max. thickness) |
| Max die cutting speed |
4500 sheets/h |
| Weight |
14T |
| Total power |
13.5 KW |
| Dimension |
4000×2250×2250mm |
|
Die cutting unit:
1.Accurate positioning of die-cutting chase controlled by precision photocell sensors with automatic check lock device.
2.Pneumatic lock-up system on die-cutting chase to increase efficiency.
3.With air floating device ensures easy slide in and out of die-cutting plate
|
 |
Features:

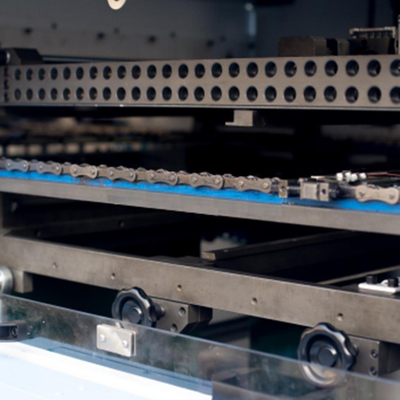

1.This machine uses high-strength gripper row,advanced gripper mechanism can adapt to various of cardboard and corrugated paper.
2.It adopts front and rear positioning and side positioning mechanism to ensure the accuracy of die cutting of the paper.
3.Equipped with high-precision intermittent mechanism,fast-acting pneumatic clutch and pneumatic locking plate.
4.It adopts a programmable logic controller and human-computer interface,which can display the working speed,number of progressed sheets,and total running time of the machine.The malfuction display makes troubleshooting very convenient.
1. Q: Are you a factory or trading company?
A: We are machinery manufacturer which is located in Cangzhou,Hebei province,China.Cangzhou Gerun Machinery Co.,Ltd.
2. Q: How can I visit your factory?
A: We can pick you up from Beijing airport if you need, welcome to visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing
machine, creasing and die cutting machine,folder gluer,flute laminator,stitching&strapping machine and other
corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet
users’ requirements as our sole purpose, providing the products with excellent quality, professional technology.
Always attach great importance to quality controlling from the very beginning to the very end.
a. All spare parts we used are genuine.
b. Skillful workers care every detail in handling the producing and packing process.
c. Quality control department especially responsible for quality in each process.
d. The machine will be running more than 24 hours before shipping.
e. Each of our machine has its manufacture series number to track for long time.
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
