CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H

1 sets
MOQ
To be negotiated
Price

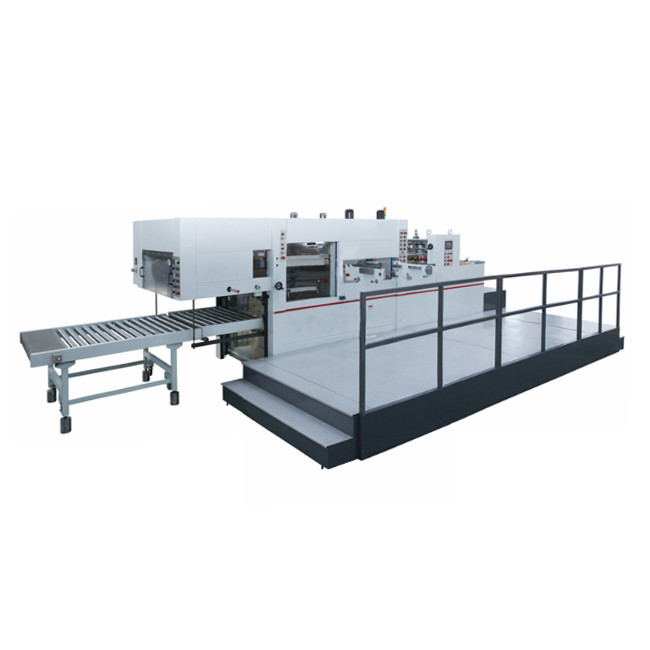

CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H
Features Gallery Product Description Chat Now
Features
Specifications
Type:: Die-cutting Machine
Production Capacity:: 5000pcs/hour
Computerized:: YES
Warranty:: 1 Year
After-sales Service Provided:: YES
Voltage: 380V
Condition: New
Warranty: 12 Months
Computerized: Yes
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
Product Name: Die Cutting Machine,carton Box Platform Die Cutting Machine/ Cardboard Platform Die-cutter
Function: Creasing And Die Cutting
Application: For Cardboard Die Cutting
Type: Die-cutting Machine,Punching Machine
Usage: Making Carton
Highlight:

CE Corrugated Carton Die Cutting Machine

,

1600 Corrugated Carton Die Cutting Machine

,

corrugated paper cutting machine

Basic Infomation
Place of Origin: Hebei province,China
Brand Name: GERUN
Certification: CE,ISO
Model Number: 1600
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 30-60days
Payment Terms: Western Union
Supply Ability: 10 sets/month
Product Description

Automatic Corrugated Carton Box Flatbed Die Cutter Sample Creasing Die Cutting Machine

Introduction



Automatic Corrugated Carton Box Flatbed Die Cutter Sample Creasing Die Cutting Machine indenting and embossed/depressed cold-pressing of paper boxes, cartons or trademarks of package & decoration industries.

The state-of-the-art structures such as pneumatic clutch and pneumatic locking plate are used for this machine

in addition to automatization for paper feeding, die cutting, paper collection, counting, man-machine interface and

inspection. The production can be lasted continuously, improving the efficiency. This machine features easy / quick

operation, safe, high pressure, high precision and good quality etc.



Unique drive gears are adopted such as high-precision indexing mechanism, pneumatic closed up, pneumatic clutch, overload protection, manual compression relief etc., to ensure stable and high speed running of the machine.

This China corrugated die cutting press machine for die cutting cardboard is equipped with practical and reliable mechanisms such as pre-stack device, secondary delivery mechanisms, manual sampling, etc. which ensure the excellent performance of the machine.

Electrical components and driving elements of internationally known brands to ensure die cutting precision and reliability of running.

Also man-machine interface is able to monitor machine running status, troubleshooting and indicating relevant help information which fully actualizes man-machine communication.

CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H 0

Parameters

1. Max. paper size 1670m×1200mm



2. Min. paper size 550mm×500mm



3. Max. Die-cutting size 1650mm×1180mm



4. Max. Die-cutting pressure 400N/cm2



5. Max. Die-cutting speed 5500sheets/h



6. Bite paper edge Min.5-8mm



7. Total power(kw) 32kw



8. Voltage 380V,3PH,50/60HZ



9. Gross weight 25 tons

Detailed Images

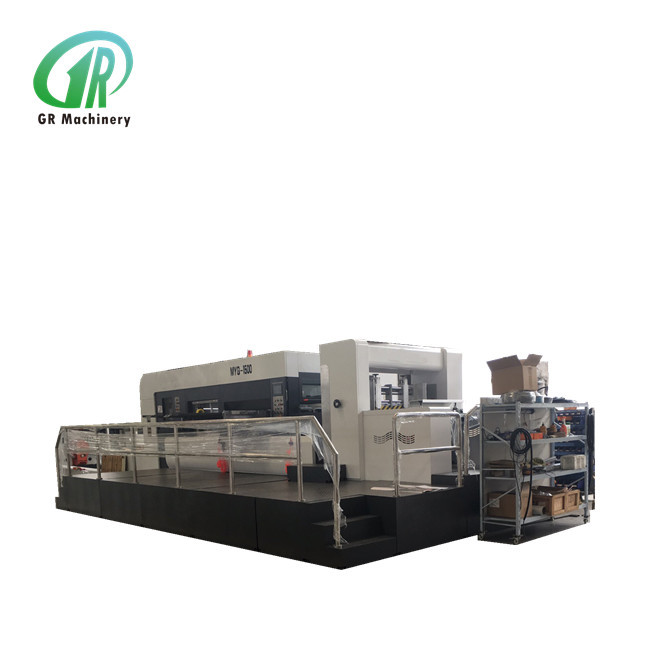

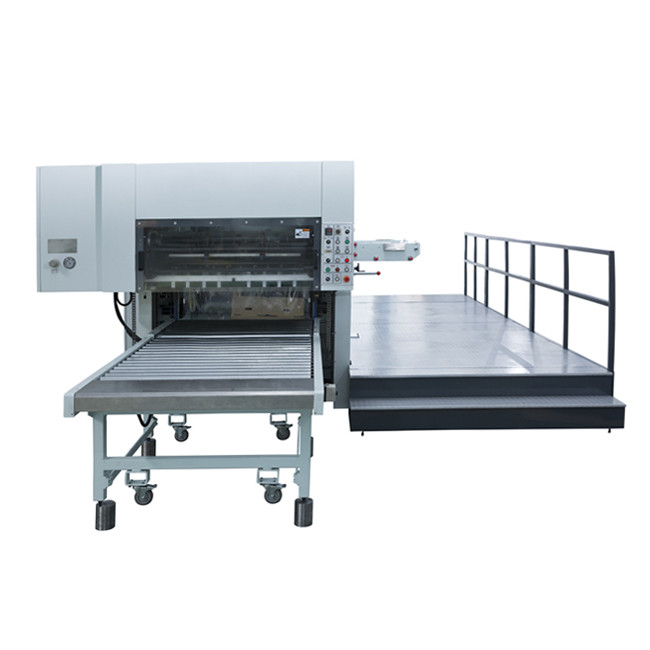

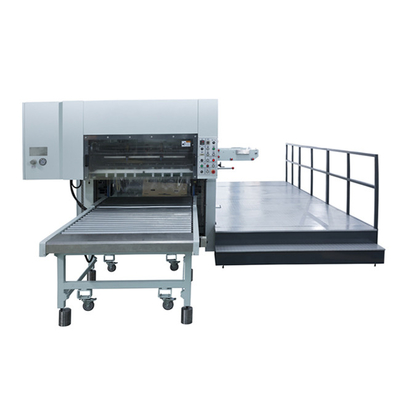

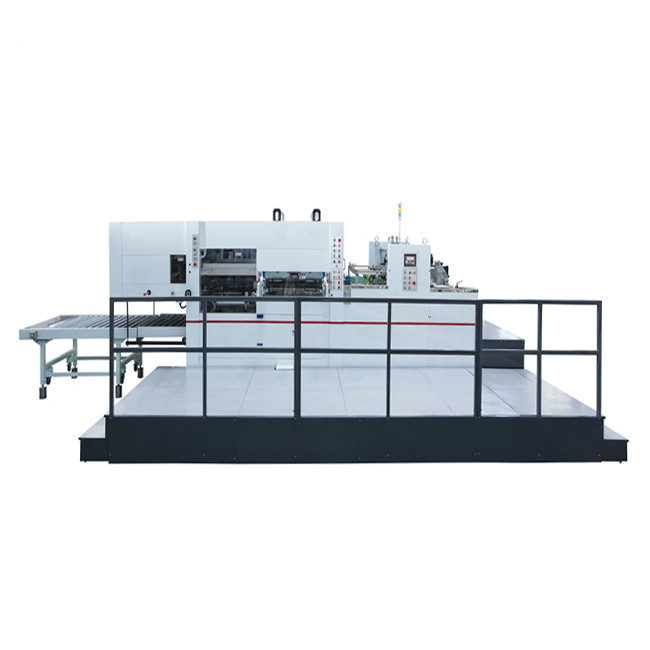

CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H 1 CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H 2
CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H 3

CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H 4

CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H 5

CE 1600 Paper Corrugated Carton Die Cutting Machine 5500sheets/H 6



Lead edge feeding unit



The front plate can be adjusted up and down according to different paper thickness.Equipped with high pressure

blower,air volume separate frequency control.New up graded lead edge feeder, more accurate and positive feeding,

greatly increasing the paper adaptability.



Die cutting unit



Crankshaft connecting rod type high precision plane movable die-cutting table.High stability upper platen fixed die-cutting table.High quality precision worm gear and the synchronous belt perfect combination of transmission, smooth and durable.

High torque pneumatic clutch/break.Famous brand multi cam intermittent transmission mechanism, improve machine life.

High quality torque clutch protects INDEX from injury.Bevel pressure trimming device, the overall adjustment pressure range

is ±1.5mm.High quality, imported pre-stretched gripper bar driving chain.Ensure the accuracy of the machine.



Delivery unit



The way of taking up Paper lifting Table with Roller bracket prevents the cardboard surface from being scratched during the paper delivery process. The whole stacking paper or counting belt output is convenient and quick. The adjustable spring chain buffers the driven wheel after tightening, which greatly reduces the inertial impact of the gripper row steering and maintains the equilibrium tension of the chain.



FAQ

Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
