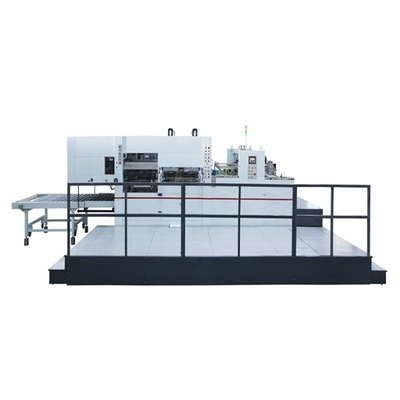

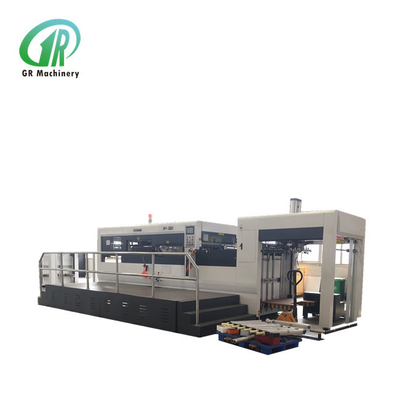

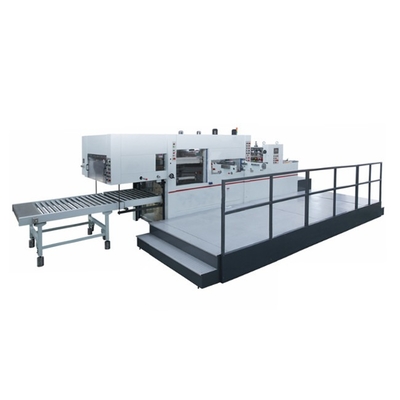

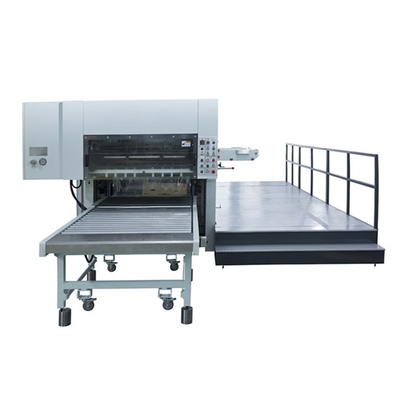

Lead Edge Feeding Corrugated Carton Die Cutting Machine For Pizza Box

Lead Edge Feeding Die Cutting Machine Cardboard Making Factory Carton Box Die Cutter

Lead Edge Feeding Die Cutting Machine Cardboard Making Factory Carton Box Die Cutter. The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal ,back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision at clutch, pneumatic locking mechanism. Adopt programmable controller and man-machine interface, automatic showing working speed, amount of paper processed,total running time, etc. It's easy to eliminate troubles according to the display of trouble clearing. Adopt transducer to control main motor.

The machine has lots of sensors and safety-ensuring devices to guarantee the safety if operator and the environment. Frontal and back pressure can be adjusted separately. It is convenient to stop the machine by handy. It can also realize die-cutting without clipper margin.

1. Max. paper size 1670m×1200mm

2. Min. paper size 550mm×500mm

3. Max. Die-cutting size 1650mm×1180mm

4. Max. Die-cutting pressure 400N/cm2

5. Max. Die-cutting speed 5500sheets/h

6. Bite paper edge Min.5-8mm

7. Total power(kw) 32kw

8. Voltage 380V,3PH,50/60HZ

9. Gross weight 25 tons

Lead edge feeding unit

The front plate can be adjusted up and down according to different paper thickness.Equipped with high pressure

blower,air volume separate frequency control.New up graded lead edge feeder, more accurate and positive feeding,

greatly increasing the paper adaptability.

Die cutting unit

The safety design of die-cutting floor and knife template and the design of easily move and slewing devices make the installation and adjustment of plate more efficient and convenient. The bottom of cutting plate adopt 3mm thick stainless steel, the active base plate adopt 2mm thick aluminium plate, that can save human resources, efficient and convenient.

Delivery unit

The way of taking up Paper lifting Table with Roller bracket prevents the cardboard surface from being scratched during the paper delivery process. The whole stacking paper or counting belt output is convenient and quick. The adjustable spring chain buffers the driven wheel after tightening, which greatly reduces the inertial impact of the gripper row steering and maintains the equilibrium tension of the chain.

1. Q: Are you a factory or trading company?
A: We are machinery manufacturer which is located in Cangzhou,Hebei province,China.Cangzhou Gerun Machinery Co.,Ltd.
2. Q:  How can I visit your factory?
A:  We can pick you up from Beijing airport if you need, welcome to visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing

machine, creasing and die cutting machine,folder gluer,flute laminator,stitching&strapping machine and other

corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet

users’ requirements as our sole purpose, providing the products with excellent quality, professional technology.

Always attach great importance to quality controlling from the very beginning to the very end.
a. All spare parts we used are genuine.
b. Skillful workers care every detail in handling the producing and packing process.
c. Quality control department especially responsible for quality in each process.

d. The machine will be running more than 24 hours before shipping.

e. Each of our machine has its manufacture series number to track for long time.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
