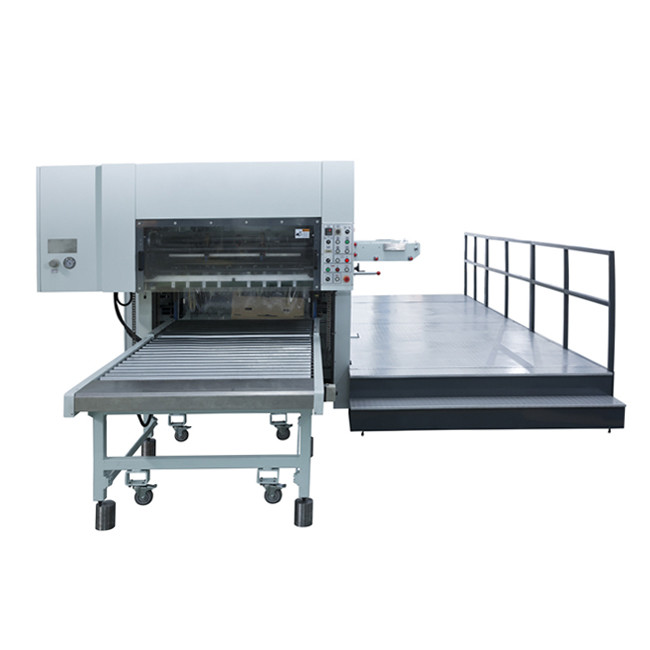

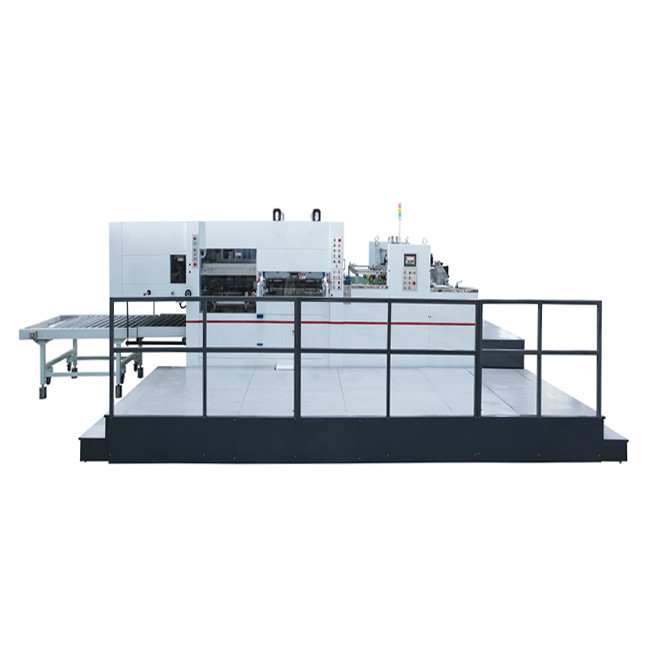

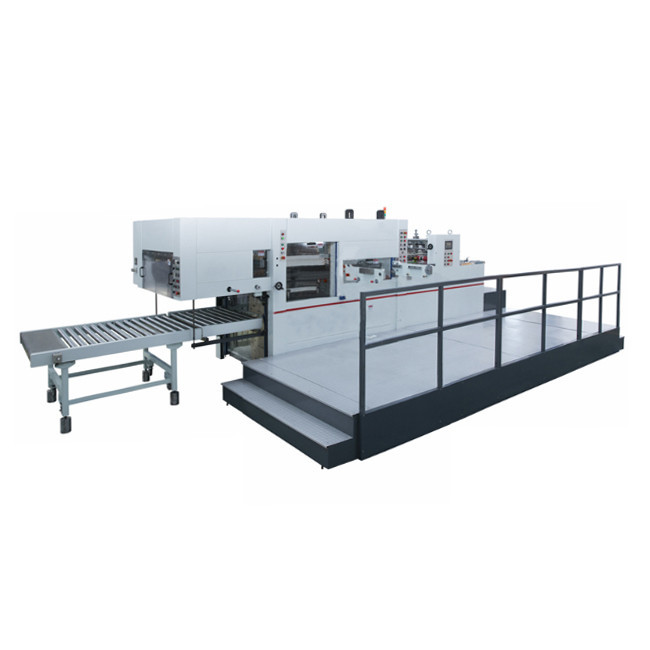

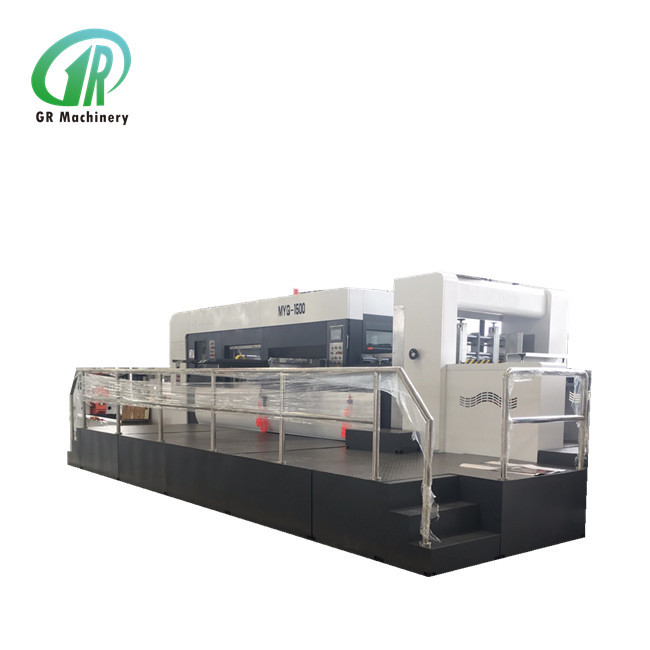

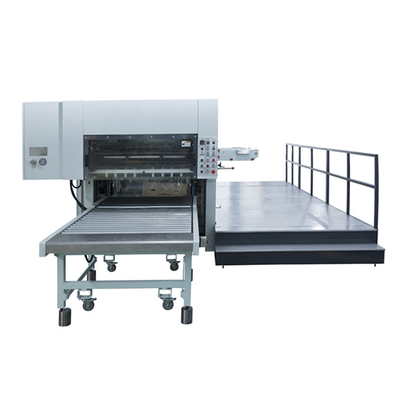

1600 Lead Edge Feeder Creasing Die-Cutting Paper Processing Machine Automatic Flatbed Die Cutter
1600 Lead Edge Feeder Creasing Die-Cutting Paper Processing Machine Automatic Flatbed Die Cutter indenting
and embossed/depressed cold-pressing of paper boxes, cartons or trademarks of package & decoration industries.
The state-of-the-art structures such as pneumatic clutch and pneumatic locking plate are used for this machine
in addition to automatization for paper feeding, die cutting, paper collection, counting, man-machine interface and
inspection. The production can be lasted continuously, improving the efficiency. This machine features easy / quick
operation, safe, high pressure, high precision and good quality etc.
1. Max. paper size 1670m×1200mm
2. Min. paper size 550mm×500mm
3. Max. Die-cutting size 1650mm×1180mm
4. Max. Die-cutting pressure 400N/cm2
5. Max. Die-cutting speed 5500sheets/h
6. Bite paper edge Min.5-8mm
7. Total power(kw) 32kw
8. Voltage 380V,3PH,50/60HZ
9. Gross weight 25 tons
Lead edge feeding unit
The front plate can be adjusted up and down according to different paper thickness.Equipped with high pressure
blower,air volume separate frequency control.New up graded lead edge feeder, more accurate and positive feeding,
greatly increasing the paper adaptability.
Die cutting unit
Crankshaft connecting rod type high precision plane movable die-cutting table.High stability upper platen fixed die-cutting table.High quality precision worm gear and the synchronous belt perfect combination of transmission, smooth and durable.
High torque pneumatic clutch/break.Famous brand multi cam intermittent transmission mechanism, improve machine life.
High quality torque clutch protects INDEX from injury.Bevel pressure trimming device, the overall adjustment pressure range
is ±1.5mm.High quality, imported pre-stretched gripper bar driving chain.Ensure the accuracy of the machine.
Delivery unit
The way of taking up Paper lifting Table with Roller bracket prevents the cardboard surface from being scratched during the paper delivery process. The whole stacking paper or counting belt output is convenient and quick. The adjustable spring chain buffers the driven wheel after tightening, which greatly reduces the inertial impact of the gripper row steering and maintains the equilibrium tension of the chain.
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
|
CANGZHOU GERUN MACHINE CO.,LTD is a manufacturer of packing machinery. Factory is located in DONGGUANG COUNTY, HEBEI PROVINCE. The factory covers an area of 50000 sqm, include workshop and office house.
Since the company established,we adhere to the “made in heart, for your life career” business philosophy, introduced and train talents, self-design and introduced advanced technology. We already developed a comprehensive enterprise of machine produce, after sale service, and machine parts sale.
Main product include 3ply, 5ply, 7ply corrugated production line, high speed printing machine, semi-automatic printing machine, single facer, rotary die cutter, carton folder gluer and so on. Our machine have been exported to all continents of the world,such as, Canada, Ecudor, Mexico, Germnay, Romania,Russia,Uzbekistan, India, Egypt.Product quality and enterprise reputation get the high praise at home and abroad.
We are willing to cooperate with domestic and foreign insight, strive for innovation, coexit win-win, hand in hand altogether will create package future.
