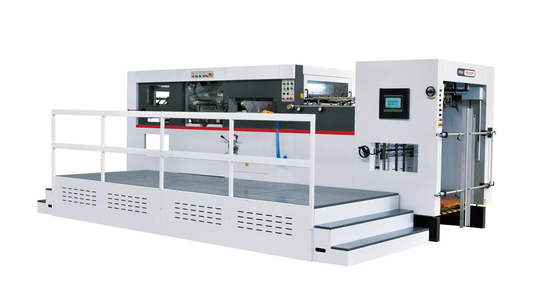

Paperboard Die Cutting Creasing Waste Removing Press Corrugated Cardboard Machine
Product Description
1. It is the key equipment for die cutting, creasing and embossing of box, carton and label etc.
2. The machine adopts high precision indexing intermittent, pneumatic die lock mechanism, air clutch, over load protection mechanism, electric pressure adjust mechanism, ensuring smooth and high speed running. It also equipped with preloading mechanism, vice feeding mechanism, speed-variable paper conveying mechanism, auto lubrication system.
3. Main driving base lubrication oil chilling system etc. exerting the machine’s full potential.
4. All electric parts and driving parts are all from internationally famous brands, ensuing the stability of high speed running and high precision of die cutting. PLC and electronic code real-time monitor whole machine running, diagnosing malfunctions conveniently. Big size man-machine interface display machine running state, malfunction point and trouble-shooting ways.
| Model |
MY-1060 |
| Max.feeding size |
1060*780mm |
| Max.die cutting size |
1060*770mm |
| Min.die cutting size |
400*370mm |
| Max.die cutting pressure |
300N/cm² |
| Die cutting precision |
±0.1mm |
| Cardboard thickness |
cardboard 200-2000gsm
Corrugated board ≤4mm
|
| Max.die cutting speed |
7500 sheets/h |
| Stacking height |
1500mm |
| Total power |
18 kw |
| Weight |
18.5T |
| Dimension |
7800×3990×2300mm |
Feeder feeding unit
Host machine unit
German IWIS chain & aviation aluminum tooth row
Die cutting unit
Waste remove unit(Optional)
Stacking unit
1. Q: Are you a factory or trading company?
A: We are machinery manufacturer which is located in Cangzhou,Hebei province,China.
2. Q: How can I visit your factory?
A: We can pick you up from Beijing airport if you need, welcome to visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing
machine, creasing and die cutting machine,folder gluer,flute laminator,stitching&strapping machine and other
corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet
users’ requirements as our sole purpose, providing the products with excellent quality, professional technology.
Always attach great importance to quality controlling from the very beginning to the very end.
a. All spare parts we used are genuine.
b. Skillful workers care every detail in handling the producing and packing process.
c. Quality control department especially responsible for quality in each process.
d. The machine will be running more than 24 hours before shipping.
e. Each of our machine has its manufacture series number to track for long time.
5. Q: How is the evaluation of the products?
A: Products are distributed in USA,Russia, Poland,Italy,England,the Middle East, Mexico,Argentina,Peru,Africa,
Southeast Asia and other countries and throughout the country. Product quality and enterprise reputation
get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid after the contract is signed, and the remaining 70% will be paid before shipment.
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
