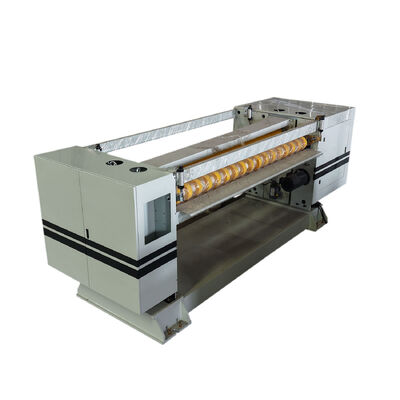

Advanced Corrugated Cardboard Production Line
This advanced cutting machine features full AC servo control, energy storage brake system, and spiral blade structure. Engineered with oil-immersed gears for enhanced durability and a 10.4-inch touch screen display for intuitive operation.
Key Technical Features
The machine stores up to 200 orders for quick, precise tool specification changes. Networked computers facilitate efficient production management while orders update without operational interruption.
The cutter shaft transmission gear is precision forged steel with induction hardening, ensuring backlash-free transmission through advanced keyless connection for high accuracy.
Cutting mechanism employs a spiral structure combining front steel blade and serrated knife, designed with scissor-like action for large cutting force and extended blade lifespan.
Feeding roller uses sun gear pressure plate method for smooth material transportation with uniform pressure, minimizing sheet crushing or blockage risks.
Energy storage braking system reduces average power consumption to one-third of conventional CNC cutting machines, achieving over 70% energy savings and significant operational cost reduction.
Product Specifications
- Product Name: Corrugated Cardboard Production Line
- Model: WJ-300-2500-II type five layer corrugated roller cardboard production line
- Rear Feed Motor: 1.5KW (frequency control)
- Forward Motor: 1.5KW (frequency control)
- Maximum Cutting Length: 9999mm
- Frame Material: HT250
- Machine Name: NC Cutting Machine
Technical Parameters
| Parameter |
Specification |
| Machine Name |
NC Cutting Machine |
| Usage |
Corrugated Cardboard Cutting |
| Orders Capacity |
Store 200 Orders |
| Maximum Cutting Length |
9999mm |
| Minimum Cutting Length |
500mm |
| Cutting Precision |
±1mm |
| Knife Axis |
42CrMo |
| Rear Feed Motor |
1.5KW (Frequency Control) |
| Forward Motor |
1.5KW (Frequency Control) |
| Flute Type |
A, C, B, E1, E2, F, G |
Production Capabilities
Available in models 1400, 1600, 1800, 2000, 2200, and 2500 with customizable working width from 1600mm to 2500mm. Engineered for 3, 5, and 7 layer corrugated paperboard sheet production with actual working speed of 150m/min.
Certification & Quality
Manufactured in Hebei Province with CE and ISO certification, ensuring reliability and compliance with international standards. Annual supply capacity of 100 sets with minimum order quantity of 1 set.
Customization Services
Gerun offers customized solutions including Single facer production line and WJ-300-2500-II type five layer corrugated roller cardboard production line. Features robust HT250 frame, 380V voltage supply, and durable 42CrMo knife axis.
Technical Support & Services
Comprehensive support including installation guidance, on-site commissioning, operator training, troubleshooting, maintenance advice, and genuine spare parts. Customized solutions tailored to specific production requirements.
Packaging & Shipping
Securely packaged with protective materials in sturdy wooden crates or metal frames. Flexible shipping options including sea freight, air freight, and land transportation. Delivery within 20 days with comprehensive installation support.
