Electric Shift Control Mill Roll Stand with 1800kg Load Capacity and Pneumatic Brake Tension for Corrugated Cardboard Production Line

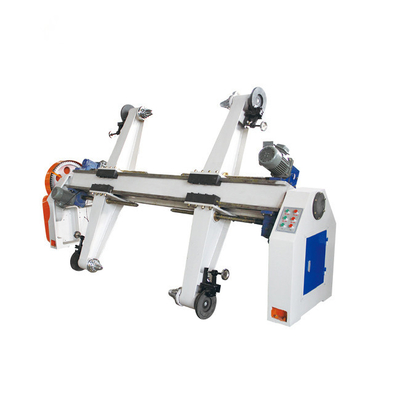

The Electric Shaftless Mill Roll Stand is a core component of the corrugated sheets production line. It is engineered for reliable, efficient handling of raw paper rolls, featuring a symmetrical structure that accommodates two original paper rolls simultaneously. The tube bundle is retained for paper assignments, ensuring continuous operation.

Paper lift, clamp, loosen, and lateral movement are all controlled via electric shift, delivering precise and effortless operation. Each motor is equipped with a friction clutch, so in the event of overload, the idling sprocket slips — effectively protecting both the machine and the motor.

Paper tension is adjusted by pneumatic brake or manual brake, with a choice of tapered tip or expansive top. Disc brake and automatically bulge-style chuck are standard. Each shaftless feeder rail bracket comes in two sets, both mounted on a paper trolley. The trolley is fitted with guide wheels, allowing the operator to push paper steadily into place. Rails use 12# channel steel with guide posts welded on a 12mm car. The welded steel paper feed rail measures 4500mm in length.

• Semi-auto & Automatic 2-ply single facer paperboard production line
• Automatic 3 / 5 / 7-ply corrugated paperboard production line
• High-speed flexo printer slotter die cutter machine
• Solution & consultation available for all customers

Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.
