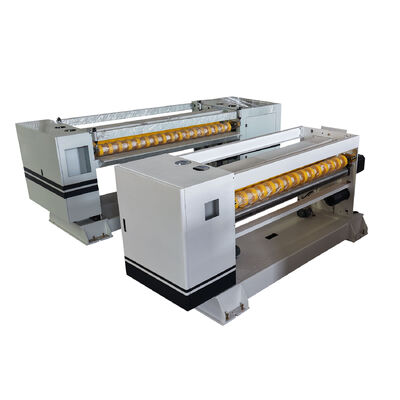

NC Cutting Machine for Corrugated Cardboard Production Line
This high-performance NC cutting machine features a full AC servo control system with energy storage braking for enhanced safety and efficiency. The 10.4-inch touch screen interface enables intuitive operation and monitoring.
Advanced Cutting Technology
Equipped with spiral blade structure and oil-immersed gears for smooth operation. The cutting mechanism combines front steel blades with serrated knives and large scissors for powerful cutting force and extended blade life.
Production Efficiency
Stores up to 200 orders for quick tool specification changes without interrupting production. Network connectivity enables seamless computer integration for efficient production management.
Energy Efficiency
Energy storage braking system consumes approximately one-third of the power used by conventional CNC cutting machines, reducing energy costs by over 70%.
Key Features
- Product Name: Corrugated Cardboard Production Line
- Machine Name: NC Cutting Machine
- Flute Types Available: A, C, B, E1, E2, F, G
- Knife Axis Material: 42CrMo
- Voltage Requirement: 380V
- Maximum Cutting Length: 9999mm
- High-quality automatic production line for carton box making
- Includes single facer production line for efficient corrugation
Technical Specifications
| Machine Name |
NC Cutting Machine |
| Frame |
HT250 |
| Orders Storage |
200 Orders |
| Forward Motor |
1.5KW (Frequency Control) |
| Maximum Cutting Length |
9999mm |
| Cutting Precision |
±1mm |
| Knife Axis |
42CrMo |
| Main Drive Servo Motor |
22 KW |
| Voltage |
380V |
| Flute Type |
A, C, B, E1, E2, F, G |
Applications
The Gerun WJ-300-2500-II five-layer corrugated roller cardboard production line is designed for high-volume manufacturing of corrugated cardboard boxes and protective packaging materials. Ideal for electronics, food and beverage, pharmaceuticals, and e-commerce industries requiring durable packaging solutions.
Customization Options
Available in model widths: 1400, 1600, 1800, 2000, 2200, and 2500mm. CE and ISO certified manufacturing from Hebei Province. Flexible packaging with plastic and wood protection. Minimum order quantity: 1 set with delivery within 20 days.
Support & Services
Comprehensive technical support including installation guidance, operational training, and troubleshooting. Regular maintenance services, preventive maintenance programs, and genuine spare parts availability. Upgrade and customization options to meet specific production requirements.
Packaging & Shipping
Secure packaging with protective materials and sturdy wooden pallets. Electrical components sealed in anti-static bags. Available via sea, air, or land freight. Includes detailed documentation, user manuals, and installation guides.
Supply Capacity: 100 sets per year
Minimum Order: 1 set
Delivery Time: 20 days
Payment Terms: T/T
Certifications: CE, ISO
