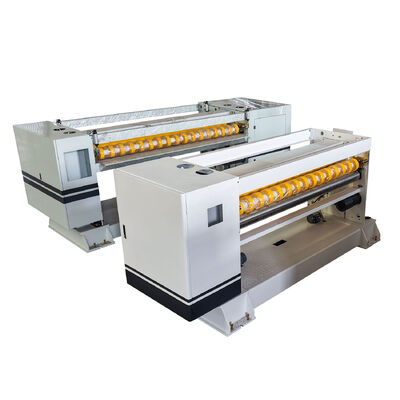

Corrugated Cardboard Production Line
Working Width: 1600, 1800, 2000, 2200, 2500mm (Customizable) | Voltage: 380V | Process: Corrugated Cardboard Cutting
Product Overview
This advanced corrugated cardboard production line features a full AC servo control system with energy storage brake for optimal efficiency. The spiral blade structure and oil-immersed gears ensure smooth operation, while the 10.4-inch touch screen provides intuitive control and monitoring.
With capacity to store up to 200 orders, the system enables quick, precise tool specification changes without production interruptions. Networked computers enhance production management and coordination throughout the manufacturing process.
Key Features
• Full AC servo control system with energy storage brake
• Spiral blade structure with oil-immersed gears
• 10.4-inch touch screen display for intuitive control
• 200-order storage capacity for quick specification changes
• Precision forged steel cutter shaft transmission gear
• Advanced keyless connection eliminates transmission backlash
• Spiral cutting mechanism with front steel blade and serrated knives
• Sun gear pressure plate feeding system
• Energy storage braking system reduces power consumption by 70%
• Independent oil pump and filter system with dual copper oil lubrication
• High-quality forged steel knife roller for enhanced stability
Technical Specifications
| Parameter |
Specification |
| Flute Type |
A, C, B, E1, E2, F, G |
| Rear Feed Motor |
1.5KW (Frequency Control) |
| Forward Motor |
1.5KW (Frequency Control) |
| Working Width |
1600/1800/2000/2200/2500mm (Customizable) |
| Order Storage |
200 Orders |
| Voltage |
380V |
| Knife Axis |
42CrMo |
| Cutting Precision |
±1mm |
| Machine Name |
NC Cutting Machine |
| Frame |
HT250 |
Applications
The Gerun Corrugated Cardboard Production Line is designed for carton box manufacturing applications across various industries. Available in multiple models (1400, 1600, 1800, 2000, 2200, 2500), this CE and ISO certified production line supports diverse flute types for packaging solutions in food, electronics, consumer goods, and industrial sectors.
Ideal for high-volume production environments requiring consistent quality and efficiency, the system is widely used in carton box making plants, packaging factories, and logistics companies seeking durable, eco-friendly packaging solutions.
Customization Options
Gerun offers comprehensive customization services for 3/5/7 layer corrugated cardboard production lines. Customizable parameters include working width, maximum cutting length (up to 9999mm), and specific production requirements. All equipment is manufactured with CE and ISO certification and features robust HT250 frame construction.
Support & Services
Our comprehensive support includes expert technical assistance, installation guidance, operator training, and maintenance services. Experienced engineers provide setup, calibration, and troubleshooting support to maximize productivity and minimize downtime throughout the equipment lifecycle.
Packaging & Shipping
Each production line component is securely packaged with protective materials and reinforced wooden crates for safe transit. We offer multiple shipping options including sea, air, and land freight with complete documentation and customs clearance support. Professional installation assistance is available upon delivery.
