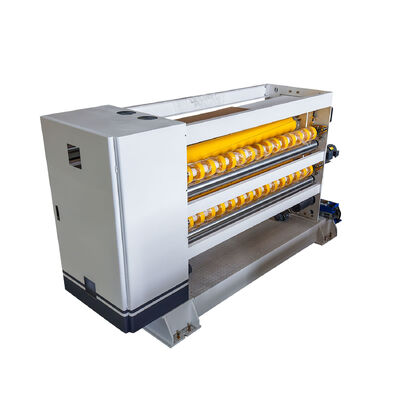

Advanced Corrugated Cardboard Production Line
This cutting machine features a full AC servo control system, energy storage brake, and spiral blade structure with oil-immersed gear mechanism. Equipped with a 10.4-inch touch screen display for intuitive operation and capable of storing up to 200 orders for quick, precise tool specification changes without process interruption.
Key Features
- Product Name: Corrugated Cardboard Production Line
- Model: WJ-300-2500-II type five layer corrugated roller cardboard production line
- Supports 3, 5, and 7 layer corrugated cardboard production
- Maximum cutting length: 9999mm
- Frame Material: HT250 cast iron
- Working width options: 1600mm, 1800mm, 2000mm, 2200mm, 2500mm (customizable)
- Order storage capacity: 200 orders
- Main drive: 22 KW servo motor
Technical Specifications
| Cutting Precision |
±1mm |
| Working Width |
1600/1800/2000/2200/2500mm (Customizable) |
| Knife Axis Material |
42CrMo alloy steel |
| Flute Types |
A, C, B, E1, E2, F, G |
| Minimum Cutting Length |
500mm |
| Voltage |
380V |
| Rear Feed Motor |
1.5KW (Frequency Control) |
| Forward Motor |
1.5KW (Frequency Control) |
Advanced Engineering Features
Precision Transmission System
Cutter shaft transmission gear crafted from precision forged steel with induction hardening ensures no backlash during transmission. Advanced keyless connection design guarantees high transmission accuracy and smooth operation.
Cutting Mechanism
Spiral structure combining front steel blade and serrated knife with large scissors design delivers strong cutting force and extends blade lifespan.
Feeding System
Roller uses sun gear pressure plate method ensuring smooth transportation and uniform pressure, effectively preventing sheet crushing and blockage during feeding.
Energy Efficiency
Energy storage braking system reduces average power consumption to about one-third of typical CNC cutting machines, saving over 70% in electricity costs.
Lubrication System
Independent oil pump and filter system with two copper oils applied at each gear position provides consistent lubrication and cooling during operation.
Applications
Ideal for producing diverse corrugated cardboard products across multiple industries including logistics, e-commerce packaging, electronics, food and beverage, and automotive parts shipping. Perfect for large-scale manufacturing plants requiring automatic, high-speed production to meet demanding order volumes.
Customization Options
Available in models 1400, 1600, 1800, 2000, 2200, and 2500 with CE and ISO certification. Minimum order quantity of 1 set with flexible pricing. Delivery time approximately 20 days with T/T payment terms. Supply capacity of 100 sets per year.
Support & Services
Comprehensive technical support including installation guidance, operator training, routine maintenance, troubleshooting, remote assistance, genuine replacement parts, and upgrade kits. Regular software updates and performance assessments to ensure optimal operation.
Packaging & Shipping
Carefully packaged with high-quality protective materials using sturdy wooden crates or reinforced steel frames. Components securely wrapped to prevent damage during transit. Clear labeling and tracking information provided with detailed documentation included.
