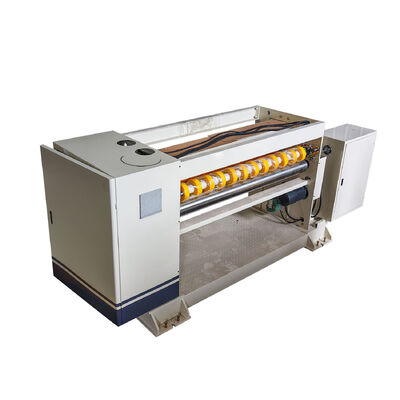

Corrugated Cardboard Cutting Corrugated Cardboard Production Line Including Flute Type G And Minimum Cutting Length 500mm Designed For Workflow

1 Set
MOQ
To Be Negotiated
Price
Corrugated Cardboard Cutting Corrugated Cardboard Production Line Including Flute Type G And Minimum Cutting Length 500mm Designed For Workflow
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V
Frame: HT250
Machine Name: NC Cutting Machine
Maximum Cutting Length: 9999mm
Usage: Corrugated Cardboard Cutting
Main Drive Servo Motor: 22 KW
Minimum Cutting Length: 500mm
Working Width: 1600/1800/2000/2200/2500mm/Customizable
Highlight:

corrugated cardboard production line with G flute

,

cardboard cutting machine 500mm minimum length

,

industrial corrugated cardboard workflow equipment
Basic Infomation
Brand Name: Gerun
Certification: CE,ISO
Model Number: 1400/1600/1800/2000/2200/2500
Payment & Shipping Terms
Packaging Details: Plastic,wood
Delivery Time: 20 Days
Payment Terms: T/T
Supply Ability: 100 Sets/year
Product Description
Advanced Corrugated Cardboard Production Line
This advanced NC cutting machine features full AC servo control with an energy storage brake system, delivering exceptional performance and durability for corrugated cardboard production.
Key Features & Technology
  • Full AC servo control with energy storage brake system
  • Spiral blade structure with oil-immersed gear mechanism
  • 10.4-inch touch screen display for intuitive operation
  • 200-order storage capacity for uninterrupted production
  • Networked computer integration for efficient management
  • Precision-forged steel cutter shaft with induction hardening
  • Backlash-free transmission with keyless connection design
  • Spiral cutting mechanism combining steel blade with serrated knives
  • Sun gear pressure plate feeding system for smooth material transport
  • Energy-efficient design consuming 70% less power than traditional machines
  • Independent oil pump and filter system with dual copper reservoirs
  • High-quality forged steel knife roller for excellent stability
Technical Specifications
Machine Name NC Cutting Machine
Usage Corrugated Cardboard Cutting
Voltage 380V
Main Drive Servo Motor 22 KW
Rear Feed Motor 1.5KW (Frequency Control)
Forward Motor 1.5KW (Frequency Control)
Maximum Cutting Length 9999mm
Minimum Cutting Length 500mm
Cutting Precision ±1mm
Orders Storage Capacity 200 Orders
Flute Types A, C, B, E1, E2, F, G
Board Layers 3, 5, and 7 layer corrugated paperboard
Applications
This production line is ideal for packaging production plants, logistics companies, e-commerce fulfillment centers, and manufacturing units specializing in corrugated carton boxes. It supports various flute types and can produce single-layer cartons or multi-layer corrugated boxes tailored to specific requirements.
Customization Options
Available in multiple model numbers (1400, 1600, 1800, 2000, 2200, 2500) with CE and ISO certifications. Customizable solutions for WJ-300-2500-II type five layer corrugated roller cardboard production line. Features 22 KW main drive servo motor and durable 42CrMo knife axis for precision cutting.
Support & Services
Comprehensive technical support including installation guidance, operational training, routine maintenance, troubleshooting assistance, and timely spare parts supply. Regular software updates and system upgrades with customized service packages for preventive maintenance and emergency repairs.
Packing & Shipping
Secure packaging with protective materials using plastic and wood. Delivery within 20 days via sea, air, or land transport with detailed documentation and tracking services. Professional installation team available for setup and commissioning.
Certifications: CE and ISO certified
Supply Ability: 100 sets per year
Minimum Order: 1 set
Payment Terms: T/T options available
Origin: Hebei Province, China
