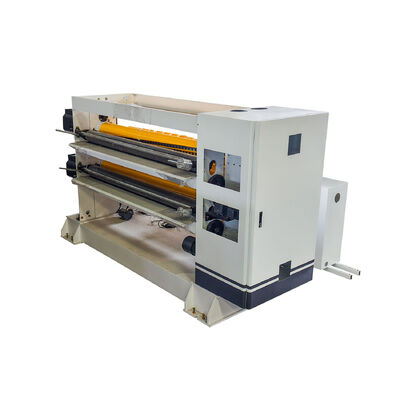

Advanced Cutting Machine Features
This cutting machine features a full AC servo control system, energy storage brake, and spiral blade structure. It utilizes an oil-immersed gear system and includes a 10.4-inch touch screen display for easy operation and monitoring.
The machine can store up to 200 production orders, enabling quick and precise tool specification changes. Orders can be switched seamlessly without interrupting operation, and network computer integration facilitates production management.
The cutter shaft transmission gear is crafted from precision forged steel with induction hardening, ensuring backlash-free transmission through advanced keyless connection for high accuracy and reliable performance.
The cutting mechanism adopts a spiral structure combining front steel blade with serrated knife, providing strong cutting force and extended blade life for efficient handling of scissors and large scissors.
The feeding roller uses a sun gear pressure plate method to guarantee smooth material transportation and consistent pressure, minimizing the risk of crushing or jamming sheets during feeding.
Energy Efficiency
This model incorporates energy storage braking instead of dynamic braking, significantly reducing power consumption. On average, it uses only one-third of the energy required by conventional CNC cutting machines, saving over 70% in electricity costs.
Product Specifications
- Product Name: Corrugated Cardboard Production Line
- Main Drive Servo Motor: 22 KW
- Knife Axis Material: 42CrMo
- Usage: Corrugated Cardboard Cutting
- Rear Feed Motor: 1.5KW (Frequency Control)
- Voltage: 380V
- Suitable for 5 Layer Corrugated Cardboard Production Line
- Can be used as Single Facer Production Line
- Supports 3, 5, 7 Layer Corrugated Paperboard Sheet Production Line
Technical Parameters
| Parameter |
Specification |
| Working Width |
1600/1800/2000/2200/2500mm / Customizable |
| Machine Name |
NC Cutting Machine |
| Orders |
Store 200 Orders |
| Flute Type |
A, C, B, E1, E2, F, G |
| Maximum Cutting Length |
9999mm |
| Knife Axis |
42CrMo |
| Cutting Precision |
±1mm |
| Rear Feed Motor |
1.5KW (Frequency Control) |
| Voltage |
380V |
| Forward Motor |
1.5KW (Frequency Control) |
Applications
The Gerun Corrugated Cardboard Production Line is a versatile and efficient solution designed for packaging factories, logistics companies, and manufacturing enterprises requiring sturdy, eco-friendly, and cost-effective packaging materials.
Ideal for e-commerce packaging production, food and beverage packaging, electronics and appliance shipping cases, and customized packaging solutions for delicate or heavy goods. The robust frame made of HT250 and high-quality knife axis of 42CrMo ensure durability and precision cutting.
Customization Options
Gerun offers customizable Corrugated Cardboard Production Lines with models 1400, 1600, 1800, 2000, 2200, and 2500. Our 3, 5, and 7 layer corrugated paperboard sheet production lines can be tailored to your specific requirements.
With a supply capacity of 100 sets per year and minimum order quantity of 1 set, we provide flexible packaging options and delivery within approximately 20 days. Payment terms are convenient with T/T accepted.
Support and Services
Our dedicated technical support team provides comprehensive installation guidance, regular maintenance services, and prompt troubleshooting assistance. We offer on-site technical training, customized solutions, and genuine spare parts to maintain equipment longevity and reliability.
Packing and Shipping
Each component is securely packaged with high-quality, moisture-resistant materials to prevent damage during transit. We employ reliable logistics partners specializing in heavy machinery handling and provide detailed shipping documentation with tracking services.
Installation support and guidance are available upon arrival to ensure efficient setup and smooth operation from day one.
