SF35 Cassette Single Facer Machine with 2500mm Width and Steam Heating Suction for Quick Roller Change in Corrugated Cardboard Production Line

1 set
MOQ
To be negotiated
Price
SF35 Cassette Single Facer Machine with 2500mm Width and Steam Heating Suction for Quick Roller Change in Corrugated Cardboard Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Single Facer
Usage: Making Carton Corrugation
Color: White
Warranty: 1 Year
Packaging Material: Plastic, Paper, Wood
Voltage: 220v/380v/440v
Condition: New
Driven Type: Electric, Steam
Basic Infomation
Place of Origin: Hebei,China
Brand Name: GR
Certification: CE,ISO
Model Number: SF30-2500
Payment & Shipping Terms
Packaging Details: Plastic film covering or wooden case packaging(optional)
Delivery Time: 30-60days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 20 sets/month
Product Description
Corrugated Cardboard Production Line Equipped with SF35 2500mm Width Cassette Single Facer Machine and Steam Heating Suction for Output
SF30-2500 Single Face Machine
SF-35 Cassette Single Facer Machine 2500mm Width Steam Heating Suction Type for Corrugated Cardboard Production

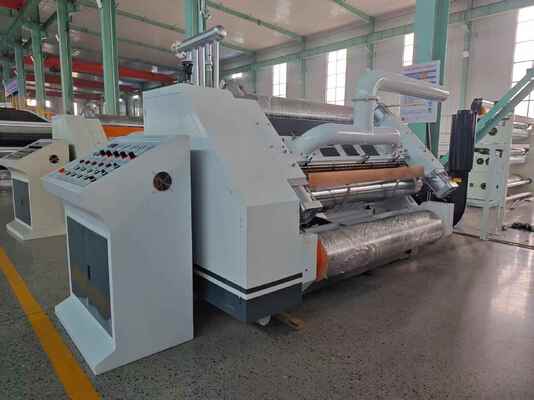

SF35 Cassette Single Facer Machine with 2500mm Width and Steam Heating Suction for Quick Roller Change in Corrugated Cardboard Production Line 0
Product Overview
High Speed Steam Heating Single Face Machine for corrugated cardboard production, featuring advanced negative pressure design and quick-change roller system.
Key Features
  • Main corrugating roller: Ø500mm (varies by flute), pressure roller Ø600mm, preheat roller Ø500mm
  • Negative pressure design reduces heat consumption and ensures even core paper pressing for superior corrugate molding
  • Quick roller change in 10 minutes with electric trolley loading and air pressure locking system
  • Corrugated roller made from 50CrMo high-quality alloy steel with heat treatment and tungsten carbide surface
  • Airbag control system for corrugated and pressure rollers with barometric pressure buffering
  • Electric glue volume control with independent operation capability
  • Movable glue unit for easy cleaning and maintenance
  • User-friendly touch screen interface with color display for operation status and parameter settings
  • Built-in pre-conditioner with proportional spraying for core paper temperature and moisture adjustment
  • High-temperature grease bearings for main and auxiliary corrugating and pressure rollers
SF35 Cassette Single Facer Machine with 2500mm Width and Steam Heating Suction for Quick Roller Change in Corrugated Cardboard Production Line 1
Technical Specifications
Parameter Specification
Effective Width 2500mm
Design Speed 300m/min
Economic Speed 180-300m/min
Paper Feed Range 1050-2550mm
Maximum Steam Temperature 200℃
Steam Pressure 1.2Mpa
Working Power 380V 50Hz 37KW
Packaging & Shipping
Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.
SF35 Cassette Single Facer Machine with 2500mm Width and Steam Heating Suction for Quick Roller Change in Corrugated Cardboard Production Line 2
Our Services
  • Professional technicians assigned to client's site for equipment installation, commissioning, and operator training
  • Free training available at our company for operators and maintenance personnel upon request
  • Detailed installation and operation manuals provided with equipment
  • Free plant layout design available upon client request
  • One-year quality warranty with free maintenance and replacement of wearing parts
  • Long-term maintenance service and cost-price parts supply after warranty period
  • 24/7 complaint response system with resolution within 24-48 hours
