1800mm Effective Width Steam Heating Single Face Machine with Suction Type Structure for Corrugated Cardboard Production

1 set
MOQ
To be negotiated
Price
1800mm Effective Width Steam Heating Single Face Machine with Suction Type Structure for Corrugated Cardboard Production
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Single Facer
Usage: Making Carton Corrugation
Color: White
Warranty: 1 Year
Packaging Material: Plastic, Paper, Wood
Voltage: 220v/380v/440v
Condition: New
Driven Type: Electric, Steam
Basic Infomation
Place of Origin: Hebei,China
Brand Name: GR
Certification: CE,ISO
Model Number: SF-35-1800
Payment & Shipping Terms
Packaging Details: Plastic film covering or wooden case packaging(optional)
Delivery Time: 30-60days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 20 sets/month
Product Description
1800 Corrugated Cardboard Production Line with Steam Heating Single Face Machine and Suction Type Structure for Stable Output
Product Overview
High Speed Steam Heating Single Face Machine Corrugated Cardboard Making Machine
Key Features
  • Suction type structure with high pressure powerful fan system
  • Air source device with censored and electrical control on the same operation counters
  • Distance from host machine not less than 1.5 meters
  • Operating side closed with all hoods
  • Corrugated roller made from 52 CrMo alloy steel with laser quenching and surface polishing
  • Corrugated roller diameter: 280mm with surface hardness HRC60 degrees
  • Key parts tile roller and pressure roller bearing use Wafangdian high-temperature resistant bearings
  • Glue wallboard structure with pneumatic control back to glue system
  • Glue rubber roller surface features 25 pits processing line network hard chromium plating
  • Scraping plastic roller surface with hard chromium plating processing grinding

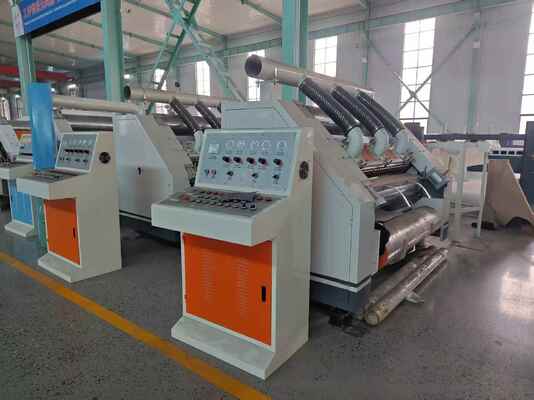

1800mm Effective Width Steam Heating Single Face Machine with Suction Type Structure for Corrugated Cardboard Production 0
Technical Specifications
Parameter Specification
Effective Width 1800mm
Design Speed 200m/min
Economic Speed 200m/min
Paper Feed Range 1850mm
Maximum Steam Temperature 160-200℃
Steam Pressure 0.8-1.3Mpa
Working Power 380V 50Hz 37KW
Packaging & Shipping
Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.
1800mm Effective Width Steam Heating Single Face Machine with Suction Type Structure for Corrugated Cardboard Production 1
Our Services
  • Professional technicians assigned to client's site for equipment installation, commissioning, and operator training
  • Free training available at our company for operators and maintenance personnel upon request
  • Detailed installation and operation manuals provided with equipment
  • Free plant layout design available upon client request
  • One-year quality warranty with free maintenance and replacement of wearing parts
  • Long-term maintenance service and cost-price parts supply after warranty period
  • 24/7 complaint response system with resolution within 24-48 hours
