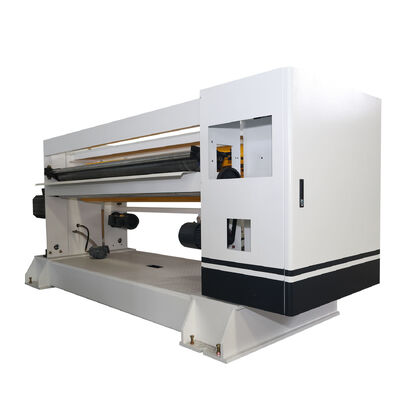

Cutting Paper Precision ±1mm Left Or Right Operation Direction 3 5 7 Layer Corrugated Paperboard Sheet Production Line NC Cutter

This advanced NC cutting machine features precision engineering for corrugated paperboard production with ±1mm accuracy and support for 3, 5, and 7-layer materials.

• Stores up to 200 unit orders for quick cutter specification changes
• Order changes possible without halting production
• Networked computer integration for production management
• Precision forged steel knife shaft drive gears with induction hardening
• Backlash-free transmission via advanced keyless connection
• Inlaid front steel blade knife with spiral structure and serrated scissors blades
• Sun gear platen method for smooth material delivery and even pressure distribution
• Braking energy storage system reducing energy consumption by over 70%
• Precision adjustable no-gap gear for accurate blade engagement
• Independent oil pump and filter system with copper oil distribution

• High-quality forged steel construction for balanced structure and stability
• Cross distance on knife shaft center: ￠216 mm
• Front lower conveying roller diameter: ￠156 mm
• Rear lower conveying roller diameter: ￠156 mm
• Front platen roller diameter: ￠70 mm
• Rear platen roller diameter: ￠70 mm
• All rollers (except under knife shaft) hard chrome plated after grinding

• Main drive motor: 18.5 KW (Full AC synchronous servo)
• Feed motors (before and after feeding): 3 KW each (Frequency Control)
• Lubricating oil pump motor: 0.25 KW

The Gerun Corrugated Cardboard Production Line is designed for diverse industrial applications with models 1400, 1600, 1800, 2000, 2200, and 2500. CE and ISO certified, this high-quality automatic production line is ideal for efficient carton box manufacturing operations.

Perfect for industries requiring high-volume cardboard production with precision and speed. Supports maximum speed of 100 meters per minute with cutting length range from 500mm to 9999mm. Voltage options include 220V, 380V, 440V, or customizable for various industrial environments.

Ideal for large-scale packaging manufacturers, e-commerce companies, and logistics enterprises requiring high-quality corrugated cardboard for packaging, shipping, and storage solutions.

Gerun offers customizable corrugated cardboard production lines to meet diverse production needs. Features include PLC control system, customizable voltage options, effective width of 2200mm, and precise cutting accuracy (uniform ±1mm, non-uniform ±2mm).

Minimum order quantity: 1 set. Supply ability: 100 sets per year. Delivery time: approximately 20 days. Payment terms: T/T accepted.

Comprehensive technical support including installation guidance, equipment commissioning, operator training, routine maintenance, and troubleshooting assistance. Genuine spare parts and upgrade options available to maintain peak performance.

Remote diagnostics and on-site visits provided to resolve issues promptly and extend machinery lifespan.

Carefully packaged with protective materials to prevent damage during transit. Heavy components secured on sturdy pallets with industrial straps. Smaller parts organized in labeled boxes.

Shipping arranged via reliable freight carriers with sea, air, or land transport options. Comprehensive documentation including manuals, installation guides, and warranty certificates included.
