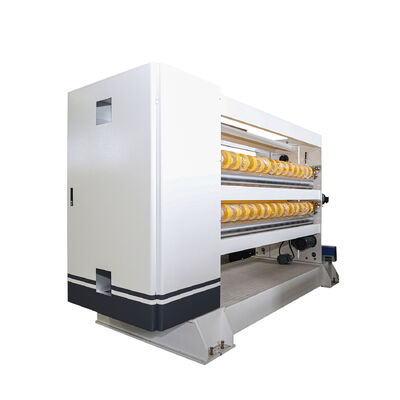

Precision ±1mm Double NC Cutter Corrugated Cardboard Production Line Computer Control Helical Cross Cutter And PLC Control System

This advanced computer-controlled production line features helical cross cutting with PLC control system, capable of storing up to 200 orders for quick specification changes without stopping production.

• Networked computer integration for efficient production management
• Precision forged steel knife shaft drive gears with induction hardening
• Backlash-free transmission with advanced keyless connection
• Spiral inlaid front steel blade with serrated knives for extended life
• Sun gear platen design for smooth delivery and even pressure
• Braking energy storage system reducing power consumption by 70%
• Precision adjustable no-gap gear for exact blade engagement
• Independent oil pump and filter lubrication system
• Finely forged steel knife roller for excellent balance

• Distance between knife shaft centers: ￠216mm
• Diameter of front lower conveying roller: ￠156mm
• Diameter of rear lower conveying roller: ￠156mm
• Diameter of front platen roller: ￠70mm
• Diameter of rear platen roller: ￠70mm

• Main drive motor power: 18.5KW (Full AC synchronous servo)
• Front and rear feeding motor power: 3KW (Frequency controlled)
• Lubricating oil pump motor power: 0.25KW

The Gerun Automatic High Speed 3/5/7 Layers Corrugated Box Cardboard Production Line is ideal for packaging manufacturers, logistics companies, and e-commerce businesses requiring high-volume, customizable cardboard production.

• Available models: 1400, 1600, 1800, 2000, 2200, 2500
• Maximum cutting length: 9999mm, Minimum: 500mm
• Highest machinery speed: 100 meters per minute
• Customizable operation direction (left or right)
• Voltage options: 220V, 380V, 440V or customizable

Gerun offers flexible customization with models supporting 3, 5, and 7 layer corrugated paperboard production lines to meet diverse manufacturing requirements.

• Equipment dimensions: Lmx4.2*Wmx1.2*Hmx1.4
• Maximum weight: 3500Kg per set
• Supply ability: 100 sets per year
• Minimum order: 1 set
• Delivery time: 20 days
• Payment terms: T/T

Comprehensive technical support including installation guidance, commissioning, training, and maintenance services to ensure optimal performance and extended equipment lifespan.

Equipment is securely packaged with protective plastic film, foam padding, and wooden crates. Professional logistics coordination ensures safe delivery with installation support available upon arrival.
