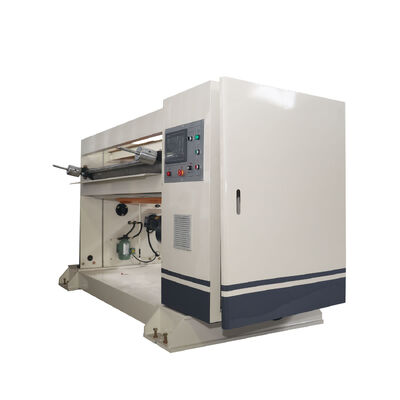

Computer Control Helical Cross Cutter NC Cutter
Product Overview
This 7-layer corrugated cardboard production line features a minimum cutting length of 500mm and is optimized for precision cutting operations.
Key Features
- Stores up to 200 order units for quick cutter specification changes
- Enables order changes without stopping operations
- Networked computer integration for enhanced production management
- Precision forged steel knife shaft drive gears with induction hardening
- Backlash-free transmission with advanced keyless connection
- Inlaid front steel blade with spiral structure for extended blade life
- Sun gear platen configuration for smooth delivery and even pressure
- Braking energy storage system reducing energy consumption by 70%
- Precision adjustable, no-gap gear mechanism
- Independent oil pump and filter lubrication system
- High-quality forged steel knife roller for excellent balance
Roller Diameter Specifications
- Center distance across knife shaft: Ø216 mm
- Diameter of front lower conveying roller: Ø156 mm
- Diameter of rear lower conveying roller: Ø156 mm
- Diameter of front platen roller: Ø70 mm
- Diameter of rear platen roller: Ø70 mm
After grinding, all rollers except those under the knife shaft are treated with hard chrome plating.
Power Motors and Electrical Parameters
- Main drive motor power: 18.5 kW, Full AC synchronous servo motor
- Feeding motors power (front and rear): 3 kW each, frequency controlled
- Lubricating oil pump motor power: 0.25 kW
Main Components and Materials
| Component Name |
Brand or Origin |
Material and Type |
| Full AC servo motor |
Shanghai Futian |
18.5 kW |
| Feeding frequency motor |
Hebei Hengshui Yongshun |
-- |
| Bearing |
HRB, ZWZ, LYC |
Up and down knife roller bearings from Japan NSK |
| Belt |
Germany OPTIBELT |
-- |
| Up sleeve |
Xianyang Chaoyue |
-- |
| Seat belt bearing |
Zhejiang Wuhuan |
-- |
| Contactors and relays |
France Schneider |
Relays of middle |
| Proximity Switch |
Japan OMRON |
-- |
| Flying shear servo control system |
-- |
-- |
| Motion control board |
Germany MKS-CT150 |
-- |
| Rotary encoder |
Wuxi Ruipu |
-- |
| Feeding drive |
Taiwan Delta |
-- |
| Human Machine Interface |
Taiwan WEINVIEW or MCGS |
-- |
| Sun gear |
China Shenzhen |
-- |
| Pneumatic components |
Zhejiang SonorCSM |
-- |
| Frequency Converter |
-- |
-- |
Applications
The Gerun Corrugated Cardboard Production Line is ideal for manufacturers seeking high-quality automatic production solutions. Available in models 1400, 1600, 1800, 2000, 2200, and 2500, this CE and ISO certified equipment from Hebei Province is designed for producing 5-layer corrugated cardboard with an effective width of 2200mm and precise cutting capabilities of ±1mm uniform and ±2mm non-uniform precision.
Customization Options
Gerun offers Automatic High Speed 3/5/7 Layers Corrugated Box Cardboard Production Lines with customizable voltage options (220v, 380v, 440v) and advanced PLC control systems. Equipment size is Lmx4.2*Wmx1.2*Hmx1.4 meters with maximum cutting length of 9999mm and highest machinery speed of 100m/min.
Support and Services
Our dedicated technical support team provides comprehensive installation guidance, on-site commissioning, operator training, routine maintenance, troubleshooting assistance, spare parts supply, software updates, and system upgrades to ensure optimal performance and minimal downtime.
Packing and Shipping
Equipment is securely packaged with protective materials and sturdy wooden crates. We offer flexible shipping options including sea freight, air freight, and land transportation, accompanied by detailed documentation for smooth installation and compliance with international standards.
Frequently Asked Questions
What are the available models for the Gerun Corrugated Cardboard Production Line?
The Gerun Corrugated Cardboard Production Line is available in the following models: 1400, 1600, 1800, 2000, 2200, and 2500.
Where is the Gerun Corrugated Cardboard Production Line manufactured?
It is manufactured in Hebei Province, China.
What certifications does the Gerun Corrugated Cardboard Production Line have?
The production line is certified with CE and ISO certifications, ensuring high quality and safety standards.
What is the minimum order quantity for the Gerun Corrugated Cardboard Production Line?
The minimum order quantity is 1 set.
What are the payment terms and delivery time for this product?
Payment is typically made via T/T (Telegraphic Transfer), and the delivery time is approximately 20 days.
How is the Gerun Corrugated Cardboard Production Line packaged for shipment?
The equipment is packaged using plastic and wood to ensure safe transportation.
What is the supply capacity for the Gerun Corrugated Cardboard Production Line?
Gerun can supply up to 100 sets per year.
How is the price determined for the Gerun Corrugated Cardboard Production Line?
The price is to be negotiated based on the specific model and customer requirements.
