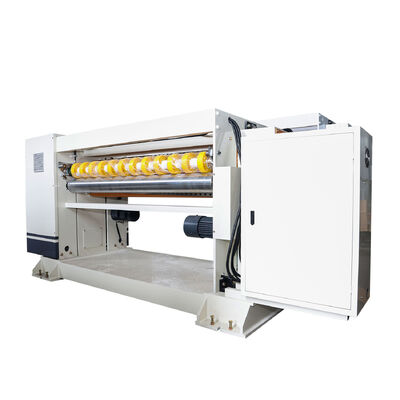

Precision Of Cutting Paper Uniform ±1mm Non-uniform±2mm Corrugated Cardboard Production Line With Computer-control Helical Cross Cutter And Equipment NC Cutter

1 Set
MOQ
To Be Negotiated
Price
Precision Of Cutting Paper Uniform ±1mm Non-uniform±2mm Corrugated Cardboard Production Line With Computer-control Helical Cross Cutter And Equipment NC Cutter
Features Gallery Product Description Request A Quote
Features
Specifications
Mechanical Configuration: Computer-control Helical Cross Cutter
Equipment Size: Lmx4.2*Wmx1.2*Hmx1.4
Control System: PLC
Highest Machinery Speed: 100m/min
Maximum Cutting Length: 9999mm
Minimum Cutting Length: 500mm
Precision Of Cutting Paper: Uniform ±1mm，non-uniform±2mm
Operation Direction: Left Or Right（determined To The Customer’s Factory）
Basic Infomation
Brand Name: Gerun
Certification: CE,ISO
Model Number: 1400/1600/1800/2000/2200/2500
Payment & Shipping Terms
Packaging Details: Plastic,wood
Delivery Time: 20 Days
Payment Terms: T/T
Supply Ability: 100 Sets/year
Product Description
Precision Corrugated Cardboard Production Line
Computer-controlled helical cross cutter with NC cutter for ±1mm uniform and ±2mm non-uniform cutting precision
Product Features
This advanced production line stores up to 200 unit orders, enabling quick cutter specification changes without stopping operations. Networked computer connectivity facilitates efficient production management.
  • Precision forged steel knife shaft drive gears with induction hardening for backlash-free transmission
  • Advanced keyless connection for high transmission accuracy
  • Spiral structure inlaid front steel blade knife with serrated edges for enhanced shearing force and extended service life
  • Sun gear platen mechanism for smooth material delivery with evenly distributed pressure
  • Braking energy storage technology reducing electricity consumption by over 70%
  • Precision adjustable no-gap gear for exact blade engagement
  • Independent oil pump and filter system with dual copper distribution
  • Fine quality forged steel knife roller for excellent balance and stability
Roller Diameter Parameters
  • Center distance across knife shaft: ￠216mm
  • Front lower conveying roller: ￠156mm
  • Rear lower conveying roller: ￠156mm
  • Front platen roller: ￠70mm
  • Rear platen roller: ￠70mm
Note: All rollers receive hard chrome plating after grinding, except for the knife shaft underside.
Power Specifications
  • Main drive motor: 18.5KW Full AC synchronous servo
  • Feed motors (before and after): 3KW each with frequency control
  • Lubricating oil pump motor: 0.25KW
Key Components & Origins
Component Brand/Origin Specifications
Full AC servo motor Shanghai Futian 18.5KW
Feeding frequency motor Hebei Hengshui Yongshun -
Bearings HRB, ZWZ, LYC; NSK (Japan) Knife roller bearings
Belt Germany OPTIBELT -
Contactors and relays France Schneider Middle relays included
Proximity switch Japan OMRON -
Motion control board Germany MKS-CT150 -
Feeding drive Taiwan Delta -
Human Machine Interface Taiwan WEINVIEW or MCGS -
Applications
Available in models 1400, 1600, 1800, 2000, 2200, and 2500 for producing 3, 5, and 7 layer corrugated paperboard sheets. CE and ISO certified from Hebei Province with annual supply capacity of 100 sets.
Features maximum cutting length up to 9999mm with customizable operation direction (left or right) to suit factory layouts. Ideal for packaging solutions across electronics, food and beverage, consumer goods, and logistics industries.
Customization Options
Customizable solutions for single facer, 3-layer, and 7-layer corrugated cardboard production lines. Features include PLC control system, computer-controlled helical cross cutter, and effective width up to 2200mm.
Minimum cutting length: 500mm. Voltage options: 220v, 380v, 440v, or custom requirements. Minimum order quantity: 1 set with 20-day delivery.
Support & Services
Comprehensive technical support including installation guidance, on-site training, routine maintenance, remote troubleshooting, and software updates. Full range of genuine spare parts and consumables available.
Packing & Shipping
Secure packaging with high-quality materials and reinforced wooden crates. Components firmly secured within containers using reliable logistics partners for safe, timely delivery.
Frequently Asked Questions
What are the available models for the Gerun Corrugated Cardboard Production Line?
Available models: 1400, 1600, 1800, 2000, 2200, and 2500.
Where is the Gerun Corrugated Cardboard Production Line manufactured?
Manufactured in Hebei Province, China.
What certifications does the production line have?
CE and ISO certified for quality and safety standards.
What is the minimum order quantity and supply capacity?
Minimum order: 1 set. Annual supply capacity: 100 sets.
What are the packaging details and delivery time?
Packaged with plastic and wood materials. Delivery time: 20 days after order confirmation.
What are the payment terms?
Accepted payment: T/T (Telegraphic Transfer).
