Product Overview

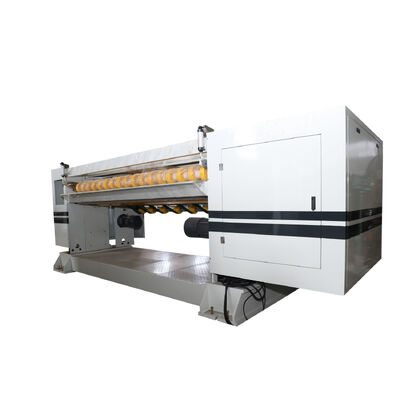

High-performance corrugated cardboard production line featuring computer-controlled helical cross cutter with maximum machinery speed of 100m/min and capacity for 3500kg weight NC cutting operations.
Key Features & Specifications
Advanced Control System
Stores up to 200 unit orders with quick, precise cutter specification replacement. Supports order changes during operation and enables production management through networked computers.
Precision Engineering
- Knife shaft drive gears made from precision forged steel with induction hardening
- Backlash-free transmission with advanced keyless connection
- Inlaid front steel blade knife with spiral structure for strong shear force
- Sun gear platen method for smooth material delivery with even pressure
- Precision adjustable no-gap gears for precise blade engagement
Energy Efficiency
Features braking energy storage system reducing electricity consumption to one-third of ordinary NC cutting machines, saving over 70% power and operational costs.
Roller Specifications
- Distance between centers on knife shaft: ø216 mm
- Diameter of front lower conveying roller: ø156 mm
- Diameter of rear lower conveying roller: ø156 mm
- Diameter of front platen roller: ø70 mm
- Diameter of rear platen roller: ø70 mm
All rollers (except knife shaft rollers) are hard chrome plated after grinding for enhanced durability.
Power & Electrical Parameters
- Main drive motor power: 18.5 kW (Full AC synchronous servo motor)
- Feeding motor power: 3 kW (Frequency controlled)
- Lubricating oil pump motor power: 0.25 kW
Component Specifications
| Component |
Brand/Origin |
Details |
| Full AC Servo Motor |
Shanghai Futian |
18.5 kW |
| Feeding Frequency Motor |
Hebei Hengshui Yongshun |
-- |
| Bearings |
HRB, ZWZ, LYC |
Up and down knife roller bearings from Japan NSK |
| Belt |
Germany OPTIBELT |
-- |
| Contactors and Relays |
France Schneider |
-- |
| Proximity Switch |
Japan OMRON |
-- |
| Motion Control Board |
Germany MKS-CT150 |
-- |
Applications
Ideal for packaging industry applications including e-commerce, food and beverage, electronics, and appliance sectors. Produces high-strength corrugated cardboard for safe transportation and storage of goods.
Available Models
Models 1400, 1600, 1800, 2000, 2200, and 2500 with CE and ISO certifications.
Configuration Options
WJ-300-2500-II type five layer corrugated roller cardboard production line and Single facer production line variant for specialized industrial requirements.
Customization Options
Automatic high speed 3/5/7 layers corrugated box cardboard production line with precision cutting accuracy of ±1mm (uniform) and ±2mm (non-uniform).
Operational Flexibility
- Left or right operation direction to suit factory layout
- Customizable voltage options: 220v, 380v, 440v
- Equipment size: Lmx4.2*Wmx1.2*Hmx1.4
- Highest machinery speed: 100m/min
Technical Support & Services
Comprehensive support including expert installation guidance, on-site commissioning, operational training, troubleshooting, maintenance advice, and spare parts supply.
Packaging & Shipping
Secure packaging with protective plastic and wood materials. Shipping via sturdy wooden crates or reinforced steel frames with flexible options including sea freight, air freight, and land transportation.
Frequently Asked Questions
What brand manufactures the Corrugated Cardboard Production Line?
Manufactured by Gerun brand.
What models are available?
Models 1400, 1600, 1800, 2000, 2200, and 2500.
Where is it produced?
Produced in Hebei Province, China.
What certifications does it have?
CE and ISO certifications.
What are payment terms and delivery time?
T/T payment terms with 20-day delivery time.
What is minimum order quantity?
Minimum order quantity is 1 set with supply ability of 100 sets per year.
For pricing and detailed technical specifications, please contact our sales team for customized quotations based on your specific production requirements.
