Automatic Stacker For Corrugated Cardboard Production Line Counting System

1
MOQ
USD1000~10,000/set
Price
Automatic Stacker For Corrugated Cardboard Production Line Counting System
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Large Gantry Stacker
Working Width: 2200mm
Design Speed: 200m/min
Economic Speed: 120-200m/min
Maximum Stacking Length: 3500mm
Maximum Height: 1700mm
Working Power: 380V 50Hz 17KW
Basic Infomation
Place of Origin: Dongguang，China
Brand Name: GERUN
Certification: ISO,CE
Model Number: GR-LGS
Payment & Shipping Terms
Packaging Details: Plastic film covering or wooden case packaging(choosed)
Delivery Time: 15~60 work days
Payment Terms: T/T
Supply Ability: 30set/month
Product Description
Automatic Stacker For Corrugated Cardboard Production Line Counting System
Product Overview

Automatic Large Gantry Stacker designed for corrugated cardboard production lines with integrated counting system functionality.

Technical Parameters
Parameter Specification

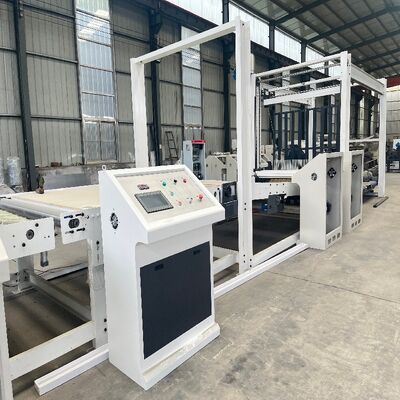

Working width 2200mm Automatic Stacker For Corrugated Cardboard Production Line Counting System 0
Design speed 200m/min
Economic speed 120-200m/min
Maximum stacking length 3500mm
Maximum stacking height 1700mm
Working power 380V 50Hz 17KW
Performance Characteristics
  • Gantry stacking with 20-second order change time and automatic counting
  • Synchronized with production management system for orders management and centralized control
  • No speed reduction required for single orders
  • Production management with less than 700mm single waste
  • Crawler stacking platform with AC servo control lifting for stable, tidy stacking
  • Automatic backsplash shifting for small order stacking
  • Independent sealed control cabinets for clean electrical equipment operation
  • Color touch-screen display for easy on-site operation
  • Fully automatic operation control to improve efficiency and reduce labor intensity
Power Specifications
Component Power Voltage Frequency
Main conveying motor 3KW×3 380V 50HZ
Suction motor 3KW 380V 50HZ
Horizontal conveyor motor 3KW 380V 50HZ
Tailgate motor 0.75KW 380V 50HZ
