Model Modularized Single Facer Hood Suction Structure HT200 Wallboard

1
MOQ
USD1000~10,000/set
Price
Model Modularized Single Facer Hood Suction Structure HT200 Wallboard
Features Gallery Product Description Request A Quote
Features
Specifications
Name: SF-360-2500 Model Modularized Single Facer
Corrugating Roller Diameter: ￠360mm
Pressure Roller Diameter: ￠370mm
Gluing Roller Diameter: ￠252mm
Diameter Of Fixed Paste Roller: ￠142mm
Preheater Diameter: ￠400mm
Highlight:

HT200 modularized wallboard machine

,

single facer hood suction structure

,

corrugated cardboard production line equipment
Basic Infomation
Place of Origin: Dongguang，China
Brand Name: GERUN
Certification: ISO,CE
Model Number: SF-360-2500
Payment & Shipping Terms
Packaging Details: Plastic film covering or wooden case packaging(choosed)
Delivery Time: 15~20 work days
Payment Terms: T/T
Supply Ability: 30set/month
Product Description

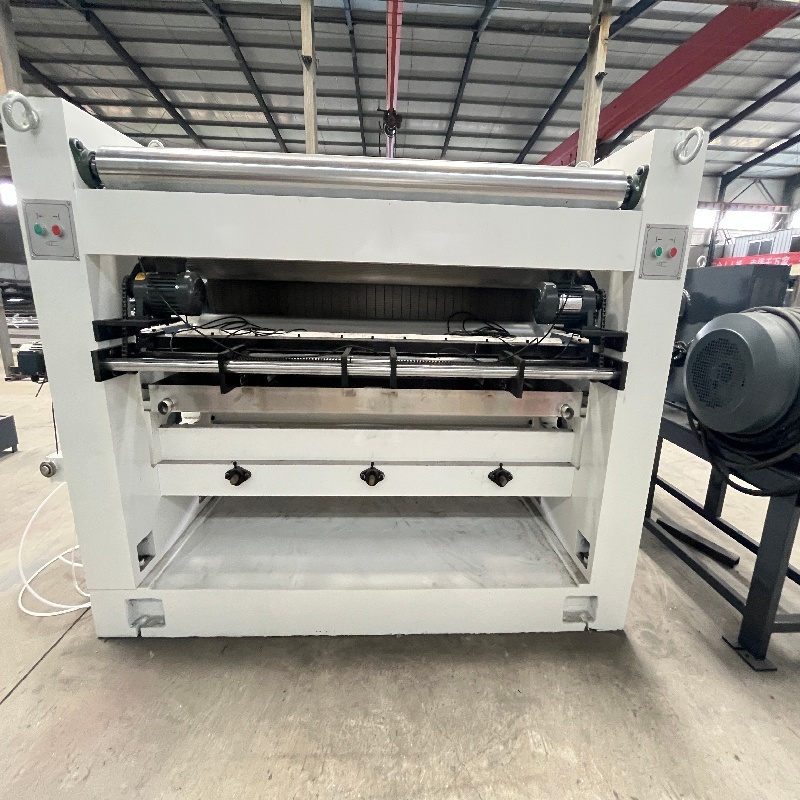

Model Modularized Single Facer Hood Suction Structure HT200 Wallboard
SF-360-2500 Model Modularized Single Facer
Structural Features

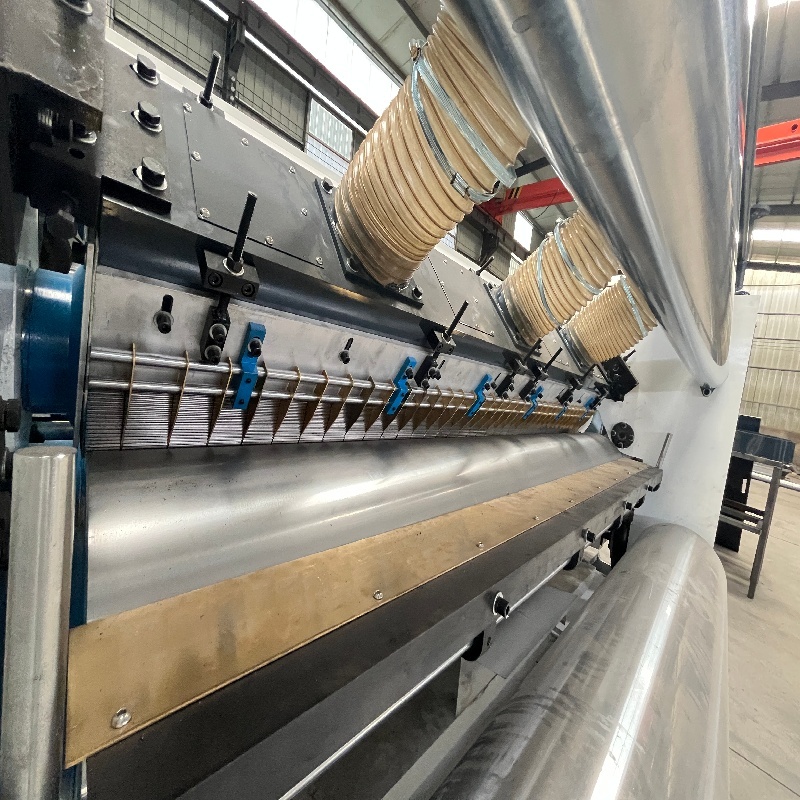

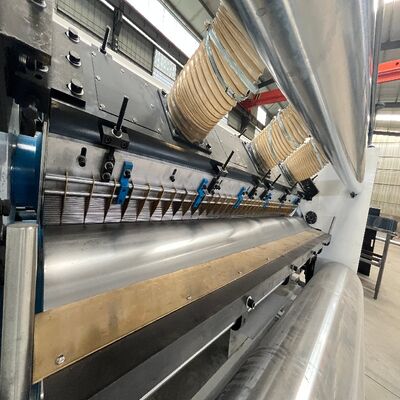

  • Hood suction structure with high-pressure powerful fan and silencer
  • Air source and electrical control concentrated in same operating cabinet, positioned at least 1.5 meters from main machine
  • Fully enclosed and covered operating side
  • Machine base and wall panels constructed from high-quality resin sand castings with 240mm wall panel thickness

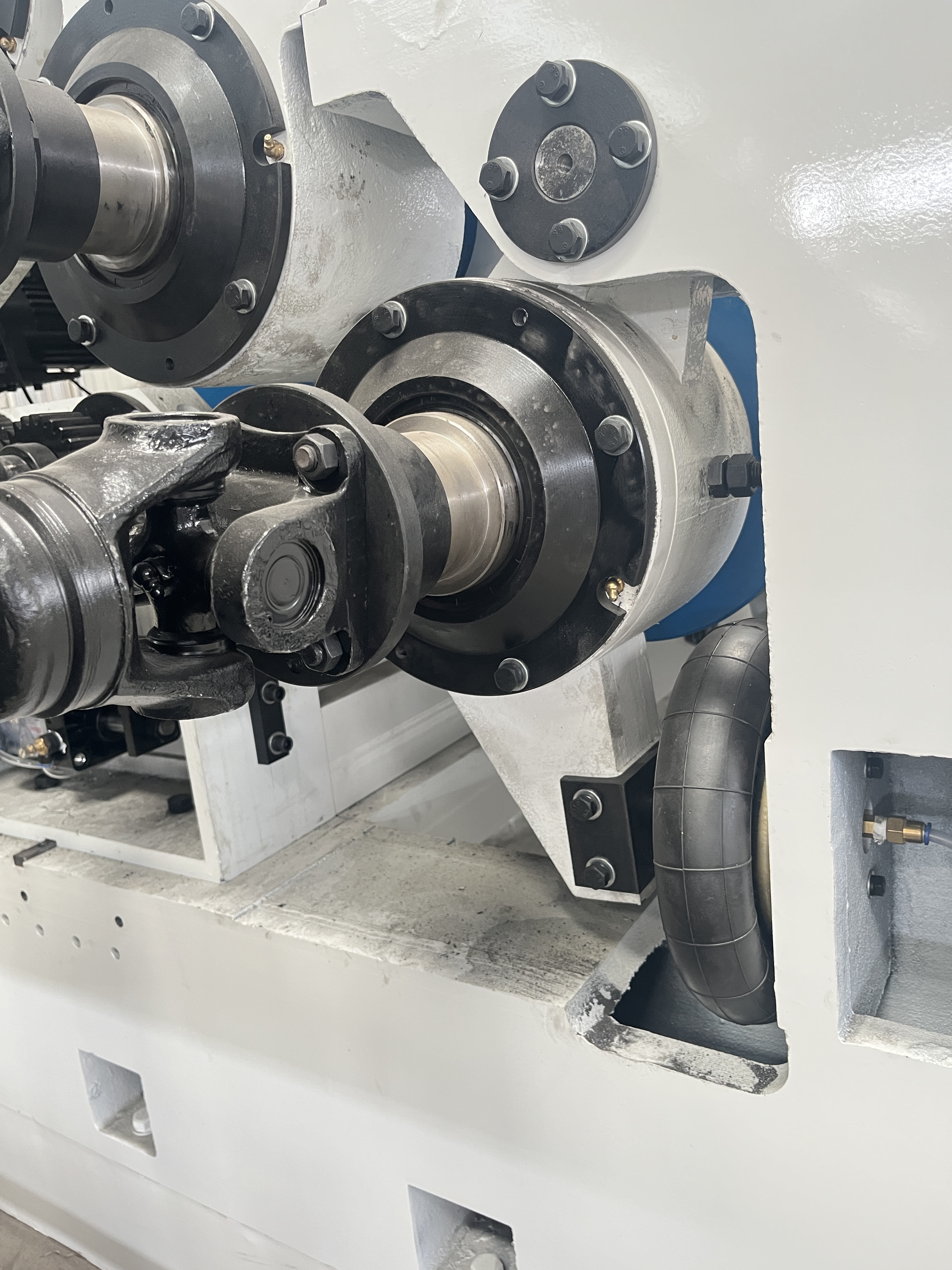

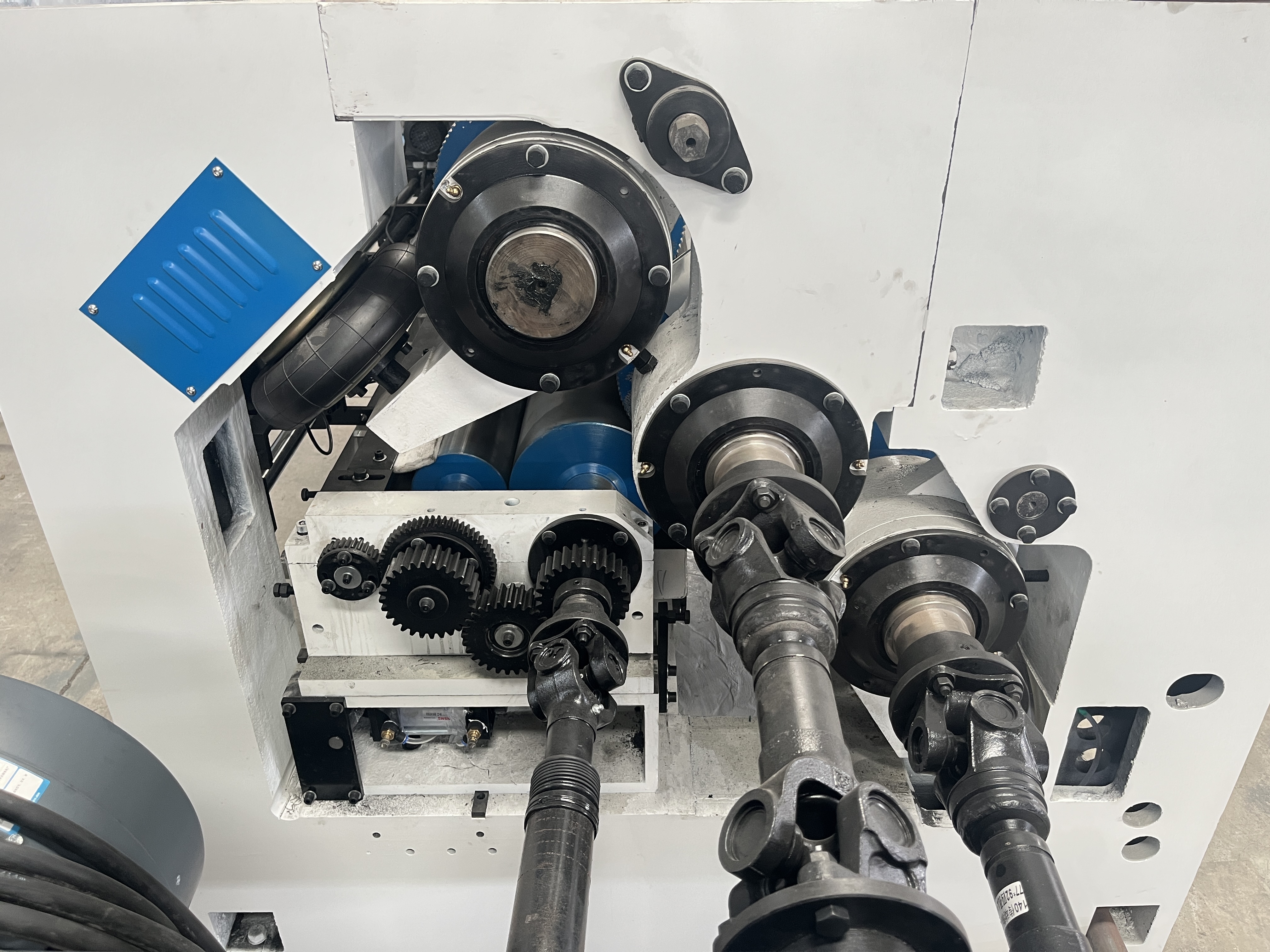

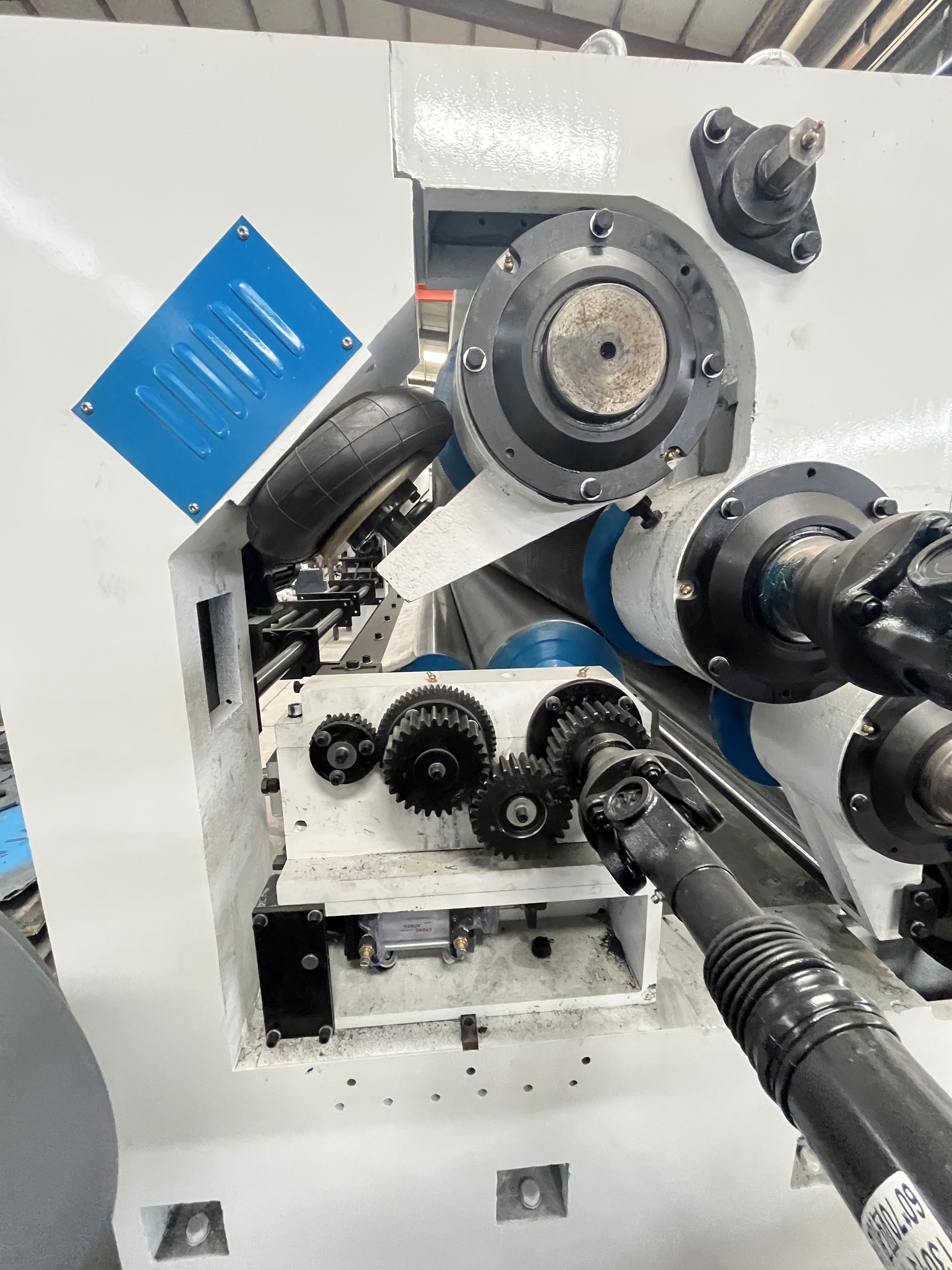

  • Independent gearbox with universal joint transmission
  • Corrugated roller made of 48CrMo alloy steel with comprehensive heat treatment and surface hardening process

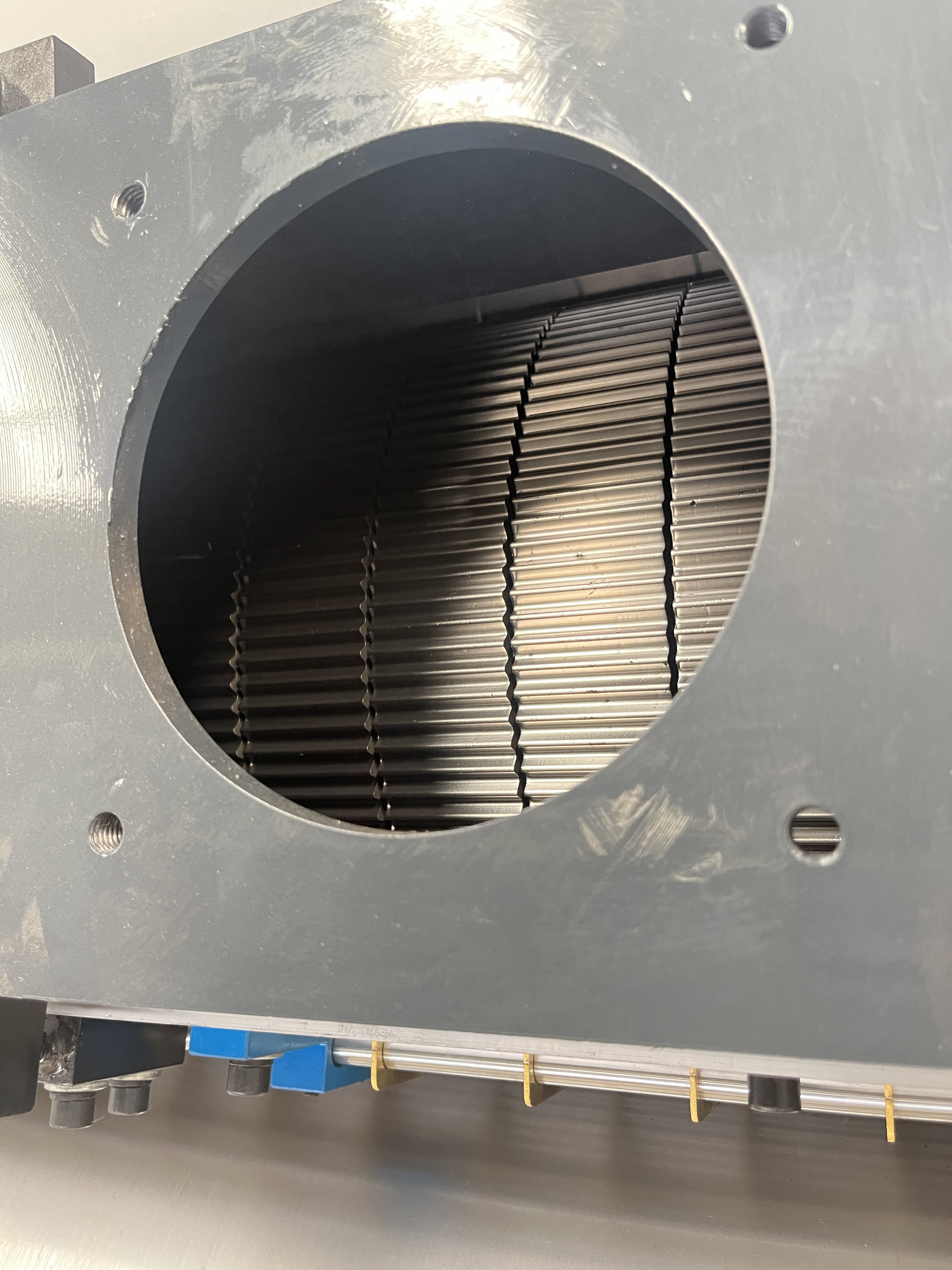

  • Corrugated roller diameter: ¢360mm with surface hardness above HRC60 degrees
  • Key roller and pressure roller bearings utilize Havalo bearings

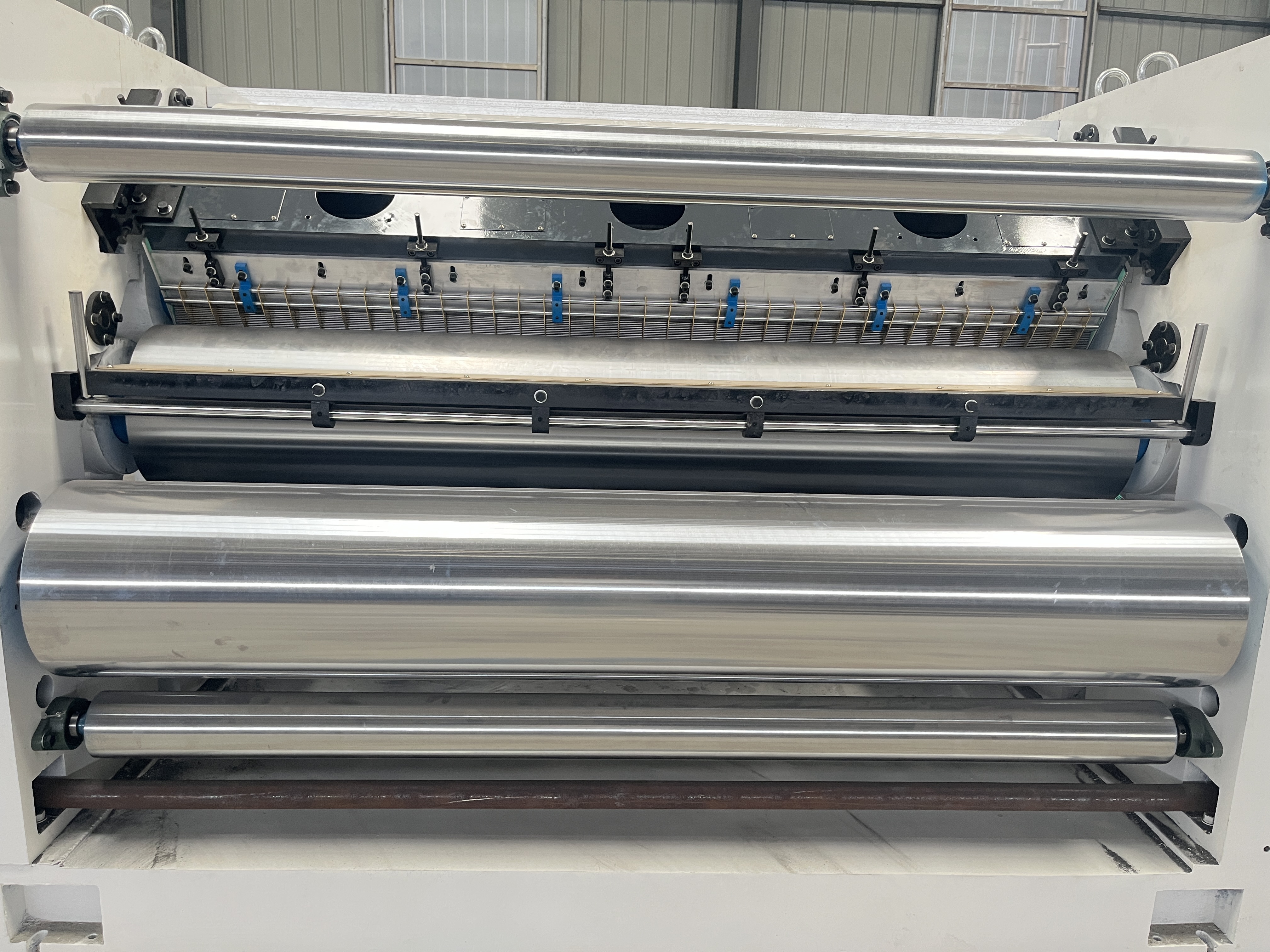

  • Pressure roller: ¢370mm, ground and chrome-plated surface, air pressure controlled movement with buffer device
  • Glue roller unit features integral skateboard structure for easy maintenance access
  • Glue roller diameter: ￠252mm with polished surface, 25-line pit-type mesh processing, and hard chrome plating
  • Scraper roller surface polished and hard chrome-plated
Parameters of Main Parts
Component Specifications
Upper & Lower Corrugated Roller Φ360mm
Pressure Roller Φ290mm, 48CrMo high quality alloy steel, quenched
Glue Roller Φ240mm, 48CrMo high quality alloy steel, surface treated with special mesh nicking and chrome-plating
Glue Scraping Roller Φ120mm, 20# seamless steel pipe, place of origin: Chengdu
Pre-heating Roller Φ320mm, 20G Jigang steel, wall thickness: 16mm
Raw Materials and Bought-in Components
  • Side Wallboards and base: casting HT200, place of origin: Hebei
  • Base of transmission parts: welded by channel, place of origin: Tangshan Hebei
Model Modularized Single Facer Hood Suction Structure HT200 Wallboard 0 Model Modularized Single Facer Hood Suction Structure HT200 Wallboard 1 Model Modularized Single Facer Hood Suction Structure HT200 Wallboard 2
Our Company
Model Modularized Single Facer Hood Suction Structure HT200 Wallboard 3 Model Modularized Single Facer Hood Suction Structure HT200 Wallboard 4
Product Packaging
Model Modularized Single Facer Hood Suction Structure HT200 Wallboard 5
Frequently Asked Questions
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
