Home /Products/Corrugated Cardboard Production Line/SF D280S 1400 Model Single Facer Corrugation Machine Hood Suction Structure Fingerless Type

SF D280S 1400 Model Single Facer Corrugation Machine Hood Suction Structure Fingerless Type

1
MOQ
USD1000~10,000/set
Price
SF D280S 1400 Model Single Facer Corrugation Machine Hood Suction Structure Fingerless Type
Features Gallery Product Description Request A Quote
Features
Specifications
Name: SF-280-1400 Model Modularized Single Facer
Corrugating Roller Diameter: ￠360mm
Pressure Roller Diameter: ￠370mm
Gluing Roller Diameter: ￠252mm
Diameter Of Fixed Paste Roller: ￠142mm
Preheater Diameter: ￠400mm
Highlight:

Single Facer Corrugation Machine

,

Fingerless Type Corrugation Machine

,

Hood Suction Corrugation Machine
Basic Infomation
Place of Origin: Dongguang，China
Brand Name: GERUN
Certification: ISO,CE
Model Number: SF-280-1400
Payment & Shipping Terms
Packaging Details: Plastic film covering or wooden case packaging(choosed)
Delivery Time: 15~20 work days
Payment Terms: T/T
Supply Ability: 30set/month
Product Description

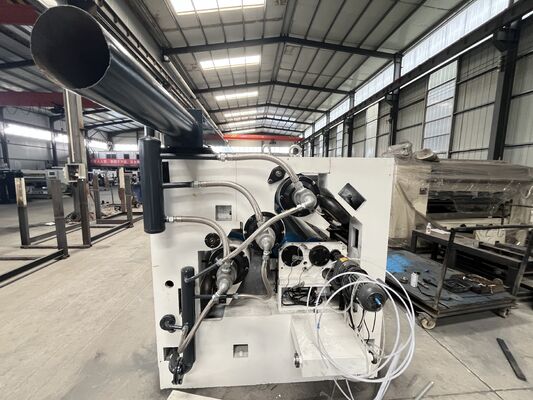

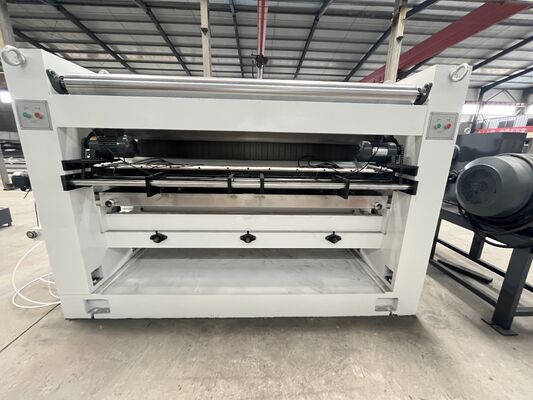

SF D280S 1400 Model Single Facer Corrugation Machine

Hood suction structure fingerless type corrugation machine designed for high-speed production stability and superior performance.

Structural Features

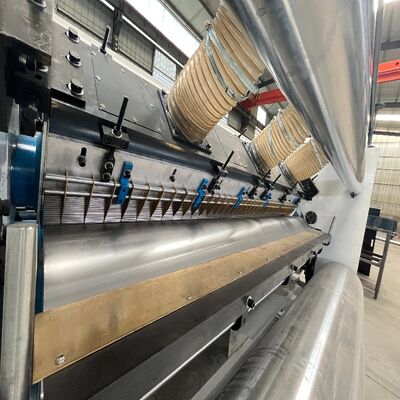

  • Wind adsorption paper guiding maintains flute stability during high-speed operation

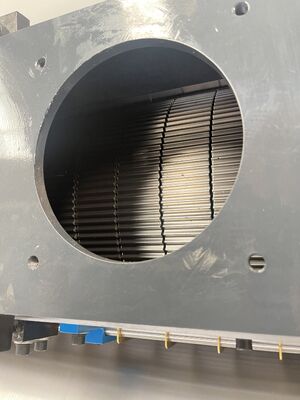

  • 180° negative pressure zone created by vacuum box and fan for precise corrugated paper rolling
  • Narrow suction slot (≤2.6mm) minimizes stripe marks on single side corrugated cardboard

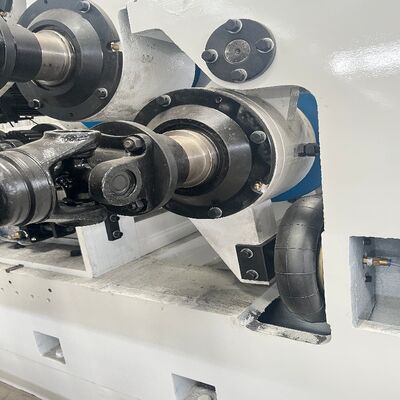

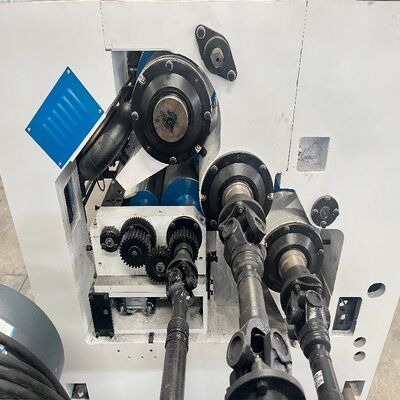

  • Universal joint transmission separates vibration source for enhanced maintainability and reliable operation

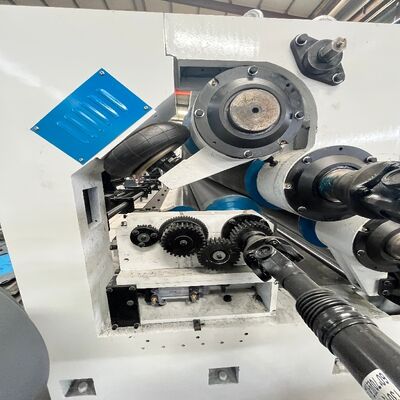

  • Oil bath lubrication with closed gear transmission reduces machine vibration
  • Auto-cycle glue supply with pneumatic control provides buffering effect
  • Special mesh nicking and chrome-plating treatment on glue roller surface
  • 48CrMo high-quality alloy steel corrugated rollers with HRC58-62 hardness after heat treatment
  • Customizable flute profiles available to meet specific customer requirements
Main Component Parameters
Component Specifications Material/Features

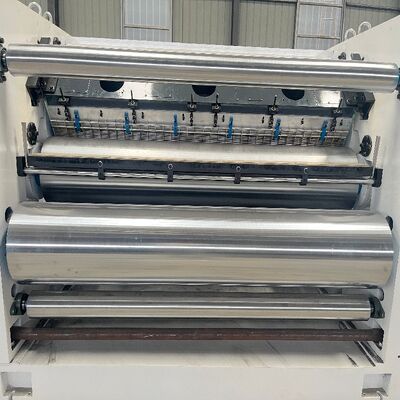

Upper & Lower Corrugated Roller Φ280mm 48CrMo high-quality alloy steel
Pressure Roller Φ290mm 48CrMo high-quality alloy steel, quenched
Glue Roller Φ240mm 48CrMo high-quality alloy steel, special mesh nicking and chrome-plating
Glue Scraping Roller Φ120mm 20# seamless steel pipe (Chengdu origin)
Pre-heating Roller Φ320mm 20G Jigang steel, 16mm wall thickness
Raw Materials & Components
  • Side Wallboards and Base: Casting HT200 (Hebei origin)
  • Transmission Parts Base: Channel welded construction (Tangshan, Hebei origin)
SF D280S 1400 Model Single Facer Corrugation Machine Hood Suction Structure Fingerless Type 0
