Features

Specifications

Working Width: 1600mm

Design Speed: 150m/min

Economic Speed: 180-230m/min

Hot Plate Number: 600mm X 10piece

Cooling Section Length: 5m

Temperature Requirements: 160-200℃

Steam Pressure: 0.8-1.3Mpa

Air Pressure: 0.5-0.6Mpa

Pneumatic Pressure Plate: 13 Groups

Working Power: 380V 50Hz 90KW

Highlight:

Double facer pressing plate for corrugated cardboard

Hot plate for cardboard production line

Corrugated line double facer with hot plate

Basic Infomation

Place of Origin: Dongguang，China

Brand Name: GERUN

Certification: ISO,CE

Model Number: GR

Payment & Shipping Terms

Packaging Details: Plastic film covering or wooden case packaging(choosed)

Delivery Time: 30-60days

Payment Terms: T/T

Supply Ability: 30set/month

Gallery

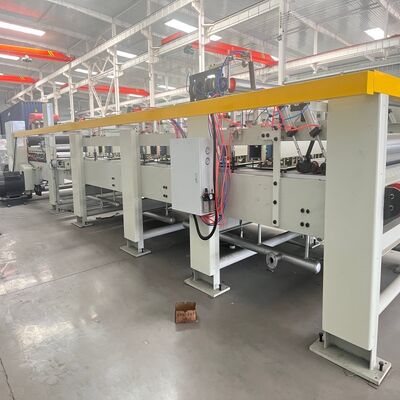

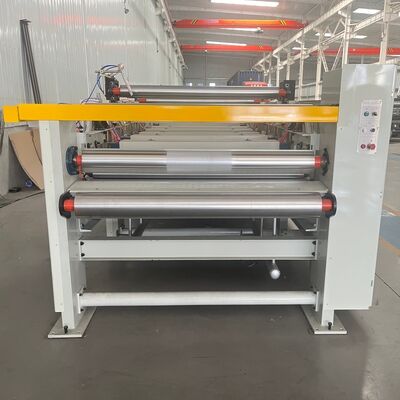

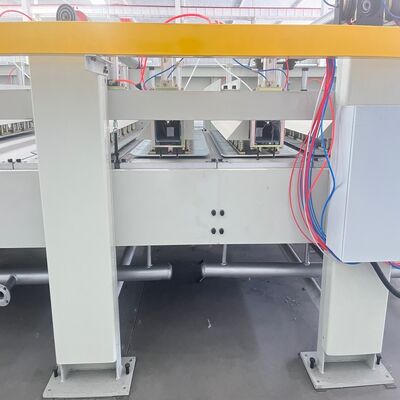

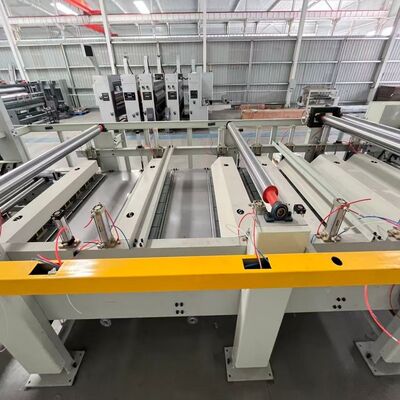

Double Facer For Corrugated Cardboard Production Line Pressing Plate Hot Plate

Product Description

Double Facer for Corrugated Cardboard Production Line

The double facer, also known as the double backer, serves as the forming hub of a corrugated board production line. This critical equipment bonds single-face corrugated board with a liner (face sheet) and presses them into sturdy double-wall or multi-wall corrugated board, determining the final physical strength and quality of the finished product.

Core Function: Transforming Semi-Finished to Finished Product

While the single facer produces corrugated medium with one liner attached (single-face board), the double facer completes the manufacturing process:

Bonding and Curing: Applies adhesive to flute tips and precisely laminates with another liner
Shaping and Pressing: Applies pressure and heat through heated plates to gelatinize and cure adhesive, forming stable arch bridge structures

Key Performance Specifications

Effective Width	1600mm
Design Production Speed	150m/min
Three Layer Economic Speed	200-230m/min
Longitudinal Separation Accuracy	±1mm
Cross-Cutting Precision	±1mm

Technical Parameters

Working Width	1600mm
Design Speed	150m/min
Economic Speed	120-130m/min
Hot Plate Configuration	600mm × 10 pieces
Cooling Section Length	5 meters
Temperature Requirements	160-200℃
Steam Pressure	0.8-1.3Mpa
Air Pressure	0.5-0.6Mpa
Pneumatic Pressure Plate	13 groups
Working Power	380V 50Hz 90KW

Structural Features

★The double-sided machine laminates glued single-sided corrugated paper with facial paper using heated platen heating for glue paste application and stereotyping to produce flat cardboard.

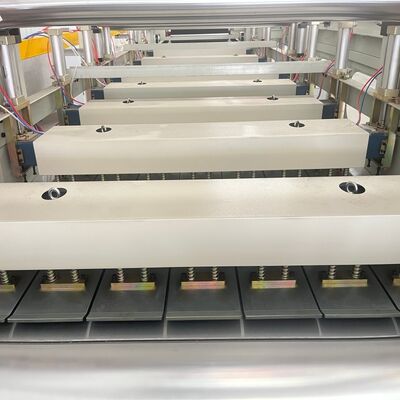

★Hot plate surface is ground finished, with 18 pieces total at 600mm width each, featuring 5-meter cooling stereotypes. Hot plates use container board construction with enclosed pressure certification.

★Internal thermal panels feature partition isolation structure with S-shaped steam flow and steam-water separation for improved efficiency.

★Pneumatic pressure plate structure with 14 sets of spring pneumatic pressure plates as standard.

★Multi-section temperature control with display for heating plate heat pipes.

★Upper cotton webbing with automatic centering and double cylinder S-shaped tensioning device.

★Lower belt with pneumatic tensioning and automatic/manual correction alignment.

★Independent gearbox drive unit with ZG-500 steel gears and oil-immersed lubrication.

★International brand electrical components for stable, reliable operation.

★Frequency energy main drive motor with low-speed torque and wide speed range.

★High-intensity profile main backbone with solid construction suitable for high-speed operation.

Main Component Parameters

Part Name	Specification	Surface Treatment

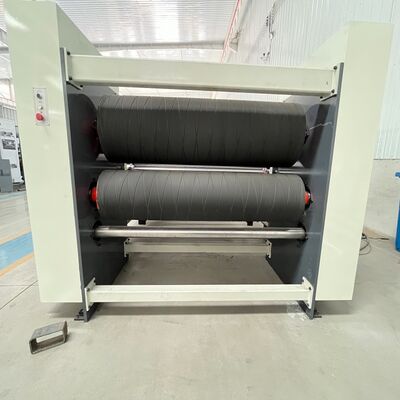

Upper Drive Rubber Roller	￠800mm	Wear-resistant rubber cover
Lower Drive Rubber Roller	￠600mm	Wear-resistant rubber cover
Front/Rear Driven Belt Roller	￠215mm	Chrome plating polishing
Top Tension Roller	￠155mm	Chrome plating polishing
Upper Belt Adjustment Roller	￠130mm	Chrome plating polishing

Equipment Gallery

Packing and Shipping

Equipment is packaged with moisture-proof and shock-proof materials suitable for long-distance road transportation and various weather conditions. Complete set of maintenance and operation manuals included with each shipment.
