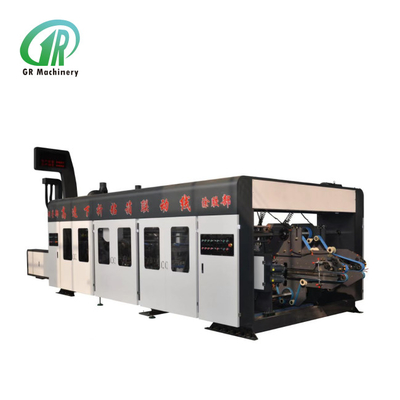

FFG Flexo Printing Folding Gluer Case Making Machine Mesh Hole Large Glue Wheel System

Flexo Folding Gluer Carton Production Line

Purpose and Features:

• CNC control system, fault display, production control, remote maintenance.
• Automatic detection and positioning system, fast plate loading drive system, quick plate change.
• Widened dust box, anti-static device, central dust collection, pressure protection, effective dust removal.
• Adopts alloy steel precision ground gears for suction wheel transmission and drive to ensure accuracy and longevity.
• Double-seat "forming, slotting" with precise guiding and regulating wheel system, explosion-proof wire, excellent folding and forming effects.
• "Up and down" high-speed paper stacking and recycling collection system, protecting against surface abrasion, high production efficiency.
• Electrical components, transmission bearings, etc., use international brands, certified by European CE.

Counting Output Unit:

• "Up and down" collection system to effectively protect against surface abrasion, high production adaptability.
• High-frequency box correction, fan-assisted paper dropping, pneumatic flattening, circulating transmission.
• Multi-servo drive control high-speed counting stacking recycling collection system, ensuring high productivity.
• Conveyor belt output for counting unit, paper pressing roller assist, electrically adjustable paper gap.
• Horizontal movement electric adjustment for counting output unit.

Folding Unit:

• Extended high-strength folding box bridge arm to ensure folding accuracy and high-speed stability.
• Uses linear guide synchronous lateral movement system, with a high-strength bridge support in the middle for smooth displacement.
• Elastic guiding roller system with adjustable clearance, protecting against compression damage, effectively solving paper jam issues.
• Folding shaping guiding wheel system, with guide bars for assistance, good folding effect with upper and lower belt clamping conveyance.
• Rear suction belt transmission, independently driven motor on both sides for correcting deviations effectively.

Transfer Unit:

• CNC linked control, convenient and fast adjustment.
• Elastic guiding pressure roller device, upper and lower belt clamping transmission.
• Multiple debris removal devices: air knife, brush, electric roller brush, excellent debris removal effect.
• Constant temperature adjustable gluing system, maintaining consistent glue temperature for optimal bonding characteristics.
• Mesh hole large glue wheel system, stable gluing, controlled glue amount, electrically adjustable position.

         Mechanical configuration of packaging department:

           (1), Taizhou Haoli reducer

           (2), AirTAC cylinder, solenoid valve

           (3), Guangdong Duffy power transmission shaft

           (4), Bearing Harbin

          Electrical configuration:

           (1), Panasonic PLC

           (2), Siemens contactor

           (3), Schneider button

           (4), switching power supply: Taiwan MEAN WELL

           (5), Photoelectric switch Beifuning

           (6), Relay Omron

           (7) Human-machine interface Kunlun Tongtai

Cangzhou Gerun Machinery Co., Ltd. With a professional team dedicated to research and development as well as after-sales service, the company is committed to the research, development, and manufacturing of digital intelligent high-end printing equipment.

Gerun has always adhered to the mentality of "always benefiting others" and provided competitive corrugated printing solutions and services. We continuously create optimal value for customers and strive to build an industry legend. We are com mitted to being pragmatic and realistic, relying on what we see. We vow to become the industry leader and have been working hard towards that goal.
