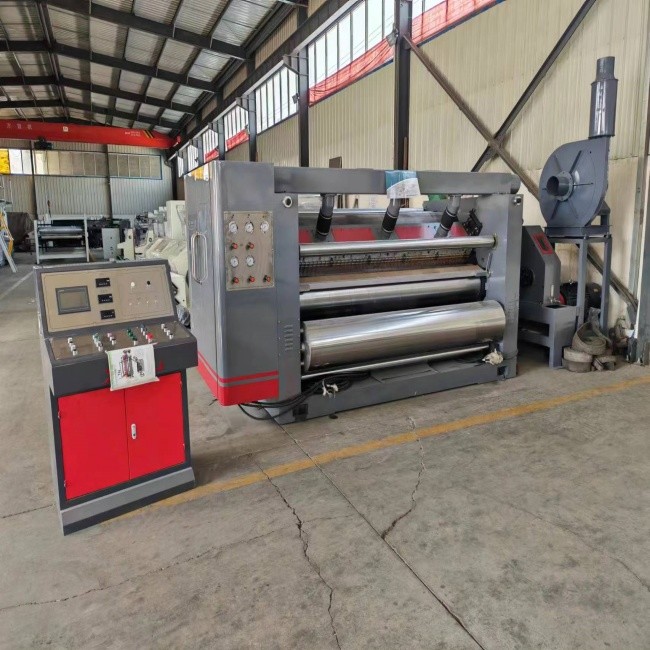

SF-360-2500 Model Modularized Single Facer Hood Suction Structure

SF-360-2500 Model Modularized Single Facer

Structural features:

• The hood suction structure is adopted, and it is equipped with a high-pressure powerful fan. The air suction is equipped with a silencer. The air source and electrical control are concentrated in the same operating cabinet, which is not less than 1.5 meters away from the main machine. The operating side is fully enclosed and fully covered.
• The machine base and wall panels are made of high-quality resin sand castings, and the wall panel thickness is 240mm. Independent gearbox, universal joint transmission.
• The corrugated roller is made of 48CrMo alloy steel, which is quenched and tempered → rough turning → inner hole fine boring → shaft head baking → welding → tempering stress relief → fine turning → rough grinding → medium frequency quenching → CNC grinder fine grinding → tungsten carbide treatment; the diameter of the corrugated roller is ¢ 360mm, and the surface hardness is above HRC60 degrees. The bearings of the key parts of the roller and pressure roller are Havalo bearings.
• The pressure roller is ¢ 370mm, the surface is ground and chrome-plated; the air pressure controls the up and down movement, and the material is medium carbon steel No. 45, quenched and tempered (with a buffer device).
• The glue roller unit adopts an integral skateboard structure, which can be moved out of the machine for maintenance during maintenance, which improves work efficiency; the glue roller has a diameter of ￠252mm, and the surface is polished and engraved with 25 lines of pit-type mesh processing and then hard chrome-plated. The surface of the scraper roller is polished and hard chrome-plated.

Technological parameter:

1. Working width: 2500mm

2. Operation direction: left or right (determined by the customer's factory)

3. Design speed: 180m/min Working speed: 120-150m/min

4. Temperature range: 160-200℃

5. Air source: 0.4-0.9Mpa

6. Steam pressure: 0.8-1.3Mpa

7. Corrugated flute type (A, B, C, E or UV optional)

Motors parameter:

1. Main motor: 30KW Rated voltage: 380V 50Hz Continuous (S1) working mode

2. Suction motor: 18KW Rated voltage: 380V 50Hz Continuous (S1) working mode

3 Glue adjustment reducer; 100W Rated voltage: 380V 50HZ Continuous (S2) working mode

4 Glue adjustment gap motor; 250W Rated voltage: 380V 50HZ Continuous (S2) working mode

5 Glue pump motor: 2.2KW Rated voltage: 380V 50Hz Continuous (S1) working mode

Rollers parameter:

1. Corrugating roller diameter: ￠360mm

2. Pressure roller diameter: ￠370mm

3. Gluing roller diameter: ￠252mm

4. Diameter of fixed paste roller: ￠142mm

5. Preheater diameter: ￠400mm

Main parts:
