Preheater For Corrugated Cardboard Production Line Improving Board Quality

MOQ

USD500~1,000/set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Preheater

Working Width: 1800mm

Roller: φ900mm

Wrapping Angle Area: 360°

Angle Shaft Diameter: φ128mm X 2

Steam Temperature: 180 ℃

Steam Pressure: 1.2Mpa

Working Power: 380V 50Hz 3PH

Motor Power: 250W Short（S2） Working System

Highlight:

Improving Board Quality Preheater

Corrugated Cardboard Production Line Preheater

Board Quality Preheater

Basic Infomation

Place of Origin: Dongguang，China

Brand Name: GERUN

Certification: ISO,CE

Model Number: GR

Payment & Shipping Terms

Packaging Details: Plastic film covering or wooden case packaging(choosed)

Delivery Time: 10~20 work days

Payment Terms: T/T

Supply Ability: 30set/month

Gallery

Preheater For Corrugated Cardboard Production Line Improving Board Quality

Product Description

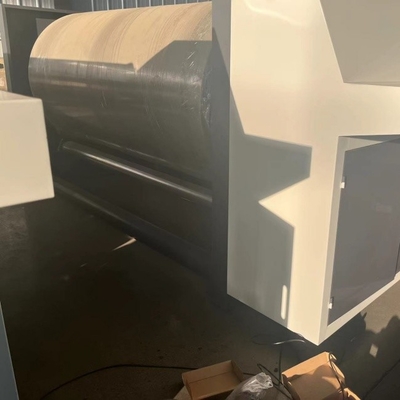

Top(core)paper preheater

A,Technical parameters:

Working wide	1800mm	Roller ￠900mm, including pressure vessel certificate. Adjust the wrap angle electrically. The wrap angle can adjust the heated area of the paper within 360°
Diameter of preheat roller	￠900mm
Angle adjustment range	360°
Angle shaft diameter	￠128mm×2
Steam temperature	180℃
Steam pressure	1.2Mpa
Working power	380V 50Hz 3PH
Motor power	250W short(S2)working system

B,Structural feature:

★Used for preheating single-sided corrugated paper and tissue paper to increase temperature, facilitate bonding, control moisture, and smooth cardboard.

★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.

★Electric adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.

★The preheating roller adopts the flat head design, which complies with the national standard of Class I pressure vessels, and is accompanied by a pressure vessel certificate.
