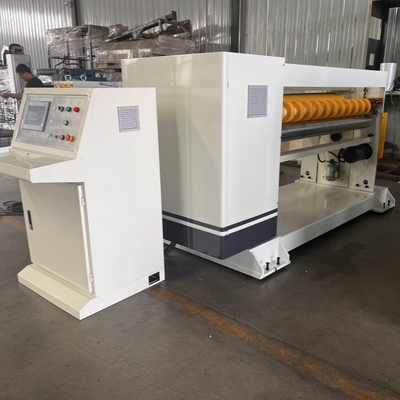

NC-100 NC cutter helical knives
Structural feature:
- It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orderswithout stop,And enables networked computers to facilitate production management.
- Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
- Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life
- Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage
- This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money .
- Precision adjustable no gap gear to ensure precise blade engagement, running balance.
- Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling
- Knife roller: fine quality forged steel material, the balanced, with good stability.
Roller diameter parameters:
- Cross on the knife shaft center distance:￠216mm
- Before the lower conveying roller diameter ￠156mm
- After the lower conveying roller diameter: ￠156mm
- The front of the platen roller diameter: ￠70mm
- The front of the platen roller diameter: ￠70mm
Note: After all have been grinding rollers, hard chrome plated at (on except under the knife shaft) dealing
Power motors and electrical parameters:
- main drive motor power:18.5KW Full AC synchronous servo
- Before and after feeding motor power:3KW(Frequency Control)
- Lubricating oil pump motor power:0.25KW
Mainly purchased parts, raw materials and origin:
| Name of main parts |
Brands or place of origin |
Material and type |
| Full AC servo motor |
Shanghai futian |
18.5KW |
| Feeding frequency motor |
Hebei hengshui yongshun |
|
| bearing |
HRB,ZWZ,LYC |
Up and down the knife roller bearings from Japan NSK |
| belt |
Germany OPTIBELT |
|
| Up sleeve |
Xianyang chaoyue |
|
| Seat belt bearing |
Zhejiang wuhuan |
|
| Contactors and relays, relays of middle |
France Schneider |
|
| Proximity Switch |
Japan OMRON |
|
| Flying shear servo control system |
America Emerson |
|
| Motion control board |
Germany MKS-CT150 |
|
| Rotary encoder |
Wuxi ruipu |
|
| Feeding drive |
Taiwan delta |
|
| Human Machine Interface |
Taiwan WEINVIEW or MCGS |
|
| Sun gear |
China shenzhen |
|
| Pneumatic components |
Zhejiang sonorCSM |
|
| Frequency Converter |
Siemens |
|
Machine details picture
Operation
操作
① Turn on—启动
② E-STOP—急停
③ Turn off—关机
④ Manual/Automatic—手动/自动
⑤ Speed adjustment—速度调节
Change the operation language:English or 中文(Chinese)
Turn on the main power supply
Click the “Turn on”button
In automatic mode, the machine needs to be connected to a double facer, and the machine will automatically control the running speed.
In manual mode, the operating speed is manually adjusted through the potentiometer. (The operating speed should be slightly higher than the production line speed)
Click the NC cutting control
Setting the “Processing Length”and“Processing Quantity”.
Click the “NC cutting start”,Speed up,The machine will start working.
Setting the new“Processing Length”and“Processing Quantity”,Will change the order.
