Fully Hydraulic Type Mill Roll Stand 1400mm Including Two Trolleys And Two Tracks

MOQ

USD1000~10,000/set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Hydraulic Type Mill Roll Stand

Model: 1400mm

Paper Carry Width: 800-1400mm

Paper Carry Diameter: Max Φ1500mm

Max Loading Weight For Single Side: Max 2000kg

Main Roller Diameter Of Paper Shaft: Φ242mm

Air Source Working Pressure: 0.6 - 0.8 Mpa

Working Power Supply: 440v/3phase/50hz

Machine Dimension: 3.8x1.6x1.65m

Working Pressure: 16-18 MPa

Motor Power In Hydraulic Station: 5KW. Short-term (S2) Working Pattern

Highlight:

1400mm Mill Roll Stand

Fully Hydraulic Mill Roll Stand

Two Tracks Mill Roll Stand

Basic Infomation

Place of Origin: Dongguang，China

Brand Name: GERUN

Certification: ISO,CE

Model Number: GR

Payment & Shipping Terms

Packaging Details: Plastic film covering or wooden case packaging(choosed)

Delivery Time: 15~20 work days

Payment Terms: T/T

Supply Ability: 30set/month

Gallery

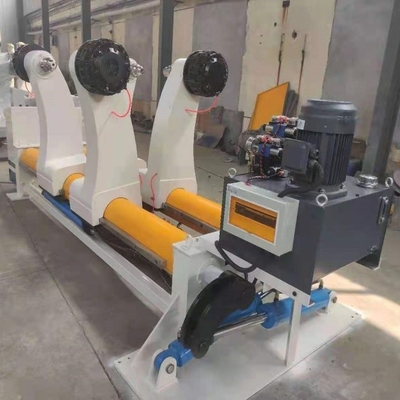

Fully Hydraulic Type Mill Roll Stand 1400mm Including Two Trolleys And Two Tracks

Product Description

Fully Hydraulic Type Mill Roll Stand 1400mm

Symmetric structure can install two bundle of paper tube at the same time, can change paper assignments without stopping .

Adopts full hydraulic drive to complete the original paper clamping, loosen, move on to match and translation to right & left these motions and so on, original paper lifting adopts hydraulic drive.

With two-stage inflatable paper carrying head , paper carrying head is 34 inch double type.

Multipoint pneumatic brakes.

Fully Hydraulic Type Mill Roll Stand 1400mm Including Two Trolleys And Two Tracks 0

Original paper shaft motion type	full hydraulic type motion
Working size	1400mm
Paper carry width	max 1400mm, min 800mm
Paper carry diameter	max Φ1500mm
Max loading weight for single side	max 2000 Kg
Main roller diameter of paper shaft	Φ242mm
Air source working pressure	0.6 - 0.8 Mpa
Working power supply	440v/3phase/50hz
Machine dimension	3.8x1.6x1.65m

Working pressure	16-18 MPa
Working range of hydraulic cylinder (lifting)	Φ125 x440 mm
Working range of hydraulic cylinder (clamping/translation)	Φ80 x800 mm
Motor power in hydraulic station	5KW. Short-term (S2) working pattern
The rated voltage and frequency	380V , 50Hz
Solenoid valve working power in hydraulic station	220 V , 50 Hz

Fully Hydraulic Type Mill Roll Stand 1400mm Including Two Trolleys And Two Tracks 1
