Name: High Speed 2200mm NC Cutter Corrugated Cardboard Production Line
Brand: Cangzhou Gerun Machinery Co.,Ltd
SKU: GR-NC Cutter
Price: 55.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Name: High Speed 2200mm NC Cutter

Working Width: 2200mm

Design Speed: 200m/min

Economic Speed: 130-200m/min

Min. Cutting Length: 500mm

Max. Cutting Length: 9999mm

Cutting Accuracy: ±1mm

Working Power: 380V 50Hz 53KW

Highlight:

NC Cutter Corrugated Cardboard Production Line

High Speed Corrugated Cardboard Production Line

2200mm Corrugated Cardboard Production Line

Basic Infomation

Place of Origin: Dongguang，China

Brand Name: GERUN

Certification: ISO,CE

Model Number: GR-NC Cutter

Payment & Shipping Terms

Packaging Details: Plastic film covering or wooden case packaging(choosed)

Delivery Time: 25-60days

Payment Terms: T/T

Supply Ability: 30set/month

Gallery

High Speed 2200mm NC Cutter Corrugated Cardboard Production Line

Product Description

High Speed 2200mm NC Cutter Of Corrugated Cardboard Production Line

A,Technical parameters:

Working width	2200mm
Design speed	200m/min
Economic speed	130-200m/min
Min. cutting length	500mm
Max. cutting length	9999mm
Cutting accuracy	±1mm,
Working power	380V 50Hz 53KW

B,Structural feature:

★It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orders without stop,And enables networked computers to facilitate production management.

★Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.

★Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life.

★Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage.

★This type of brake is energy storage type (non-energy brake), so in the process of production, the average power consumption is 1 / 3 of that of the ordinary NC cutting machine, saving more than 70% of electricity and achieving the goal of saving money.

★Exact and adjustable no gap gear to ensure precise blade engagement, running balance.

★Independent oil pump and filter are used to distribute two sets of copper pipes in each gear position to feed oil, lubricate and cool.

★Knife roller: fine quality forged steel material, the balanced, with good stability.

C,Main dynamic parameters:

Part name Craftsmanship	Specification	Surface treatment	Special treatment
Cross cutting the upper and lower knife axis	￠215mm	Conditioning	Dynamic balance
Front lower conveying roller	￠155mm	Round grinding chrome plating polishing	Dynamic balance
Rear lower conveyor roller	￠155mm	Round grinding chrome plating polishing	Dynamic balance
Paper shaft	￠165mm	Wrapped silicone	Dynamic balance

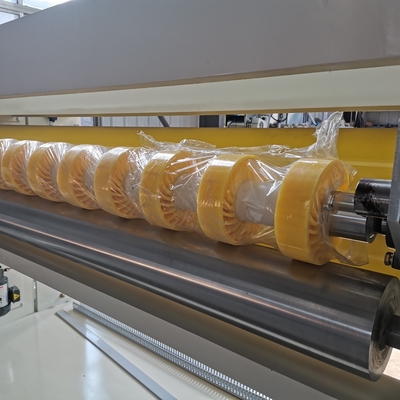

Output sun gear	￠160mm	Polyurethane	Intensive

D,Main dynamic parameters:

Name	Power	Voltage	Frequency
Main drive servo motor	42.9KW	380V	50HZ
Front feed motor	2.2KW(Frequency adjustment speed)	380V	50HZ
Rear feed motor	2.2KW(Frequency adjustment speed)	380V	50HZ

E,Main parts brand and origin:

Serial number	Name of main parts	Brands or place of origin	Remarks
01	Box rack	Self-produced	HT250
02	Knife roll	Tiangang Precision Forging	42CrMo
03	Full AC servo motor	Shanghai Futian	42.9KW
04	Paper frequency conversion motor	HeBei YongShun
05	Flying shear servo control system	INVT
06	Motion control board	Germany MKS-CT150
07	Rotary encoder	Germany SIKI
08	Timing belt	Obi, Germany OPTIBELT
09	Tightening sleeve	XianYang ChaoYue
10	Bearing with seat	ZheJiang
11	Low-voltage electrical appliances	SIEMENS	Contactor, relay, button
12	Proximity switch	Omron Japan OMRON
13	Frequency converter	Detal
14	HMI	Kunlun State
15	Sun gear	ShenZhen

Our company

Product packaging

FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
