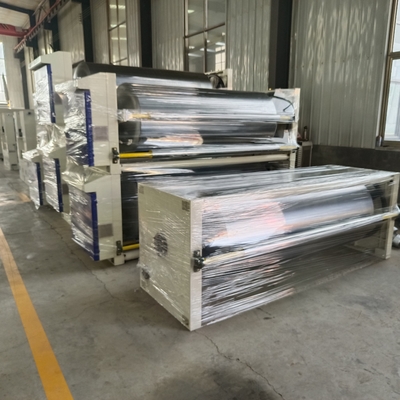

Preheater Of Corrugated Cardboard Production Line
A,Technical parameters:
| Working wide |
2200mm |
|
| Diameter of preheat roller |
￠900mm |
| Angle adjustment range |
0-270° |
| Angle shaft diameter |
￠128mm×2 |
| Steam temperature |
180℃ |
| Steam pressure |
1.2Mpa |
| Working power |
380V 50Hz 3PH |
| Motor power |
250W short(S2)working system |
B,Structural feature:
|
★Used for preheating single-sided corrugated paper and tissue paper to increase temperature, facilitate bonding, control moisture, and smooth cardboard.
★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
★Electric adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.
★The preheating roller adopts the flat head design, which complies with the national standard of Class I pressure vessels, and is accompanied by a pressure vessel certificate.
|
C,Mainly purchased parts, raw materials and origin:
| Serial number |
Name of main parts |
Brands or place of origin |
Remarks |
| 01 |
Framework |
Tang Steel Profile |
Welded parts stress relief |
| 02 |
Steam rotation joint |
Quanzhou yujie |
|
| 03 |
Preheater |
Hangang or jigang |
Q235Bpressure container board |
| 04 |
Seat belt bearing |
FuJian Fu Shan |
|
| 05 |
RV Reducer |
ShanDong DeZhou |
RV75 |
| 06 |
Main electrical appliances |
SIEMENS |
Contactor, relay, button |
| 07 |
Trap |
Armstrong, United States |
Float |
| 08 |
|
|
|
D,Operating instruction
Left/Right:Manual Angle wrapping adjustment
Steam value Open:Steam value switch
Setting temperature:Manually enter the temperature you want
Steam temperature:Current machine temperature
Automatic temperature control:After turning on this switch, the machine will automatically adjust according to the setting temperature
Angle display:Displays the current wrapping angle
Base paper temperature:Test the temperature of the processed paper
Automatic angle wrapping:After turning on this switch, the Wrapping angle will automatically adjust according to the working speed.
Parameter setting → Automatic corner setting → Set the wrapping angle corresponding to different speeds
