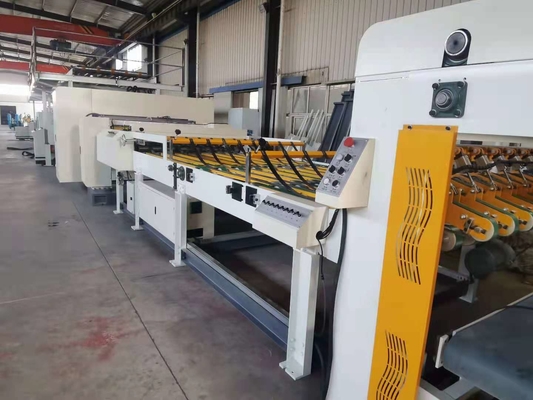

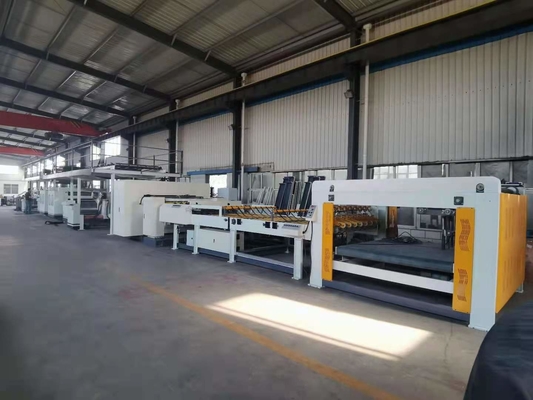

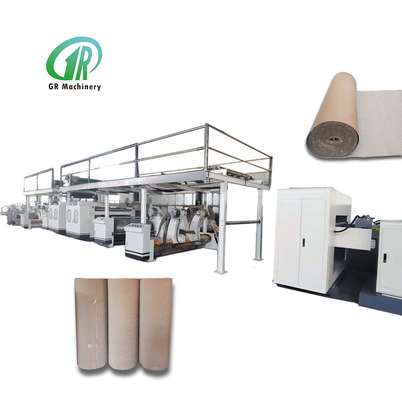

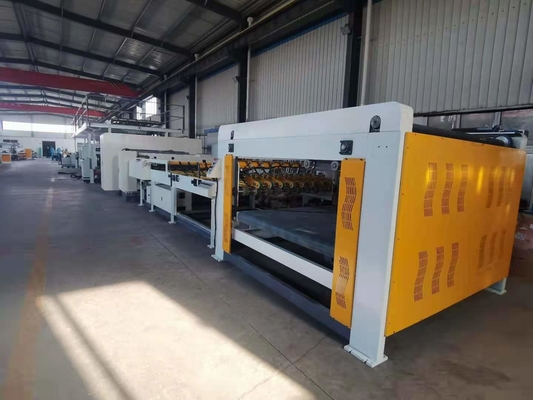

2 Ply Corrugated Cardboard Production Line
1. Store 200 groups of orders, the man-machine interface, the screen displays information can be found at any time, modify, append, cancel.
2. Germany KEB servo motor drive controller, high-performance synchronous servo motor drive.
3. Cutting Machine adopts inlaid front steel blade structure, hardened gear grinding backlash-free transmission, high precision and long life.
4. Host wall of gray cast iron, rigidity, vibration resistance.
5. stacking adopt gantry platform lifting, Reach a certain number of right-angle transverse,Three sections of the paper,Some hair design paper roll straight bend output,Second overlapping fixed-length buffer,three part points Pneumatic separate ,Accelerated export cardboard.Improve working efficiency. The maximum length of stacked is 1.6 meters .This machine is suitable for efficient production color printing business.
6. Full servo motor control, change order fast, for a single time 1-3 seconds.
7. Using thin tungsten alloy steel knife,blade sharp,the using life is more than 8000000 meters.
8. Computer-controlled,automatic or manual knife sharpener can be divided trimming knife edge, increase productivity.
9. Imported synchronous drive system, precision accurate, long life, low operating noise.
10. From high-quality imported industrial computers and high-performance programmable controller configuration, lower computer control system.
| The maximum working width |
2200 mm |
| Operation direction |
left or right(Determined in accordance with customer plant) |
| The maximum mechanical speed |
180 m/min |
| Mechanical configuration |
Computer spiral knife crosscutting |
| Cutting length |
300~1600 mm |
| Minimum slitting width |
180 mm |
| Precision Cutter |
±1 mm(Uniform)
±1.5 mm(Non-uniform)
|
| Cross on the knife shaft diameter |
200 mm 156 mm |
| Groups |
200 blades
|
1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.
2. Transportation and various types of weather conditions. A full set of maintenance and operation.
3. Manuals is included.
1.We provide whole establish new factory solution,give customer a comprehensive design plant idea, consider the target customer market. We own a great team,engineer service to oversea country is available.
2 We provide loan to below business situation:
1) Use first.
2) Payer later.
3) Special service.
We can provide financial support for your project.
Mutual trust is the foundation of our business.
3 After-Sales Service
1) Engineers available to service machinery overseas.(including installation,debugging,training etc.
2) Whole machine main parts guarantee for 1 year.
3) 25 years experience,reply within 12 hours,provide solve solution within 24 hour.
