Carton Sheet 5 Ply Corrugated Cardboard Production Line C Flute

1 sets
MOQ
To be negotiated
Price
Carton Sheet 5 Ply Corrugated Cardboard Production Line C Flute
Features Gallery Product Description Request A Quote
Features
Specifications
Keywords: Corrugated Sheet Making Machine
Speed: 100-250m/min
Warranty: One Year
Product Type: Fully Automatic 5 Ply Corrugated Cardboard Production Line Carton Packaging Machine
Automatic Grade: Automatic
Usage: Making Carton,Paper Corrugation
Function: Cardboard Making Production Line,to Produce The Corrugated Paperboard,Make Corrugated Cardboard From Craft Paper
Name: Carton Sheet 5 Ply Corrugated Cardboard Production Line C Flute
Highlight:

carton sheet corrugated cardboard production line

,

5ply corrugated cardboard production line

,

c flute corrugated paperboard production line

Basic Infomation
Place of Origin: Hebei province,China
Brand Name: IPACK
Certification: CE,ISO
Model Number: 2000mm
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 30-60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 sets/month
Product Description

Corrugated Cardboard Carton Sheet Production Line Manufacturer Machine Price

Introduction

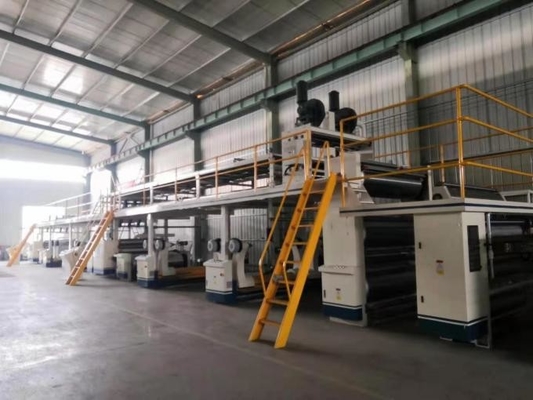

Carton Sheet 5 Ply Corrugated Cardboard Production Line C Flute 0


Parameter name Parameter Unit
Working width 1800-2200 Millimeter
Maximum mechanical Speed 250

M/min
Meter/min

Slitter knife quantity 5/6 Knife
Minimum slitter width 250 Millimeter
Arrange knife time <10 Second
Stack paperboard length 400~1400 Millimeter
Arrange knife precision ±0.5 Millimeter
Stack height 300 Millimeter
Cut off precision ±1.0 Millimeter








* Clamping paper roll, moving right-left, arms up-down and paper roll rotation is hydraulic operated.
* Support two paper rollers in the meantime, one is working, and another is for spare part.
* Adopts “Spring clutch”.
* Paper tension controlled by pneumatically operated disc brake, setting the tension easily.

* Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
* corrugating roller: Dia.280mm with a drum.
*Press roller: Dia.320mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance
* Gluing roller: surface is embossed with netting design and chrome plated.
* Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
* With preheating and preconditioning rollers.





Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.

3
Our Services




Q: 2. What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

Q: 3. How does your factory do regarding quality controlling?
A: (1) All raw material we used are environmental-friendly.
(2) Skillful workers care every details in handling the producing and packing process.
(3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

Q: 4.What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

Q: 5.How about the after-sale service?
A: (1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
(2) To solve the problems with videos/pictures.
(3) One year warranty for spare parts change.
