Durable Double Servo Semi Automatic Carton Box Stitching Machine 600 Nails Per Minute Corrugated Box Stitcher

1 sets
MOQ
To be negotiated
Price
Durable Double Servo Semi Automatic Carton Box Stitching Machine 600 Nails Per Minute Corrugated Box Stitcher
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Warranty: 1 Year
Type: Semi Automatic
Condition: New
After-sales Service Provided: Online Support,Video Technical Support
Usage: Box Stitching
Color: Gray,Black
Voltage: 220/380/415 V
Driven Type: Electric
Highlight:

Double Servo Carton Box Stitching Machine

,

Semi Automatic Corrugated Box Stitcher

,

600 Nails Per Minute Carton Stitcher
Basic Infomation
Place of Origin: Hebei,China
Brand Name: GR
Certification: CE,ISO
Model Number: BDJ-2000B
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 40 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20 sets/month
Product Description
Product Overview
High Speed Semi-Auto Stitching Machine Double Servo BDJ-2000B

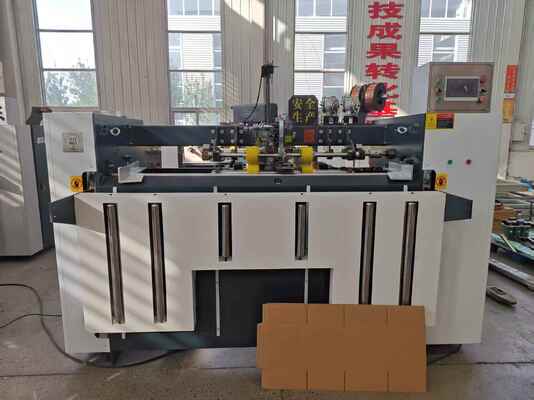

BDJ-2000B high speed semi-auto carton box stitching machine front view showing control panel and feeding table

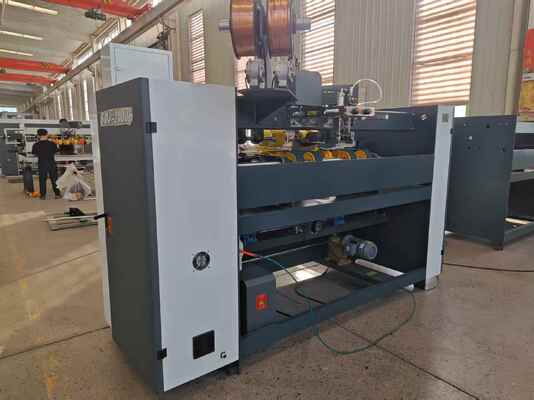

BDJ-2000B double servo stitching machine side view displaying mechanical structure and wire feed system
BDJ-2000B High Speed Semi-Auto Stitching Machine Double Servo
  • Double servo motor adopts Schneider brand from France, providing high precision with fewer mechanical drive parts to reduce failure rate.
  • Touch screen uses WEINVIEW brand for convenient and efficient parameter adjustments including staple distance, staple count, staple type, and back shield settings.
  • Complete control system utilizes OMRON PLC control system.
  • Back motor-driven baffle uses stepper motor drive for accurate sizing and easy size changes.
  • All contactors in control cabinet are German brand components.
  • Bottom die and blade are made of Japanese tungsten steel for wear resistance.
  • Complete nail head uses special steel with CNC precision machining.
  • Capable of single staple, double staples, and strengthened staples (two ends double staples with center single staple) completed in one operation.
  • Quick size change capability — carton box size and staple distance adjustments take only one minute.
  • Can stitch with or without cover carton boxes (special configuration required for no-cover stitching).
  • Front end feeding department features automatic counting with photoelectric sensors in feeding table.
  • Back part includes automatic counting function with finished products sent to machinery end as set for convenient banding.
  • Mechanical speed: 600 nails/minute.
  • Staple distance: 30–120 mm, adjustable arbitrarily.
  • Automatic paper-press wheel space adjustment.
  • Effective working table height: 900 mm.
  • Overall dimensions: 2.8 m × 1.7 m × 1.8 m.
  • Machine weight: 2 tons.
  • Automatic feed wire system with 20 kg capacity saves time.
  • Front and back double baffle enables stitching without cover carton boxes, small carton boxes, and colorful carton boxes.
  • Order adjustment capability with storage for 100 orders.
Technical Specifications
BDJ-2000B technical specifications diagram showing carton dimensions A, B, C, D and E for stitching machine
Max size (A+B)×2 3800 mm
Min size (A+B)×2 740 mm
Max size (C+D+C) 3000 mm
Min size (C+D+C) 250 mm
Min cover size C 50 mm
Max cover size C 560 mm
Max width B 760 mm
Min width B 150 mm
Max length A 1140 mm
Min length A 250 mm
Max height D 2000 mm
Min height D 100 mm
Max stitching width of E 40 mm
Max paper feeding height 900 mm
Machine width 2850 mm
Machine weight (ton) 2
Speed (times/minute) 600
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation.
  • Designed for various weather conditions during transport.
  • Includes complete set of maintenance and operation manuals.
Packaging and shipping demonstration of the BDJ-2000B stitching machine with protective wrapping
