Name: PT-A1250 High Speed Corrugated Carton Folder Gluer Machine with 300m/min Max Speed, PLC Touch Screen Control, and Independent Paper Feeding Drive
Brand: Cangzhou Gerun Machinery Co.,Ltd
SKU: PT-A1250
Price: 501.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: PT-A1250

Paper Material: Cardboard 210-800gsm, A/B/C/E/F Flute 3 Ply Corrugated Board

Max. Speed: 300m/min

Way Of Folding: First Fold And Fourth Fold Is 180°

Power Supply: Customizable

Blank Width: 1050mm

L X W X H: 14m X 2m X 1.6m

Net Weight: 5.6T

Highlight:

300m/min Max Speed Corrugated Carton Folder Gluer Machine

PLC Touch Screen Control Box Folder Gluer Machine

Independent Paper Feeding Drive Carton Folding and Gluing Machine

Basic Infomation

Place of Origin: Hebei, China

Brand Name: GERUN

Certification: ISO,CE

Model Number: PT-A1250

Payment & Shipping Terms

Packaging Details: Plastic film covering or wooden case packaging(choosed)

Delivery Time: 25-60days

Payment Terms: T/T,L/C

Supply Ability: 30set/month

Gallery

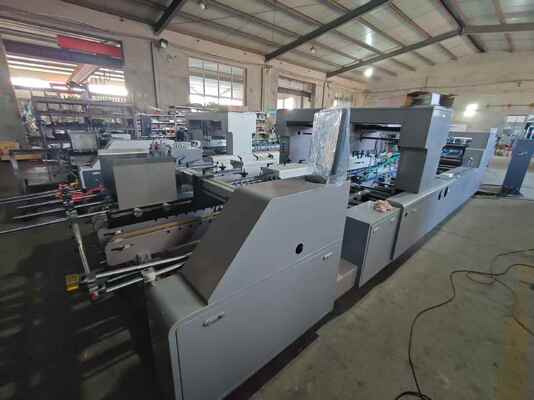

PT-A1250 High Speed Corrugated Carton Folder Gluer Machine with 300m/min Max Speed, PLC Touch Screen Control, and Independent Paper Feeding Drive

Product Description

PT-A1250 High Speed Corrugated Carton Folder Gluer Machine

Automatic single correction high speed box folder gluer featuring independent paper feeding drive and PLC touch screen control.

Machine Overview

This series of folder-gluing machines is customized according to production needs of various box types. With years of experience in packaging field, we provide professional tailor-made solutions to maximize product value.

The high-speed folder gluers feature independent paper feeding drive system, single correction system, PLC touch screen human-machine interface control system, paper feeding vibrating paper separation system, wireless remote control system, independent electric adjustment system, and 19-inch LCD monitor monitoring system.

Suitable for small packaging including cosmetics, medicines, wine boxes, CD bags, express bags, four-corner and hexagonal boxes, cardboard and micro-corrugated packaging. The automated box making process includes paper feeding, pre-folding, bottom folding, gluing, folding to collection with continuous, stable, and reliable operation.

Machine Features

Overall Equipment

Machine base made of integral steel plate with 16mm main wall panel thickness
Laser cutting technology with cold and heat treatment for excellent rigidity
Modular design with flexible function selection
Sino-foreign joint venture chain transmission for high speed and stability
Maximum speed of 220m/min with excellent stability

Paper Feeding Department

Independent motor for smooth paper feeding
3 sets of paper feed knives for various weight boxes
Multi-level track ensures cardboard verticality
Pneumatic knife lift for quick adjustment and box change
Vibration device with motor for continuous automatic feeding
Annular seamless beef tendon conveyor belt with strong wear resistance

Bottom Paste Cylinder

Left and right setup with customizable rubber wheel thickness
Stainless steel construction with finishing for durability
Precise glue amount control for high-speed operation

Folding Part

Left and right sides complete 180-degree second fold
Fourth fold 180 degrees completely combined
Differential correction system with adjustable conveyor belt speeds
Power device for speed difference between upper and lower belts
Left and right folding knives included

Pressure Transfer Part

Photoelectric counter automatic kicking paper with water spraying system
Paper stopper detection device
Freely telescopic upper and lower belts for neat stacking
Mechanical patting device to prevent scissors phenomenon

Conveying Part

12mm main wall panel with laser cutting technology
6m conveying length for extended bonding time
Pneumatic pressure regulation for uniform fit pressure
Automatic and manual mode switching
Independent modular design for various box lengths

Electrical System

PLC control with Inwitten touch screen
Multi-frequency converter for flexible control
Frequency conversion main drive motor for energy efficiency
Reasonable control panel layout with module-specific panels
19-inch LCD monitor for production process monitoring

Technical Specifications

Parameter	Specification
Model	1250
Paper Material	Cardboard 210-800gsm, A/B/C/E/F flute and 5 ply board
Max Speed	300m/min
Way of Folding	First fold and fourth fold is 180
Power Supply	3P 380V 50HZ
Blank Width	1250mm
Length x Width x Height	14×2×1.6m
Net Weight	5.6t
Total Power	11kw

Normal Box Type Configuration Specifications

Model	1250 Type
B	260-1050
D+E	130-525
A	120-1500
D min	30
C min	70

Our Company

Product Packaging

Frequently Asked Questions

Q1: How is the warranty of the machine?

Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, kindly contact us and we will reply you through product's photos and videos to make every detail clear.

Q2: How about the after-sale service?

1) Online support 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.

Q3: Is it safe on the payment for me as we are the first cooperation?

We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.

Q4: What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples. If you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
