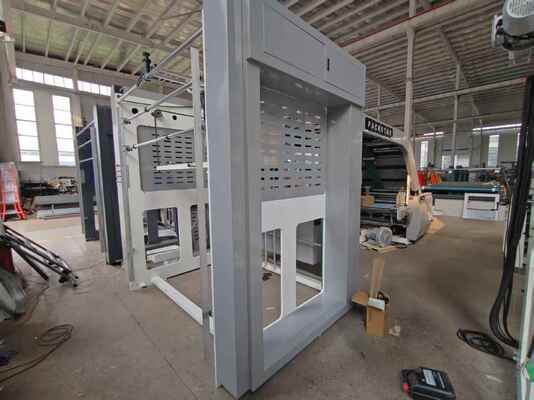

HL1600 Automatic Flute Laminating Machine with 1600X1250mm Max. Laminating Size, 5500 sheets/hour Speed, and PLC Program Control

1 set
MOQ
To be negotiated
Price
HL1600 Automatic Flute Laminating Machine with 1600X1250mm Max. Laminating Size, 5500 sheets/hour Speed, and PLC Program Control
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Power Supply: 380/220V
Bottom Paper: A、B、C、E Flute Corrugated Cardboard≥400g/m2
Machine Size: 13960 X 2250 X 2550
Total Power: 16.725KW
Min. Laminating Size: 400 X 400mm
Max. Thickness: 8mm
Working Speed: 0~5500sheets/hour
Max. Laminating Size: 1600X1250mm
Highlight:

1600X1250mm Max. Laminating Size Flute Laminating Machine

,

5500 sheets/hour Working Speed Corrugated Board Laminator

,

PLC Program Control Automatic Flute Laminator
Basic Infomation
Place of Origin: China
Brand Name: GR
Certification: CE, ISO
Model Number: HL1600
Payment & Shipping Terms
Packaging Details: Plastic,wood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Product Description
HL1600 Automatic Flute Laminating Machine
Offering consistent and smooth operation for large-scale corrugated board production lines. This advanced film laminator handles surface paper from 250 to 450 GSM in 3-ply semi-automatic operation.
Product Overview
This advanced film laminator machine utilizes PLC programming for automatic control and features an intuitive touch screen interface for efficient operation. Equipped with frequency control for smooth, precise laminating, it delivers high accuracy and reliable quality. The machine holds ISO9001 quality system certification and European CE safety certification, ensuring compliance with international standards.
As a domestically initiated product, it features multiple patents including ZL2009 2 0075540.1 and ZL2010 0 0559614.0, along with PLC control system software version 1.0 (computer software copyright registration No. 2009SR035736). The exterior features durable electrostatic powder coating that meets environmental standards while providing an attractive appearance.
Key Features
  • Automatic paper feeder for surface paper with conveyor transfer to front lay for static positioning
  • Photoelectric switch detection with vortex pump-controlled suction valve for secure paper adsorption
  • Suction belt motor rotation for automatic bottom paper feeding
  • Integrated glue application department for adhesive application
  • Parallel alignment of surface and bottom papers with roller thrust opening
  • Laminating and pressure rollers for secure paper bonding
  • Flat pressing department for smooth, firm finish
Technical Specifications
Parameter Specification
Machine Size 13960 × 2250 × 2550 mm
Frequency 50/60Hz
Max. Feeding Size 1600 mm
Total Power 16.725 KW
Bottom Paper A, B, C, E Flute Corrugated Cardboard ≥ 400g/m²
Max. Thickness 8 mm
Surface Paper 250 ~ 450 g/m²
Min. Laminating Size 400 × 400 mm
Working Speed 0 ~ 5500 sheets/hour
Weight 5.45 T
Applications
The Gerun 1300 Flute Laminating Machine is designed for laminating cardboard and corrugated paper, as well as cardboard-to-cardboard lamination. It enhances finished boards by making them smarter, more attractive, and stronger.
  • Food packaging and wine boxes
  • Household electrical appliances packaging
  • Light industrial products requiring corrugated boxes
  • Printing companies requiring laminated printed sheets
  • Custom box manufacturing
  • Luxury packaging and electronic product boxes
Customization Options
The Gerun Flute Laminating Machine (Model 1300) offers flexible customization with maximum laminating size of 1100 × 1300mm and maximum feeding size of 1320mm. Powered by 380/220V supply at 50/60Hz frequency for stable operation worldwide.
Minimum Order Quantity: 1 set
Pricing: Negotiable based on requirements
Packaging: Plastic and wood materials
Delivery: 30 days
Payment: T/T
Supply Capacity: 30 sets per month
Technical Support & Services
Our comprehensive support includes installation guidance, operation training, and maintenance procedures to maximize productivity. We provide troubleshooting services, software updates, and hardware upgrades to maintain optimal performance.
Training sessions for operators and maintenance personnel cover machine features, safety protocols, and best practices. Detailed user manuals and technical documentation are supplied, with readily available spare parts and consumables to minimize downtime.
Extended maintenance contracts include routine inspections, preventive maintenance, and priority service to prolong machine lifespan and reduce unexpected breakdowns.
Packaging & Shipping
Packaging: Each unit is securely packaged with protective foam and plastic film, placed in sturdy corrugated cardboard boxes with custom foam inserts. All accessories and manuals are included and organized to prevent damage.
Shipping: Worldwide shipping options including standard ground, expedited air freight, and express courier services. Tracking information provided upon dispatch with logistics support for any shipping inquiries.
Frequently Asked Questions
What is the brand and model number of the Flute Laminating Machine?
Manufactured by Gerun, model number 1300.
Where is the Flute Laminating Machine made?
Made in China.
What certifications does the machine have?
CE and ISO certified.
What is the minimum order quantity?
Minimum order quantity is 1 set.
What are the packaging details and delivery time?
Packaged using plastic and wood materials with typical delivery time of 30 days.
What are the payment terms and supply capacity?
Payment via T/T with supply capacity of 30 sets per month.
How is the price determined?
Price is negotiable based on order quantity and specifications.
