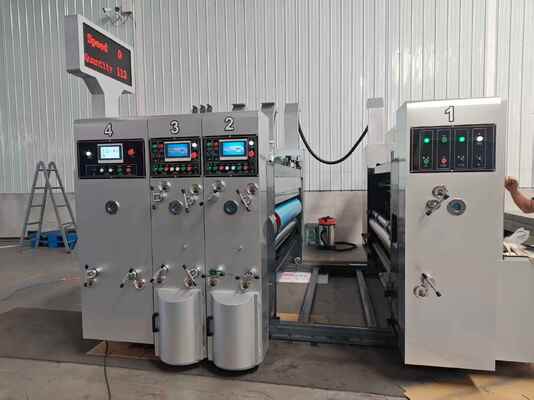

Corrugated Carton Flexo Printing Machine Equipped with Feeding System and User Friendly Interface for Packaging Print Production

The Automatic Lead Edge Feeding Flexo Printing Rotary Slotting Machine represents advanced manufacturing technology for corrugated carton production, combining precision printing, slotting, and die-cutting capabilities in a single, efficient system.

Advanced Paper Feeding Technology

• Taiwan Province leading edge paper feeding technology with bearing steel paper feeding wheel shafts
• 7-inch color touch screen HMI for communication between feeding, printing, slotting, and die-cutting sections
• Suction fan assisted paper feeding with frequency converter controllable motor for power efficiency
• Leading edge cardboard positioning reduces length error impact
• Electric adjustment for left/right stop gauges and cardboard dragging frame
• One-button positioning with safety alarm system and pneumatic interlocking
• High-quality seamless steel pipe lower rollers with dual-layer rubber coating

• Diameter: ￠295mm (including plate diameter ￠305mm)
• High-quality steel construction with hard chromium plating
• 360° electric circumferential adjustment during operation or stop
• Automatic zeroing and plate hanging position features

• High-quality seamless steel pipe with precision grinding and electroplating
• Backlash-free adjustment mechanism for transmission accuracy
• Manual micro gap adjustment with scale display (0-12mm range)

• Cantilever structure for easy installation and maintenance
• Manufactured by "Haili Roller" with mesh options: 200, 220, 250, 280 lines/inch
• Pneumatic pressing action with automatic lifting
• Optional ceramic net roller (200-400 lines/inch) available

• High-quality seamless steel tubes with Ding Qing rubber surface
• Precision CNC grinding for accuracy
• 1:200 double-stage worm gear fine adjustment

• One-way diaphragm type pneumatic ink pump with filtration
• Automatic ink quantity detection with alarm system
• Transparent ink supply pipes and storage cups

• PLC programming automation system with data input for paper product dimensions
• One-button automatic positioning with manual fine-tuning capability
• Taiwan Province Delta frequency converter motor control

• Single-shaft double-knife slotted structure with internal tooth design
• 7mm standard thickness grooving knives with alloy steel material
• Linear guide rail technology for precision slotting
• Ten-screw automatic adjustment system

• High-quality steel upper and lower shafts with dynamic balance
• Four groups of line pressing wheels to prevent cardboard crushing
• Manual gap adjustment with 2-12mm range

• Outer diameter: ￠260mm
• High-quality cast steel with surface grinding and balance correction
• 10M bolt holes with 100mm axial spacing
• Die cutter height: 25.4mm

• Diameter: < ￠295.5mm (rubber pad diameter: 311.5mm)
• Quick-change rubber pad with wear resistance
• Electric gap adjustment with air-lock mechanism
• 50mm transverse traveling device for even wear

• High-precision helical gear transmission with 20GrMnTi alloy steel
• Keyless tensioning connecting sleeve for zero-gap operation
• Automatic spray lubrication system
• "Dongli" frequency converter main motor with Taiwan Province Delta controller
• NSK imported main bearings with Wahalo domestic bearings
• Zhejiang Zhengtai or Schneider electrical components

• Moisture-proof and shock-proof packaging suitable for long-distance road transportation
• Designed for various weather conditions
• Complete set of maintenance and operation manuals included
