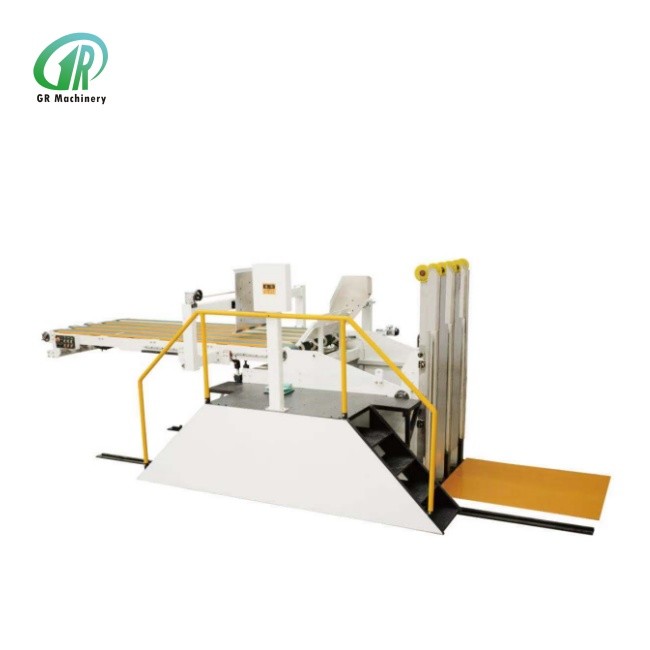

1200X2400 Automatic Corrugated Board Prefeeder

Machine features:

1.Reduce costs, improve efficiency, and reduce waste: No need for workers to operate, reduce the number of workers, effectively reduce enterprise labor costs, and reduce worker labor intensity. It can effectively increase working speed and improve work efficiency. Reducing workers' exposure to cardboard can reduce the damage caused by manual intervention.

2.Stable performance: Adopting two sets of advanced hydraulic systems, hydraulic cylinders are used for tilting, lifting, and conveying bed lifting, providing sufficient power and stability; The conveyor belt is powered by a hydraulic motor, which occupies little space, has high torque, and delivers evenly.

3.Easy to operate: button and touch screen human-machine graphical interface, PLC control, easy to identify and operate, real-time display of working status.

4.Easy to use: The machine can be used in conjunction with ground logistics, making it convenient and efficient.

5.Working method: Adopting a translational automatic paper feeding method, it can also be used for semi-automatic manual flipping paper feeding.

Main technical parameters and performance

Maximum size of cardboard: 1200 X2400 mm

Stacking height of cardboard: 1800 mm

Maximum stacking weight: 1500 Kg

Stacked columns: single column

Cardboard lifting method: hydraulic lifting fork

Flipping power: hydraulic drive

Horizontal conveyor bed lifting power: hydraulic drive

Conveyor belt power: hydraulic motor (equipped with independent hydraulic pump station to ensure smooth transportation) The side and front fenders are pneumatically aligned for calibration, and the side fenders are electrically adjusted.

Machine movement: The machine itself can move back and forth, and when the printing machine is separated, the machine automatically moves back. Maintain the height of the cardboard during work, and the lifting fork automatically pushes the cardboard up ,and down with one click.

The conveyor belt can automatically control the start and stop of cardboard according to the height of the paper feeding bin of the printing machine.

Our company

Product packaging

FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
