Name: Steam Heating Single Face Corrugated Machine 2000mm Working Width
Brand: Cangzhou Gerun Machinery Co.,Ltd
SKU: GR-ESF2000
Price: 76.00 USD
Availability: InStock

Steam Heating Single Face Corrugated Machine 2000mm Working Width

MOQ

USD2,000~150,000/set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Category: Corrugated Cardboard Production Line

Working Width: 1400 Mm,1600mm,1800mm,2000mm

Operating Direction: Left Or Right (customizable)

Design Speed: 120millimeter/minute

Temperature Range: 120~180℃

Gas Source: 0.8~1.3 MPa

Heating Type: Steam Heating

Highlight:

Steam Heating Single Face Corrugated Machine

2000mm Single Face Corrugated Machine

2000mm single face paper corrugation machine

Basic Infomation

Place of Origin: Cangzhou，China

Brand Name: GERUN

Certification: ISO,CE

Model Number: GR-ESF2000

Payment & Shipping Terms

Packaging Details: Plastic film covering or wooden case packaging(choosed)

Delivery Time: 15~60 work days

Payment Terms: T/T, D/P, D/A, MoneyGram, Western Union, L/C

Supply Ability: 30set/month

Gallery

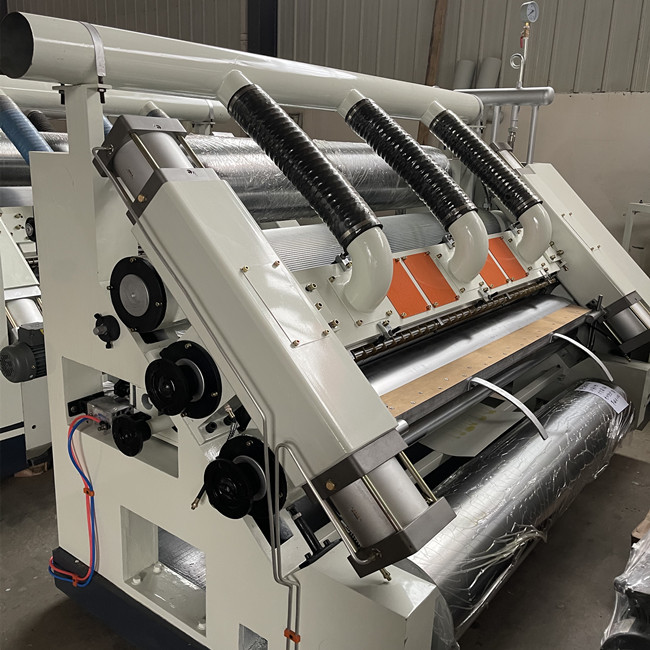

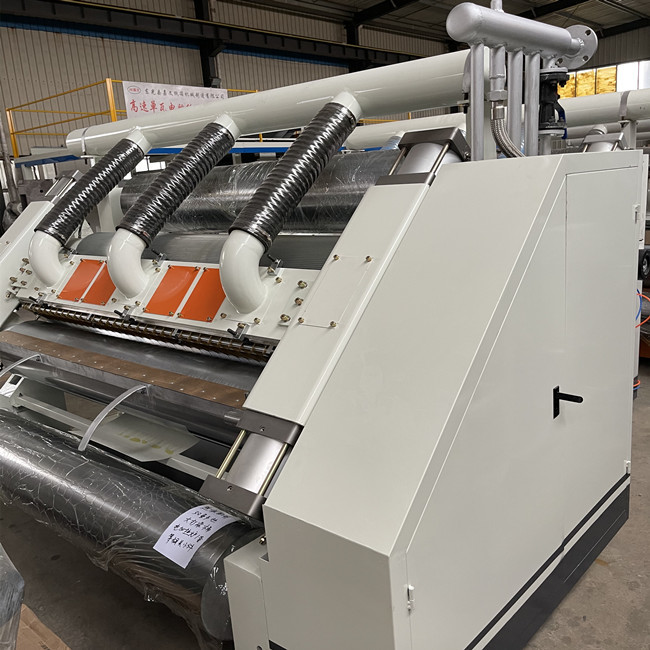

Steam Heating Single Face Corrugated Machine 2000mm Working Width

Product Description

Single Face Machine / Single Face Production Line

Product Description:

1.Working width: 1400 mm,1600mm,1800mm,2000mm,2200mm
2.Operating direction: left or right (determined according to the customer's factory)
3.Design speed: 120m/min
4.temperature range: 120-180℃
5.Gas source: 0.8-1.3 MPa
6.Heating method: steam heating

Diameter parameter of roller:

1.Diameter of corrugated roller:-￠320mm
2.diameter of pressure roller:-320mm.
3.Diameter of coating roller: < 216 mm
4.diameter of preheater: < 320 mm.

Parameters of power motor:

1. main drive motor: 11KW rated voltage: 380V 50Hz continuous (S1) working mode
2. Suction motor: 11KW rated voltage: 380V 50Hz continuous (S1) working mode

Steam Heating Single Face Corrugated Machine 2000mm Working Width 0

Technical Parameter:

Product name	2000mm Electric SingleFacer Machine
Category	Corrugated Cardboard Production Line
Working width	1400 mm,1600mm,1800mm,2000mm
Operating direction	left or right (customizable)
Design speed	120millimeter/minute
Temperature range	120~180℃
Gas source	0.8~1.3 MPa
Heating type	Steam heating
